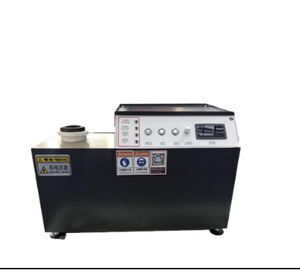

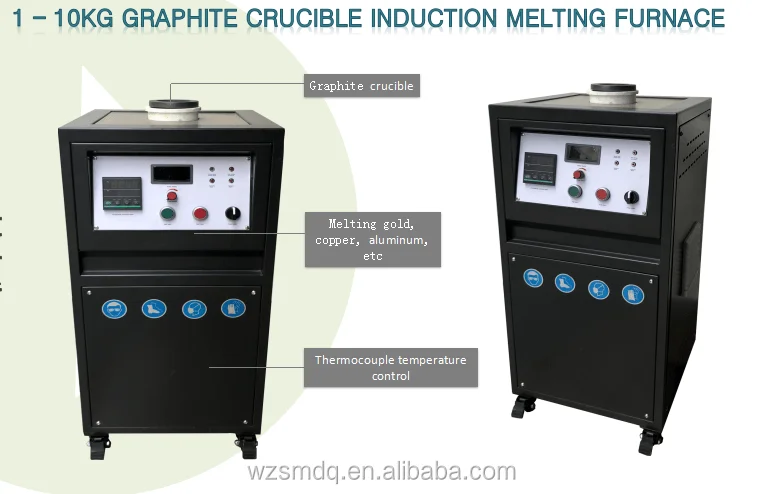

1kg,2kg,3kg,5kg,8kg 10kg Small electric furnace for melting gold, platinum, silver, copper, steel, iron
-
Supplier: Wenzhou Shuangming Electrical Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms mandy ye -
Price: $950.00 /set -
Min. Order: 1 set
| Melting Time: | 3 min; | Melting Capacity: | 1-10kg; |
| Port: | anyport In China; | Dimension(L*W*H): | 400*400*900; |
| Cooling method: | built-in water-pump; | Duty cycle: | 24h with full load; |
| Voltage: | 3P/380V/50-60HZ; | Type: | Induction Furnace; |
| Max. Tenperature: | 1600-2000c; | Applicable Industries: | Manufacturing Plant,Construction works ,Energy & Mining,Metallurgical Industry; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Warranty: | 12 Months; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Usage: | Melting Furnace; |
| Certification: | CE; | Place of Origin: | Zhejiang China; |
| Brand Name: | SMKJ Gold melting furnace; | Packaging Detail: | Standard export packing in plywood cartons, for proper protection during the transportation.; |
| Power (kW): | 15; | Weight (T): | 0.05 T; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | CE; |
| Suitable Metal: | Gold,Platinum,stainles steel; | Supply Ability: | 100 Set/Sets per Month; |
| Condition: | New; | Crucible: | Graphite or Quartz crucible; |
| Structure Type: | Structure Type; |
CDOCAST Precious metal melting furnace is absolutely inventive design furnaces which is designed with the aim of offering effective melting action on precious metals like platinum, gold, palladium or alloys of these metals. Our small metal melting machine can achieve temperature of 2500 degree within 5 minutes, the Melting crucible can be designed as graphite or quartz crucible depend on different raw material
Small furnace for melting gold, platinum, silver, copper, steel, iron
This gold melting machine is designed for 1-8kg. which is suitable for melting precious metal like gold,silver,copper,zinc.etc. With speedy melting time could be realized within 3-5min. When melting process is done, you just need to pick up the crucible with the crucible tong and pour the molten liquid into the mould.
Please link our website:
http://www.cdoinduction.com/gold-melting-furnace/
to get more useful information
Skype : mandymeina
Cell phone : 0086-15168765707
Please do not hesitate to contact us !!!
| Modelnumber | HS-26FL | HS-27FL | HS-28FL | HS-29FL |
| Applicable metal | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys | Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Voltage | 380 V | 380 V | 380 V | 380 V |
| Power | 15 kw | 12 kw | 10 kw | 8 kw |
| Weight | 60 kg | 46 kg | 46 kg | 46 kg |
| Max capacity | Gold: 10-15 kg | Gold: 8-10 kg | Gold: 6-8 kg | Gold: 1-4 kg |
| Melting time | 3-5 min | 3-5 min | 3-5 min | 3-5 min |
| Dimension | 50*50*100cm | 50*50*100cm | 40*40*90cm | 40*40*90cm |
| Max temperature | 1800℃ | 1800℃ | 1600℃ | 1600℃ |
| Temperature control k-type | Optional | Optional | Optional | Optional |
| Water pump | Equipped | Equipped | Equipped | Equipped |
1. What is your advantage to compared to others?
First, we provided turnkey solution ,Cost-effective,highly efficient, durable and easy-to operate machine is what we deliver.
Second, we have Strict Quality Control System,Before Being dispatched from our factory all of our equipment will undergo a series of strict test,including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By Dhl.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
-
