Raymond mill for powder/gypsum powder line/gypsum powder machine

Product details
Supply Ability:100 Set/Sets per Year;Packaging Detail:Standard export container, bare main machine, motors and small parts are packed in wooden case.;
Condition:New;Port:Shanghai,Tianjin,Qingdao port;
Advantage with us:Expert Manufaturer in Raymond Mill design with 57 years experience;Suitable material with raymond mill:fluorite/lime/activated clay/carbon, bentonite, kaolin, cement;
Raw material:phosphate rock ,gypsum, glass, bluestone, petroleum coke;Color:at your request;
Warranty:1 Year;Design:1st class quality steel make extraordinary roller;
Installation:Professional Engineers Assigned;Certification:ISO CE;
Automatic Grade:Automatic;Features:Advacend Technology;
Application:Mineral Industry, high finess mineral powder grinding;Power(W):see to technical parameter;
Voltage:380V;Materials:barite, calcite, potassium feldspar, talc, marble, limestone, dolomite;
Payment Terms:L/C,T/T;Application:Building Material;
Dimension(L*W*H):according to model;Spare parts supply:Anytime;
After-sales Service Provided:No after-sales service,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Weight:according to model;
Place of Origin:Henan China;Brand Name:ZD;
Discharge size:Optional Range:0.010mm~0.25mm;
Product Description

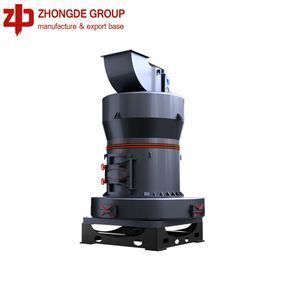

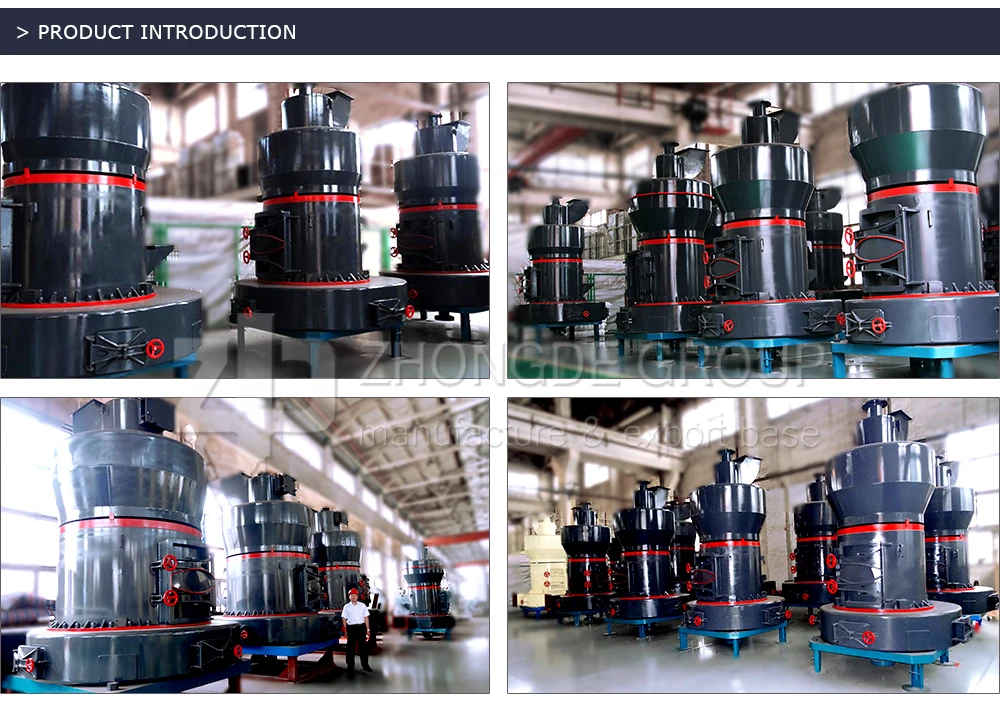

Raymond Mill/gypsum powder line/gypsum powder machine

Raymond mill is a common use grinding equipment, it is mainly applicable for high fine milling of non-flammable and non-combustible chemical materials in mining, chemical, construction industry whose Moh’s hardness is under 9.3 and humidity is under 6%.

Technical Parameters of Raymond Mill



Model45254119
Feeding Size(mm)≤30≤25
Szie of Finished Product(mm)0.173-0.0440.173-0.044
Shift Output of Different Material Finesee(t)16-1768-78
Rotate Speed of Central Shaft(r/min)82105
Diameter of Pulverizing Ring(mm)17701400
Diameter of Pulverizing Roller(mm)450410
Height of Pulverizing Roller(mm)250190
Main MotorY315M-4-132Y280S-4-75
Fan MotorY315M-4-132Y280S-4-75
Analyzer MotorYCT250-4A-18.5YCT200-4B-7.5

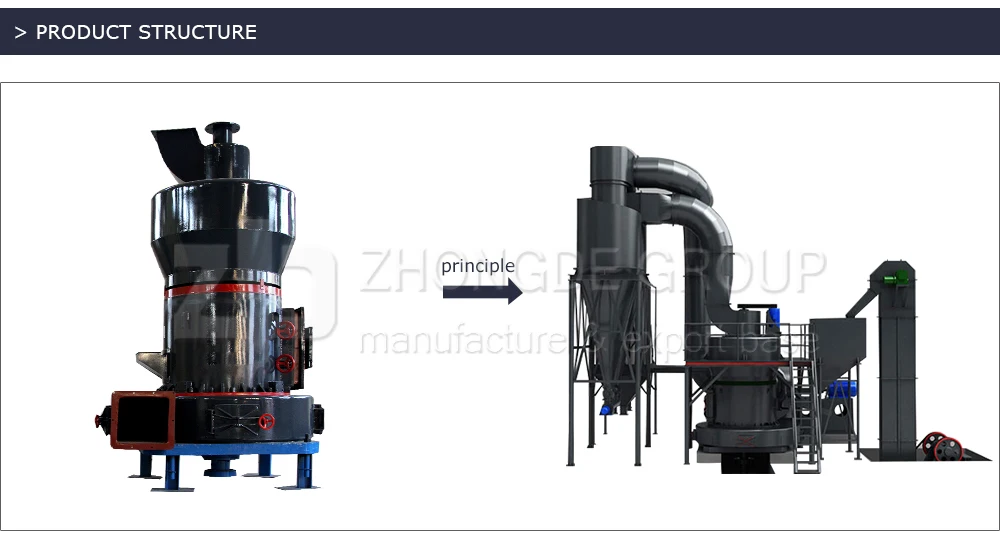

Working Principle of Raymond Mill

The grind roller rolls on the grind ring under the effect of centrifugal force, the materials scooped up by the relieving tool are sent in the middle of roller and ring, they will be ground into fine powder under the effect of ground pressure, and then send the powder like materials into the analytical engine. The materials whose fineness meets the requirements will pass the engine, while those whose are not meet the requirements will be back to the grinding chamber being ground.

Features of Raymond Mill

  • The Raymond mill has a stereochemical structure, which needs small floor space.
  • Uniform fineness of final products, 99% screening rate.
  • The main engine of the mill drives smoothly and stably because the transmission gear adopts sealed gear case and belt wheel.
  • The main parts of the Raymond mill are made of high quality rolled steel, the wear-resistant parts adopt high-performance wear-resistant materials, so it has high wear-resistant property.
  • Easy maintenance.

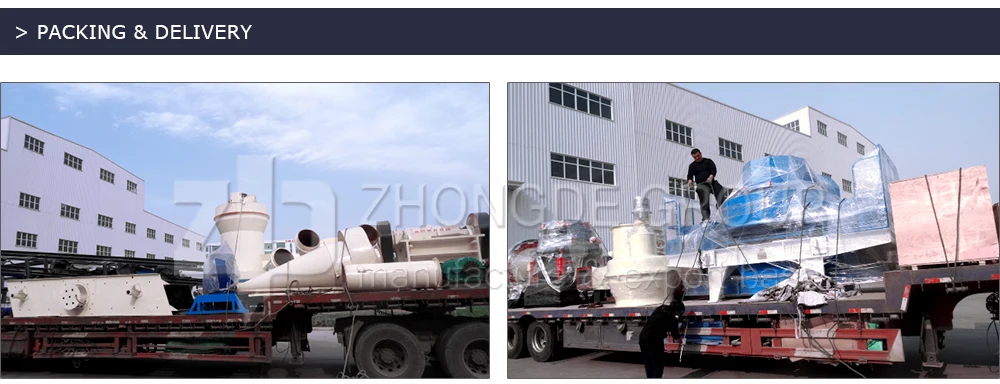

Packaging & Shipping

The raymond mill will start delivery in 30 days after payment. It will be packed in export standard container, it's main motor and spare parts will be put in the sealed and water-proof wooden case.

We promise the raymond mill will be shipped to you timely and safely.

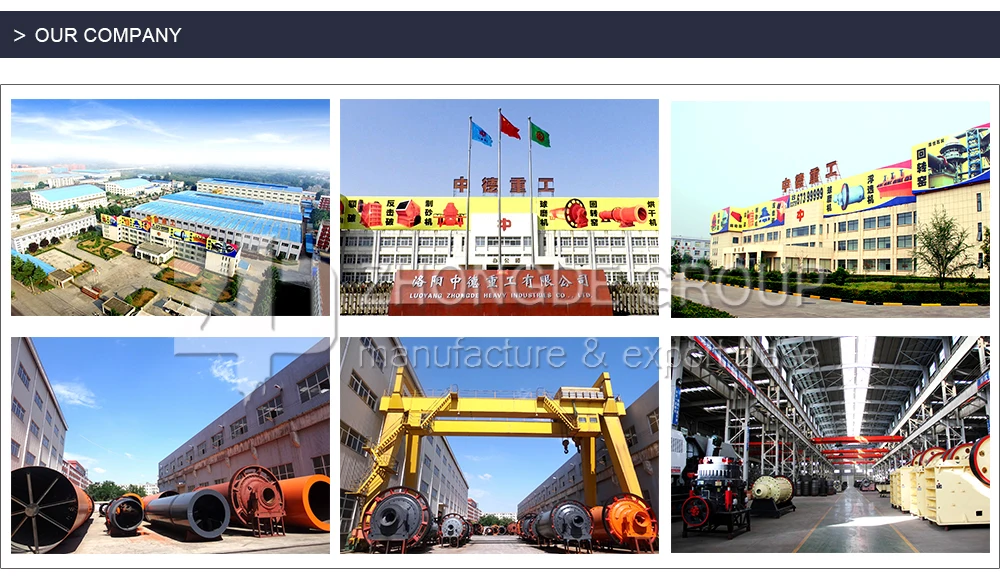

Company Information

Luoyang Zhongde Heavy Industries Co.,Ltd. was found in 1959, formerly known as Luoyang Mining Machinery Cement Factory, has made great contribution to China’s economic development over the 50s years. It took the lead to restructuring to joint-stock enterprise in 1995, which led itself to get rapid growth, it began to settle in the modern industrial plant in Luoxin Industrial Area from the former factory in 2006.

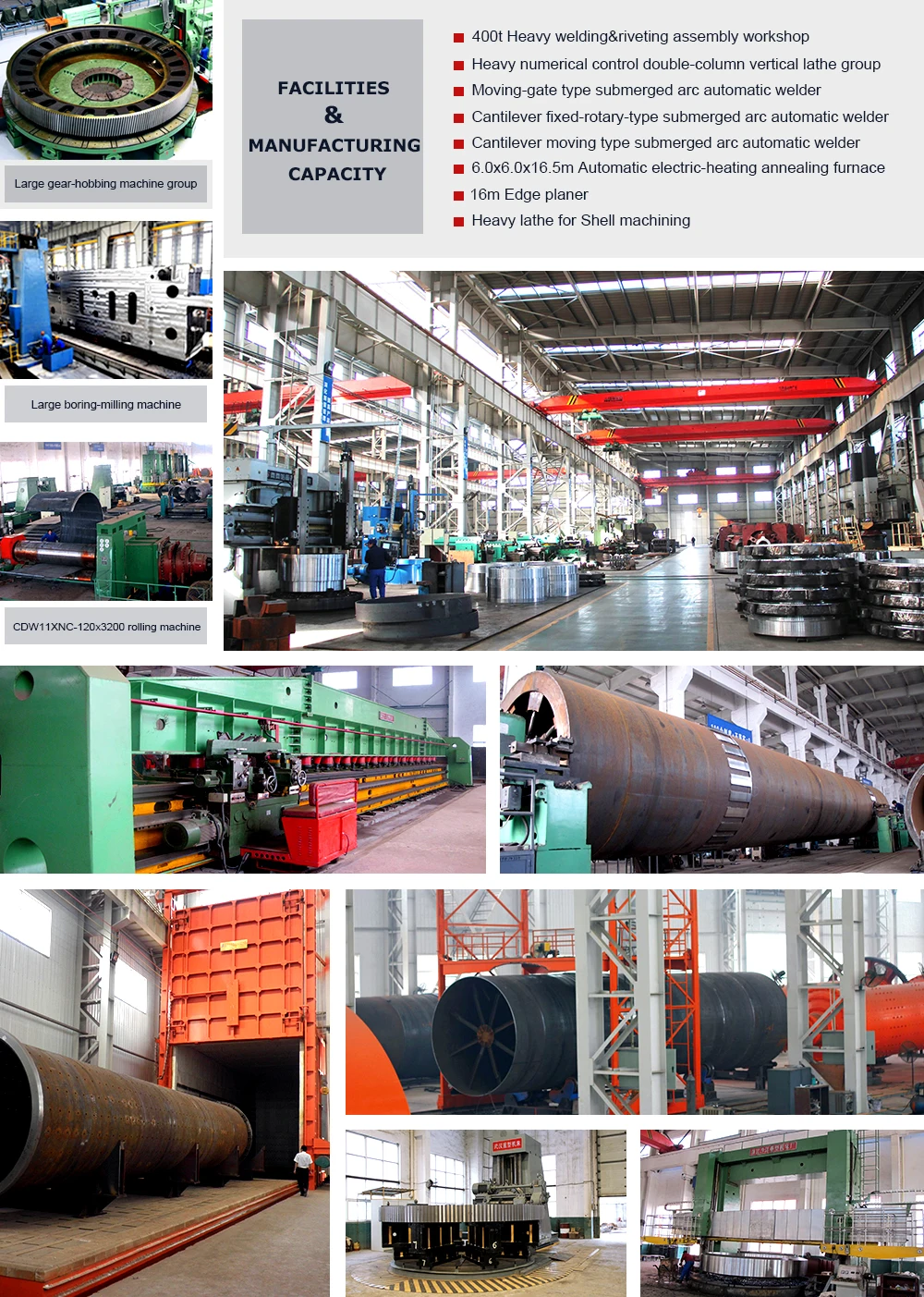

Zhongde is China’s mining machine export base, covering an area of 98,000 square meters, with 62,000 square meters of modern heavy industrial plant and 2,800 well-trained staffs.



We are top 10 of China’s most professional mining machine manufacturer.

We provide customers with products of high quality and reasonable price, advanced technology, warmhearted pre-sale and after-sale services.

We have customers and cooperative partners all over the world,they are mainly from Asia, Africa, Europe, South & North America.

We provide our customers with a whole set of services:

  • Pre-sale service

Provide you with project and process design, formulate the plan for purchasing, design and manufacture the products according to your special requirements and train your operators.

  • Selling service

Help you to check the equipments before acceptance, draw up the construction scheme and the detailed process.

  • After-sale service

Dispatch our technicians to your construction site to guide the installation, test the site and train your operators.

Contact us

Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price.

If you need raymond mill or have any interest in it, wirte your requirements in textbox here as belows ⇓⇓⇓
