Delivery fast Thrust ball bearing

Click here to contact
Product details
Type:Ball;Hardness:HRC58-64;
Sample:available;Certificate:ISO9001:2008;
Place of Origin:Shandong China (Mainland);Service:OEM Service;
Packaging Detail:A.tube package + outer carton + pallets B.single box + outer carton + pallets C.tube package + middle box + outer carton + pallets D.According to your request.;Outside Diameter:24 - 300 mm;
Brand Name:ZYSL;Package:Box;
Bore Size:10 - 150 mm;Lubricated:Oil Grease;
Model Number:52202;Precision Rating:P0 P6 P5 P4 P2;
Payment Terms:T/T,Western Union;Supply Ability:1000000 Set/Sets per Month;
Material:Chrome Steel Stainless steel;Port:Guangzhou Shenzhen;
Stock:rich;Name:Thrust ball bearing;
Seals Type:Open;Number of Row:Single Row;
Feature:Long Life;Structure:Thrust;

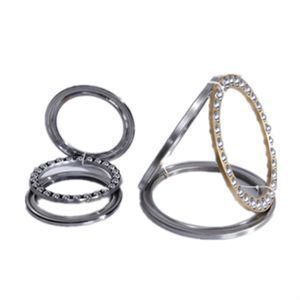

Thrust ball bearing





Discription of Thrust Ball Bearings:



Thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

Thrust ball bearings are separable, the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.



Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.

Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.



Specifications

1. Thrust ball bearing Equipped with one-way, two-way two types



 2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.



3. High quality steel - used can extend bearing life highest 80% super clean steel



4. The height of the grease technology - lubricants technology can make the life of the grease to extend and improve the performance of the bearing



5. The high grade ball - quiet and smooth when high-speed rotation



6. Use of options in the ring, can allow installation error.



Models



Model

DIA (mm)

Weight (kg)



d

d1

D

H

52202

15

10

32

26

0.085

52204

20

15

40

26

0.144

52205

25

20

47

28

0.23

52206

30

25

52

29

0.26

52207

35

30

62

34

0.405

52208

40

30

68

36

0.54

52209

45

35

73

37

0.64

52210

50

40

78

39

0.71

52211

55

45

90

45

1.12

52212

60

50

95

46

1.15

52213

65

55

100

47

1.36

52214

70

55

105

47

1.52

52215

75

60

110

47

1.6

52216

80

64

115

48

1.73

52217

85

70

125

55

2.22

52218

90

75

135

62

3.14

52220

100

85

150

67

4.2



PS:This is part model number of bearings we have, if you are fail to find the one you need, please contact us directly.



Application of thrust ball bearing:



1.Thrust Ball Bearings should use close to the radial bearing,

  in order to prevent the effect of shafts deflection.



2.When using big size ball bearings on a horizontal shaft, preload should be implemented to

 prevent the clearance between housing washer and balls.



3.Under the inevitable circumstances of shaft deflection and misalignment,

aligning seat washer should be applied.

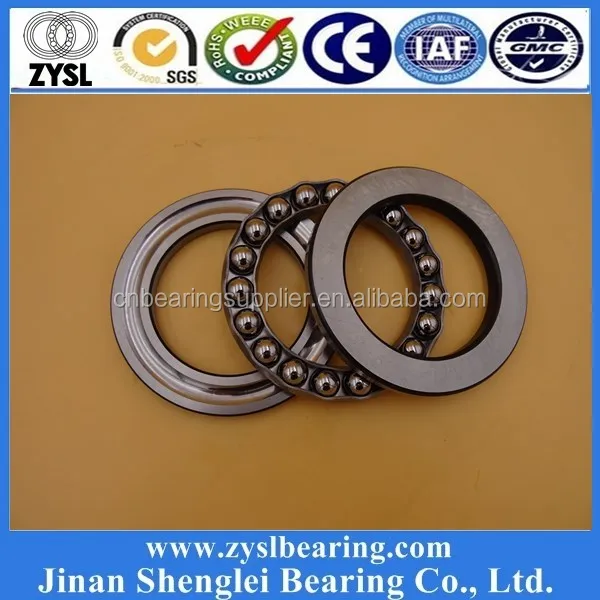

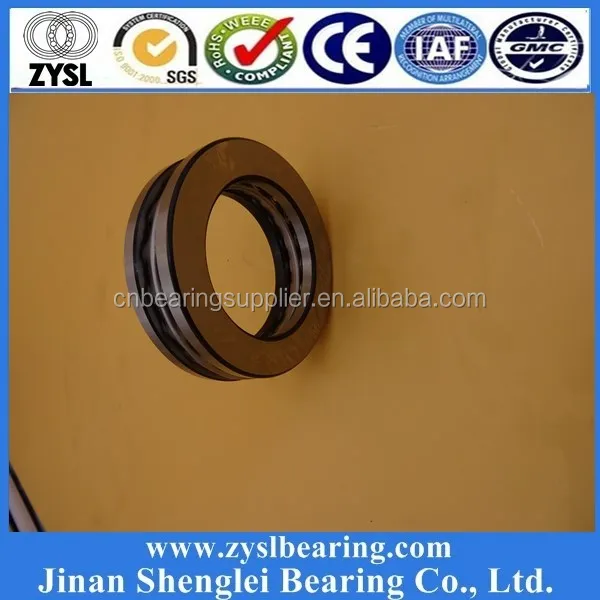

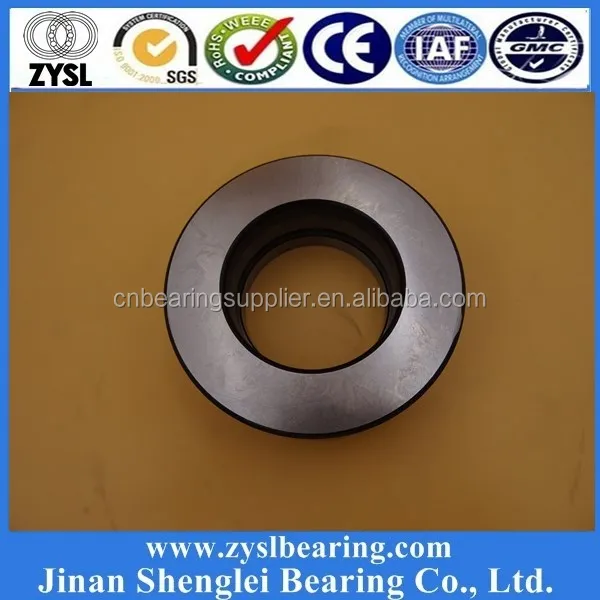

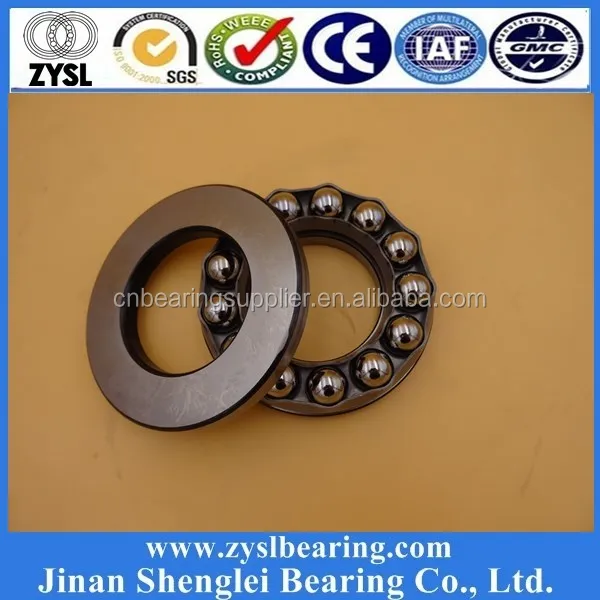

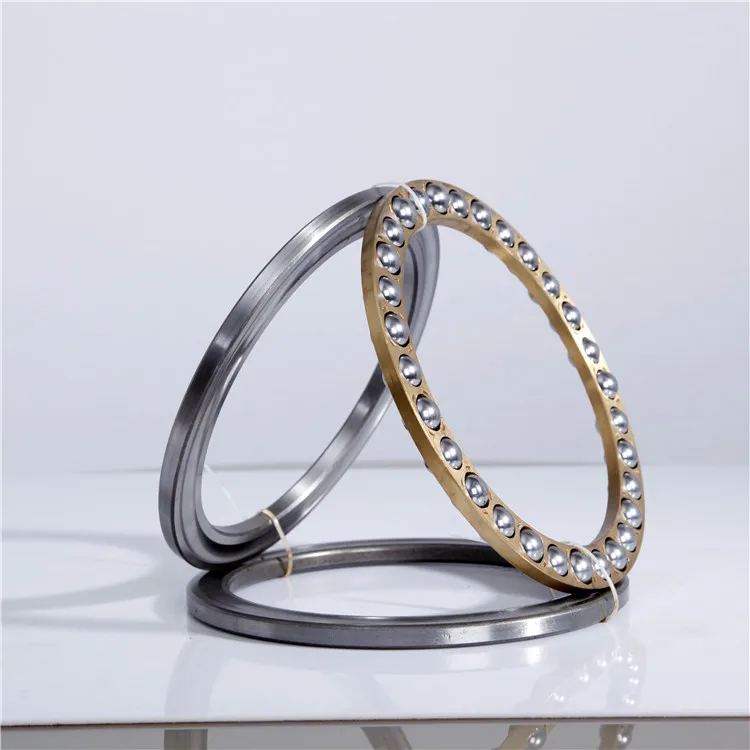

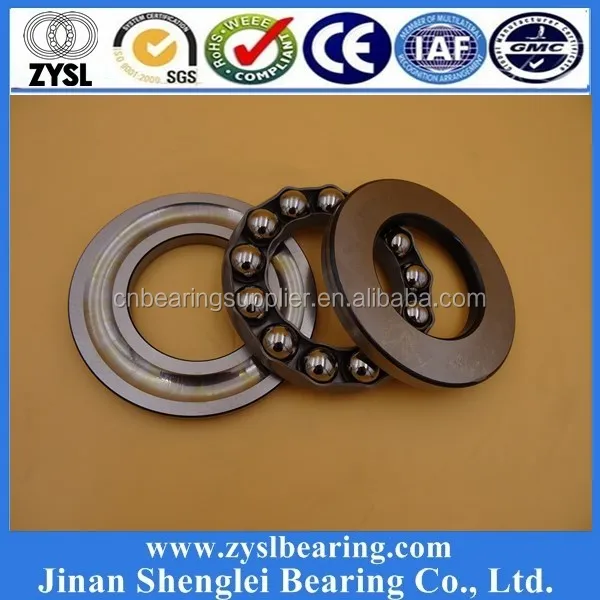

Pictures:





Packaging & Shipping

MOQ IS ONE PIECE



TERMS OF PAYMEMT: T/T



SAMPLE AVAILABLE



PACKING: CARTON OR WOODEN BOX OR ACCORING TO CUSTOMER REQUIREMENT



SHIPMENT: Logistics forwarder or Express service, according to quantity



Delivery time: 3-15 days according to quantity required



Quality: Export standard



Price term: FOB





payment terms



A.100%T/T

B.50% T/T in advance .50% against photo of goods

C.Western union

D.Paypal

E.Offical Bank Account

Package



A.tube package + outer carton + pallets



B.single box + outer carton + pallets



C.tube package + middle box + outer carton + pallets



D.According to your request.



Our Services

1.Customers' requirements are fully understood with abundant records made so that and customers' time can be saved.
2.We pay close attention to customers' drawings, submit them to our technicians and make correct replies.
3.We hunt for the most economical delivery service to reduce customers' cost.
4.We report the condition of production at any time to the customers.
5.After-sales service is reliable and customers' feedbacks are considered seriously.
6.The latest market trend is always provided for our customers.
Company Information

Jinan Shenglei bearing Co., Ltd. has established a professional sales network to help customers get products information at the first time. we are supplier and manufacturer from jinan shangdong China , We integrate R&D,production and export of bearings. We constantly strive for research and innovation development, adhere to the concept of "survival of high quality", and provide excellent service for customers. Our employees receive professional training. The annual production capability is more than 960 million units. Our company has strong technical strength, excellent processing equipment and complete testing equipment to ensure quality of bearings.





Certification:



FAQ

1. How long is your delivery term?



Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.



2. Where is your port of shipment located?



Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.



3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?



Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.



4. Is optional lubrication provided?



We can offer a wide range of oils and greases for a variety of applications. Please contact our engineer for technical assistance with any special requirements.



5. What is the difference between using a shield or a seal as a ball bearing closure?



Shields or seals are often installed to retain lubricant and to prevent contamination from entering the bearing. While a shield contacts the outer ring and does not come in contact with the inner ring, the seal generally comes in contact with both the inner and outer rings. Torque or drag is lower with a shield than with a seal. Alternately, the seal provides a higher degree of protection from contamination. Shields and seals are available in a variety of materials and configurations.


Why us



1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
