Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

Supplier: Besen International Group (Nanjing) Trading Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lemon Wu
Price: $72.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Besen;	Charging Mode:	Mode 3 ev charging cable;
Cable Color:	Black / Orange / Green / Blue;	Place of Origin:	Jiangsu China;
Protection Grade:	IP66;	Certifications:	CE, TUV(Rheinland);
Cable length:	3m, 5m, 7m, 10m;	Packaging Detail:	Carton Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock;
Insulation resistance:	1000MΩ;	Port:	Shanghai;
Connector Standard:	Type 1 to Type 2 connector;	Warranty Period:	2 Years;
Supply Ability:	5000 Piece/Pieces per Month;	Keyword:	Type1 to Type2 EV Charging Cable;
Plug Standard:	IEC 62196-2 to SAE J1772;	Model Number:	CHC008;
Payment Terms:	L/C,T/T,Paypal;

Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

Cord lenght: 3m, 5m or customized

Meet IEC 62196-2 (Mennekes, Type 2) EU European standard

Meet SAE J1772 2009 (Type 1) North American standard

Nice shape and easy to use, protection class IP54(in mated conditions)

Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

Apply to Vehicle

For Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia Electric Van,for Mitsubishi-I Miev,for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence,for Renault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera...

Product Description

Parameters ( 32Amp type1 to type2 ev charging cable )

Model: BS-CHC008

Reted current: 32A

Working voltage: 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved

Charging Cable Spec

TUV 3*6.0mm2+2*0.5mm2

Cord lenght: 3m, 5m or customized

Orange or Black

Materials

Shell Material: Thermo Plastic

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

Insert Arrangements & Functional Definition of type1 to type2 ev charging cable :

Mark	Functional defination
1-(L1)	AC power
2-(L2)
3-(L3)
4-(N)	Netural
5-(PE)	PE
6-(CP)	Control confirmation
7-(PP)	Connection confirmation

Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

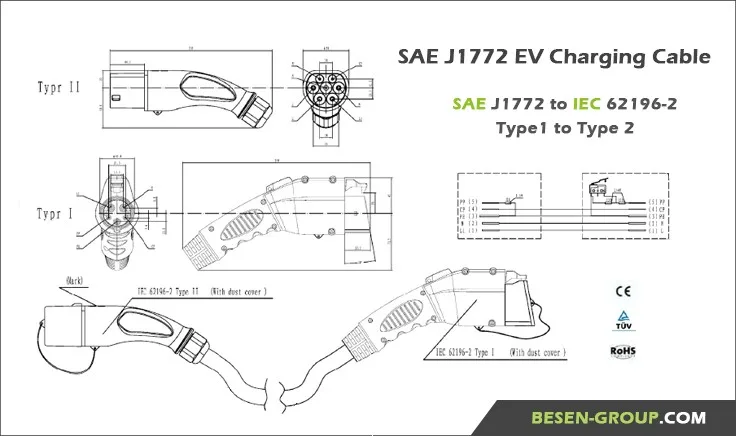

Drawing Interpretation of type1 to type2 ev charging cable :

Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

Detailed Images

We have 6-years’ experience of producing EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each customers.

We pay more attention to handle the detailed part of our products, hope to provide with our customers safety, difficult to damage and convenient operation in use.

Electric Vehicle Cable Type1 to Type2 EV Charging Cable With Lock

Here are some detailed pics about our type1 ev charging cable:
