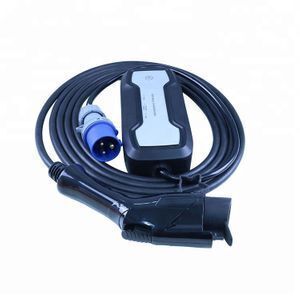

Good quality 16a portable ev charging box plug portable ev charging

Supplier: Besen International Group (Nanjing) Trading Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lemon Wu
Price: $113.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packages:	1 inner carton box;	Connectors:	Type1 to NEMA14-50;
Packaging Detail:	Carton Box Size: 504010(cm) /19.715.73.9(in) Weight: 4kg;	Brand Name:	Besen;
Packing Size:	04010(cm) /19.715.73.9(in);	Port:	Shanghai;
IP Degree:	67;	Certificate:	CE, TUV;
Place of Origin:	Jiangsu China;	Product name:	Portable EV Charger;
Payment Terms:	L/C,T/T,PayPal;	Length:	5M ( 16.4 ft );
Supply Ability:	1000 Unit/Units per Week;	Material:	ABS;
Power:	2.2/3.6KW;	Model Number:	BS-PCD020D-T1;
Weight:	4kg;

Good quality 16a portable ev charging box plug portable ev charging

Apply to Vehicle

For Audi A3 e-Tron, for Chevrolet Spark, for Mercedes B Class E-Celi, for Mercedes S500 PHEV, for Mercedes SLS EV, for Mercedes Vito E-Cell Van,for Porsche Panamera S PHEV,for Renault Zoe,for Renault Zoe 2013,Volkswagen e-Up,for Volkswagen e-Golf,for Volvo V60 PHEV...for

Product Specification

Mode 2 EV Charging Cable

Model: BS-PCD020S-T2-SCHUKO

Connector : Type 1 to SCHUKO

Certificate: TUV, CE

Current: 10/16A

Power: 2.2/3.6KW

Length: 5m (16.4ft)

Colour: Black

Cable: Straight / Coiled

Key Features

-High compatibility. It can charge all EVs with Type 2 inlets, correctly and effectively

-Easy operation. Simply connect the plug with the EV’s inlet, then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging

-Switchable currents. Customers can choose an appropriate charging current according to the demand

-High security. It has passed all tests of TUV. There are all kinds of protective measures to ensure the safety for every user

-Containing the intelligent chip. It can automatically repair minor charging problems while charging. When a fault occurs, the lights will blink in different ways to indicate different problems.

How to Use

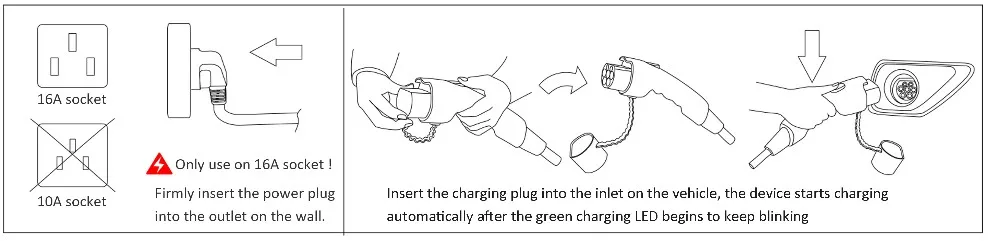

A. How to start charging

1. Firmly insert the power plug into the outlet on the wall. Ensure the outlet with a rated current of 16A

2. Insert the Type 1 plug into the inlet on the vehicle

3 The device starts charging automatically after the green charging LED begins to keep blinking

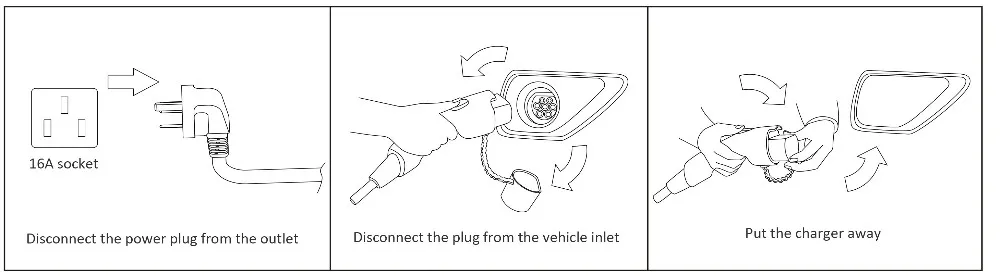

B. How to stop charging

1. Disconnect the power plug from the outlet

2. Disconnect the Type 1 plug from the vehicle inlet

3. Put the charger away

C. How to know the charging status

Working Condition	LED Display Status
Working Condition	Power (green)	Charge (green)	Fault (red)
Connected the power	ON	ON (0.5s)	ON (0.5s)
Ready for charging	ON	ON	OFF
Normal charging	ON	BLink (1s)	OFF
Charging fault	ON	OFF	ON
Charging completed	ON	OFF	OFF

Good to know

-This is a Mode 2 EV charging cable special for EVs with Type 2 inlets. Don’t use it for EVs with other types of inlet

-This cable has precise internal structure. Any questions, please contact our Customer Service Manager at the first time. Please do not take it apart without any professional technical support

-Don’t use it in water or in the rain

-The product is only for EV charging. Please don’t use it in any other occasions, including hauling, binding and so on

Package measurement and weight

Item No: BS-PCD020S-T2-SCHUKO

Packages: 1 carton inner box

Packing Size: 40*38*8(cm) / 15.7*15*3.15(in)

Weight: 2kg

Product professional data

Service life:>10000 times

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

Shell Material: Thermo Plastic

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

Inlet cable spec: 3*2.5mm²

Outlet cable spec: 3*2.5mm²+2*0.5mm²

Cable diameter: 12(mm) / 0.47(in)

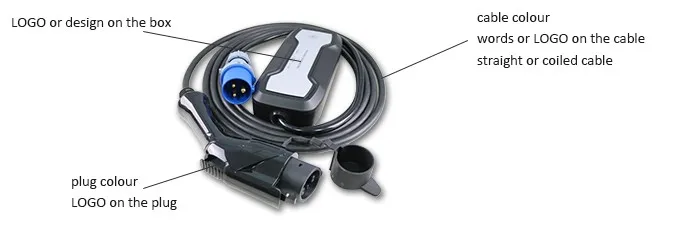

Parts can be customized

Box: can print logos on it

Plug: can print logos and choose colors

Cable: can print words or logos and choose colors

Instructions & Documents

Please contact us for detailed instructions

Detailed Images

We have abundant experience of EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each of our customers.

We pay more attention to handle the detailed part of our products, hope to provide with our customers safety, difficult to damage and convenient operation in use.

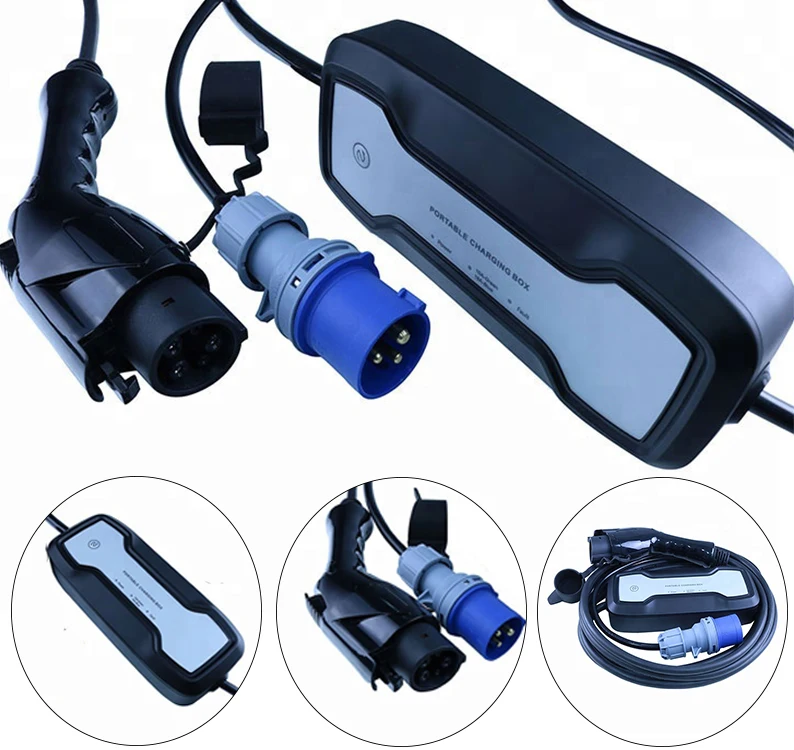

Here are some detailed pics about our type1 ev charging cable:
