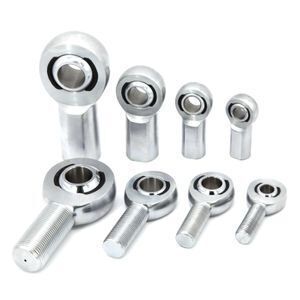

Precision Rod Ends and Spherical Bearings

Supplier: Shanghai Yongzhen Machine Components Co., Ltd.
Region: Shanghai, China
Contact: Ms June Zhu
Price: $2.50 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Certificate:	ISO9001:2000, SGS Certified;	Model Number:	XM3-XM16;
Place of Origin:	Shanghai China;	Application:	Offroad,Industry,Precision,Aviation;
Material:	Chrome steel, Carbon steel, Stainless steel;	Ball Material:	52100 Bearing SteelHeat Treated, Hard Chrome Plated;
Sample:	Available;	Type:	Rod End;
Item:	Precision Rod Ends;	Delivery Detail:	Large amount of STOCK ready to ship same or next day;
Brand Name:	SYZMACHINE;	Port:	FOB SHANGHAI;
Supply Ability:	100000 Piece/Pieces per Month Precision Rod Ends;	Feature:	Heavy Duty;
Precision Rating:	High Precision;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Race:	Reinforced Nylon;	Bore Size:	0.1900 - 1.0000 inch;
Service:	Prompt Delivery,OEM,Good Service Offered,Buyer Label Offered;	Packaging Detail:	Thread Protection, Individually Bagged, Packed into boxes for Precision Rod Ends;
Packing:	Thread Protection, Individually Bagged;

SYZ Series	Thread Size	Housing	Ball	Features

XM/ XF	Inch	4130 Chromoly Steel	52100 Bearing Steel	Heavy Duty
	10/32-1.25"	Heat treated	Heat treated	Nylon/PTFE injection molded
	Male/Female	Hard Chrome Plated	Hard Chrome Plated	The strongest rod end

AM/ AF	Inch	Aircraft Aluminum	52100 Bearing Steel	Heavy Duty
	10/32-3/4"	Color Anodized	Heat treated	Nylon/PTFE injection molded
	Male/Female	Red/Black as Standard	Hard Chrome Plated	Light Weight

EXM/ EXF	Inch	1045 Carbon Steel	52100 Bearing Steel	Heavy Duty
	10/32-1.25"	Yellow zinc plated	Heat treated	Nylon/PTFE injection molded
	Male/Female		Hard Chrome Plated

XM-M/ XF-M	Metric	4130 Chromoly Steel	52100 Bearing Steel	Heavy Duty
	M5-M50	Heat treated	Heat treated	Nylon/PTFE injection molded
	Male/Female	Hard Chrome Plated	Hard Chrome Plated	The strongest metric rod end

CM-(T)/ CF-(T)	Inch	1045 Carbon Steel	52100 Bearing Steel	2-piece Metal to Metal
	10/32-3/4"	Silver zinc plated	Heat treated	Economic Rod End
	Male/Female	Teflon Lined Available	Hard Chrome Plated	Ball move freely in housing

CM-M/ CF-M	Metric	1045 Carbon Steel	52100 Bearing Steel	2-piece Metal to Metal
	M3-M20	Silver zinc plated	Heat treated	Economic Rod End
	Male/Female		Hard Chrome Plated	Ball move freely in housing

SCM-T/ SCF-T	Inch	304 Stainless Steel	440C Stainless Steel	2-piece Teflon Lined
	10/32-3/4"	Teflon Lined	Heat treated	stainless steel rod end
	Male/Female		Precision Ground

SCM-MT/ SCF-MT	Metric	304 Stainless Steel	440C Stainless Steel	2-piece Teflon Lined
	M3-M20	Teflon Lined	Heat treated	stainless steel rod end
	Male/Female		Precision Ground	Metric Size

PCM-(T)	Inch	4130 Chromoly Steel	52100 Bearing Steel	2-piece Metal to Metal
	1/2-3/4"	Heat treated,Black Oxide	Heat treated	Chromoly Rod End
	Male	Teflon Lined Available	Hard Chrome Plated	Ball move freely in housing

PCYM-T/ PCYF-T	Inch	4130 Chromoly,Heat treated	52100 Bearing Steel	High Misalignment Rod End
	3/8-3/4"	Teflon Lined,Black Oxide	Heat treated	2-piece, Chromoly Steel
	Male/Female	High Misalignment	Hard Chrome Plated	Teflon Lined

NM/ NF	Inch	1045 Carbon Steel	52100 Bearing Steel	Injection Molded Rod End
	10/32-3/4"	Yellow zinc plated	Heat treated	Reinforced Nylon
	Male/Female	Nylon injected	Hard Chrome Plated

SYZ Series	Thread Size	Housing	Ball	Race

JM-(T)/ JF-(T)	Inch	1045 Carbon Steel	52100 Bearing Steel	Alloy Steel
	6/32-1.25"	Yellow zinc plated	Heat treated	Heat Treated
	Male/Female	Teflon Liners Available	Hard Chrome Plated	Silver Zinc Plated

JMX-(T)/ JFX-(T)	Inch	4130 Chromoly Steel	52100 Bearing Steel	Alloy Steel
	10/32-1.25"	Heat treated, Silver zinc	Heat treated	Heat Treated
	Male/Female	Teflon Liners Available	Hard Chrome Plated	Silver Zinc Plated

ALJM-(T)/ ALJF-(T)	Inch	Aircraft Aluminum	52100 Bearing Steel	Alloy Steel
	10/32-3/4"	Color Anodized Red/Black	Heat treated	Heat Treated
	Male/Female	Teflon Liners Available	Hard Chrome Plated	Silver Zinc Plated

PMX-T	Inch	4130 Chromoly Steel	52100 Bearing Steel	304 Stainless steel
	10/32-3/4"	Heat treated, Silver zinc	Heat treated	Heat Treated
	Male	Teflon Lined	Hard Chrome Plated

JM-M(T)/ JF-M(T)	Metric	1045 Carbon Steel	52100 Bearing Steel	Alloy Steel
	M5-M20	Yellow zinc plated	Heat treated	Heat Treated
	Male/Female	Teflon Liners Available	Hard Chrome Plated	Silver Zinc Plated

JMX-M(T)/ JFX-M(T)	Metric	4130 Chromoly Steel	52100 Bearing Steel	Alloy Steel
	M5-M20	Heat treated, Silver zinc	Heat treated	Heat Treated
	Male/Female	Teflon Liners Available	Hard Chrome Plated	Silver Zinc Plated

SA-TK/ SI-TK	Metric	1045 Carbon Steel	52100 Bearing Steel	Sintered Bronze
	M5-M35	silver zinc plated	Heat treated
	Male/Female		Hard Chrome Plated
