Complete Mild Steel Fabricated Axle Housing

Product details
Color:Customer's Request;Car Fitment:OTHER;
Car Model:OFFROAD;Type:Axle Housing;
Place of Origin:China;Technology:Welding, CNC machining, Casting;
Certification:Certification: ISO9001:2008;Packaging Detail:Original packing box;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;Product name:Drum Style stainless steel Front axle housing;
OE NO:Customer Built;Port:Shanghai;
Car Make:ATV/UTV;Brand Name:Rear Axle Housing;
OE NO.:OEM;Year:OTHER;
Model:OTHER;Supply Ability:10000 Piece/Pieces per Month car race steering hub;
Warranty:12;Application:Transmission System;
Surface treatment:Polished, anodized, hard chromoly plated;Package Preview:;

SYZ MACHINE

- Your China Alex Housing Kit Supplier

Specifications:



  • Supply to USA, Europe, and Australia
  • Material:40Cr/ 4130 Heat Treated Chromoly Steel/ 7075 or 6061 T6 aluminum
  • Surface: Sand Blast/ Silver Zinc/ Yellow Zinc/ Black Zinc/ Chrome Finish/ Electrophoresis
  • Galaxie Housing Kit - Center, 3" Tubes, Late Model Large Bearing Ends. Includes a new 9-Plus Galaxie housing center, two 21" long 3" x 188" wall tubes and one pair of billet steel late model large bearing housing ends.
  • We could manufacture all kinds of Axle Housing according to OEM No., Your Samples, or Drawings.
  • Email:ivy(at)syzmachinecomp.com

Company Information

Applications:

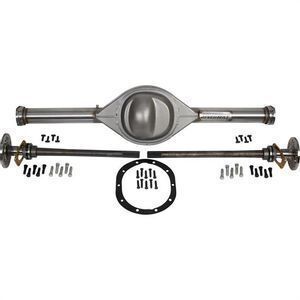

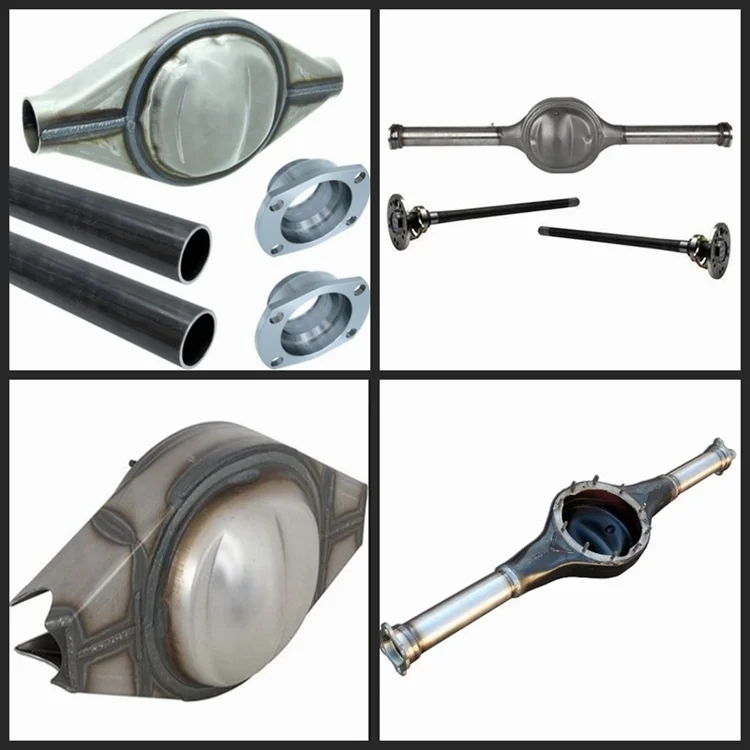

Looking for a budget-friendly and rock-solid rearend to complete your upgraded driveline? Look no further. These fabricated steel Truck 9" rearend housing kits feature all-new components for maximum durability. This 9 inch Truck axle housing is pumpkin-centered, which will offset the pinion yoke about 1". This is done to make fabricating a triangulated 4-link system much easier. Simply weld on your preferred brackets, slip in the included 31-spline axles and add the 3rd member of your choice (sold separately), and you have yourself a rolling chassis!



Total wheel-to-wheel mounting surface width is 56" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1" offset from center, requiring different length axle shafts. This 56" housing kit includes one 28-5/8" long axle and one 26-3/8" long axle. These custom cut and splined axle shafts are manufactured from an induction heat treated 1541 forged alloy. These axles are specific to the aftermarket brake configuration standard in that they have a 2.5" brake space offset, 2.8" register hub and include late model large bearings (Torino bearings). Flanges are dual-drilled for both 5 on 4-1/2" Truck/Mopar and 5 on 4-3/4" GM wheel bolt patterns.



Kit includes the fabricated housing, a pair of axle shafts with bearings and seals, 1/4" thick heavy duty retainer plates, two sizes of wheel studs (1/2"-20 Truck/Mopar and 7/16"-20 GM), and a reusable 3rd member gasket. Also included are (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member.

Related products



Delivery Time:



Sample Time:

We provide free samples for parts in stock. Client pays for air freight for sample delivery or provide freight account on collect.

Sample can be sent out next day upon request.

Please send email for sample requirement.

Bulk Order Delivery Time:

Stock in hand: Ship next day after receipt of payment.

Bulk production: 30~45 days after receipt of deposit (may vary depending on specific items and item quantities)

For urgent order, we can make it faster. Please send email to negotiate.



Shipping Options:



Shipping Options with estimated charge (freight may vary depending on specific weight, volume, and address, check with us for the exact freight):

- Air freight to door by FedEx (100KGS-300KGS)= $4.40-$5.80/KG

- Air freight to door by FedEx (less than 100KGS)= $6.20-$8.00/KG

- Ocean freight to door= $600-$1,200/ shipment

- Ocean freight to nearest port= $100-$200/ shipment

We work with the most professional forwarders in the world and we share our large shipping discounts with all our customers.



Payment Terms:



We usually accept T/T (wire transfer), PAYPAL, Western Union, Escrow.

Other terms like MONEY GRAM, L/C, D/P, D/A, O/A can be negotiated.

Packing Method:

1.Neutral packing (neutral plastic bag+ neutral carton+ Plywood/Iron pallets)

2.Custom packing (with logo or barcode according to clients' requirement)
