SUNTECH Fabric Textile spreading Relaxing and Unwinding Machine

Supplier: Zhejiang Strength Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Mindy Dong
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Item:	fabric releasing machine;	Standard Roll Weight:	100kgs;
Voltage:	3 Phase-380V;	Supply Ability:	100 Set/Sets per Month SUNTECH Fabric Textile Relaxing and Unwinding Machine;
Inlet form:	Fabric roll;	Application:	Release tension, or plait fabric;
Fabric type:	Knitted Fabric;	Dimension(LWH):	per model;
Power(W):	Special Model;	Packaging Detail:	Steel Pallet or Wooden Box Packing for SUNTECH Fabric Textile Relaxing and Unwinding Machine;
Outlet form:	Plait fabric;	Place of Origin:	Zhejiang China (Mainland);
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Automatic Grade:	Automatic;
Warranty:	13 Months;	Speed:	0-60m/min;
Weight:	per model;	Certification:	CE ISO9001;
Inspection function:	YES - Optional;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Brand Name:	SUNTECH;	Standard Roll Diameter:	500mm;
Port:	NINGBO/SHANGHAI;

Product Description

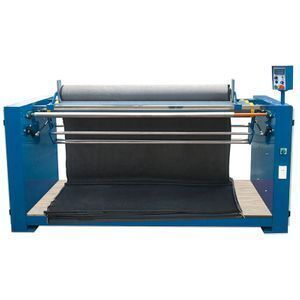

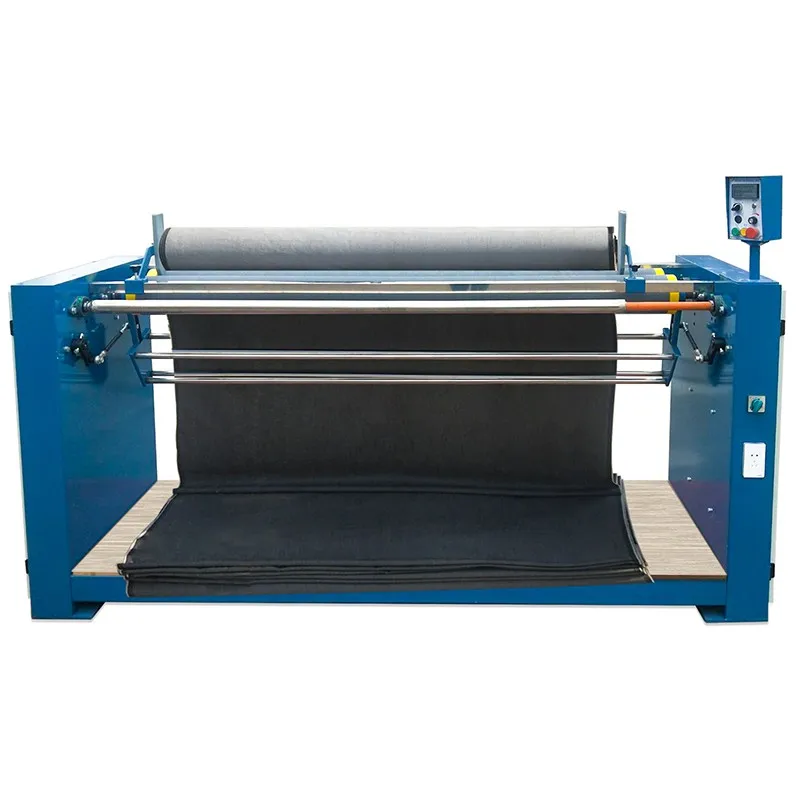

SUNTECH Fabric Textile Relaxing and Unwinding Machine

ST-FRM is mainly used to eleminate the tension of knit fabrics; besides it will keep fabrics tidy for storage. With the increasing use of elastomeric and Lycra fabrics in all sectors of apparel and textile industries. ST-FRM is becoming popular and it can work with the spreading machine for good efficiency.

SPECIFICATIONS FOR FABRIC RELAXING MACHINE
Speed	0-60m/min
Fabric Width	1.8-3.0m
Major Axis Max.	500mm
Standard Roll Weight	100kgs
Electric Specs.	3phase-380V/50Hz
Remark	Variable and customized working width is available

Main Features

1)Simple fabric input control.

2)Fabric input from free running or motor driven roller for simple and effective control.

3)Roller conveyor for syncronization unrolling and plaiting.

4)End of roll automatic stop sensor for next roll joining.

5)Option: Build with inspection function.

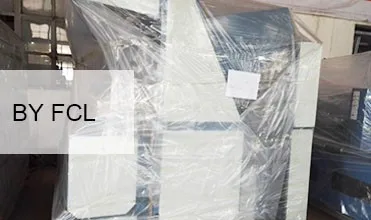

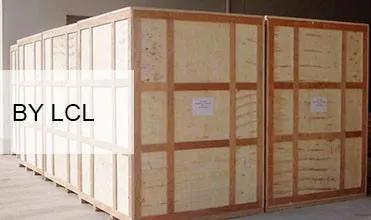

Packing
