Product details
Warranty:1 yearVideo outbound inspection:if
Showroom location:not anyMechanical test report:if
Local service locations:not anyOperator:left or right
Automatic level:semi-automaticAfter Warranty Service:Video technical support, on-site maintenance and repair services
Production capacity:100%Core component warranty:2 years
weight:45 tonstype:Single-layer horizontal chain return type hot air circulation
Package preview:Room temperature:100-230℃
Packaging Details:standard packagingCore components:PLC, pump
Voltage:380VOrigin:Fujian Province, China
Health status:newSupply capacity:50 sets per month
Nominal Width:1800~3600mmpayment terms:L/C, T/T
After-sales service provided:Video technical support, online support, on-site installation, commissioning and trainingApplicable industries:textile
Marketing Type:normal productChambers:8 knots
brand:HongshengPaddle:two rolls
Overfeed range:-10%+30%Dimensions (L*W*H):(16115+n*3000)mm+(width+2500)mm*2300mm
Certification:ISO9001port:Xiamen
strength:120 kWNumber of chambers:4-10 pieces, each 3m long
Installed power:178 kWNominal speed:5-100m/min
Product Description

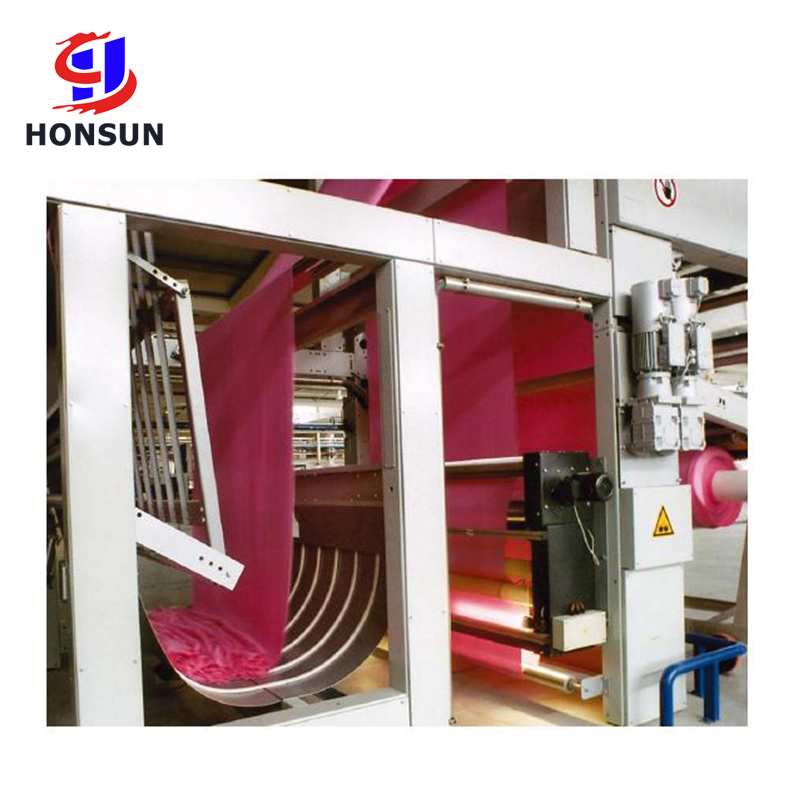

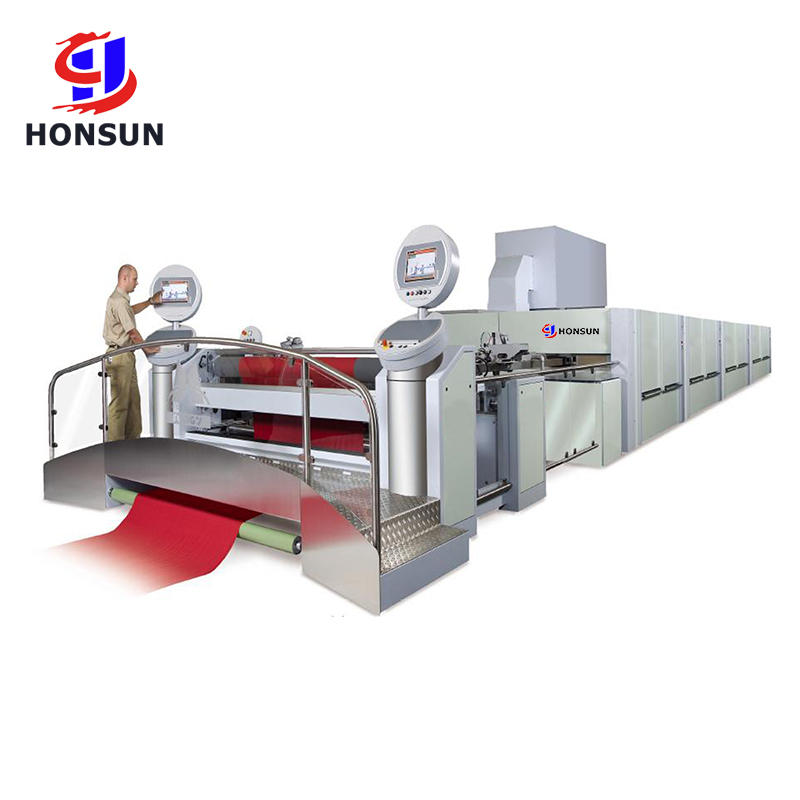

The double-channel stenter setting machine designed by Hongshun is suitable for finishingvarious textile fabricsEspecially elastic fabrics and sensitive fabrics. This model hashigh efficiency,low energyLarge consumption, independent and uniform temperature box design, and endow the fabric with low tension.
Process flow:
Enter-->Screw Diameter Expansion-->Infrared Ray Centering-->Padding-->Disc Weft Adjustment-->Down Overfeed-->Mechanical Straightening-->Screw Expansion-->Upper Overfeed- ->No curling of selvedge-->E+L chain track control-->Napling-->Gluing-->Drying or heat setting-->Air cooling-->Suction trimming-->Nail removal- -> small roll braiding or dipping
On the main console, through the independent width adjustment spindle, any width can be preset.
Specification
thing
unit
data
Nominal width
(mm)
1800~3600
Width adjustment range
(mm)
700~3400
Nominal speed
(m/min)
5-100
Overfeed range
(%)
-10%+30
fabric made of
-
pins
heat source
-
Cycle oil, gas, electricity, high pressure steam
Number of chambers
-
4-10 pieces, each 3m long
delivery unit
-
By planking machine and small roll batching machine
Room temperature
(°C)
100-230
Installed power
(kilowatt)
55+n*15

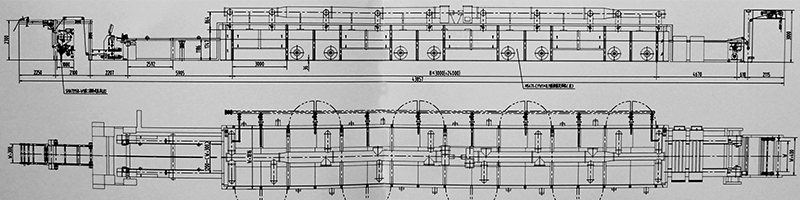

Dimensions (L*W*H)
(mm)
(16115+n*3000)+(width+2500)*2300
Cabinet size (length*width*height)
(mm)
(1344+n*3000)+(width+1816)*1737

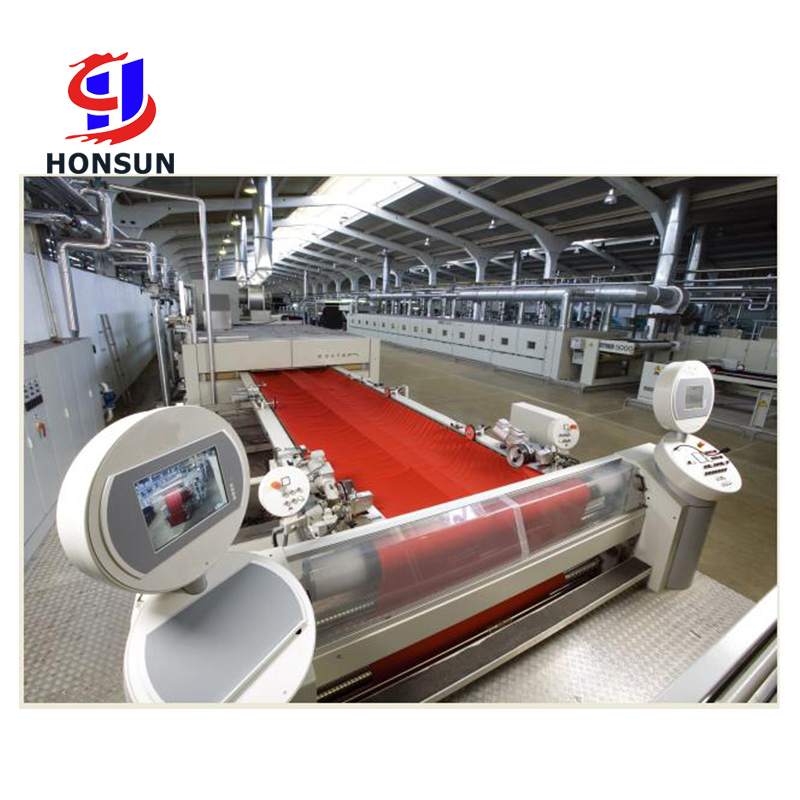

Customer site
