Knit inspection and winder with channel and blade alignment system is easy to operate
- 5000.00 set
| payment terms: | L/C, T/T, Western Union | port: | China Shanghai |
| Origin: | Jiangsu, China | brand: | Penglong |
| Certification: | CE certification | Supply capacity: | 20 sets per month |
| After-sales service provided: | Engineers available to service machinery overseas | Character 1: | One channel makes it easier to work on the fabric during the inspection process |
| Warranty: | 1 year | Role 2: | Cross cutter and floor scale optional |
| Voltage: | custom made | Shipping Details: | Ships within 0 days after payment |
| Packaging Details: | wooden box/pallet | Dimensions (L*W*H): | 2500mm*2300mm*1900mm |
| Health status: | new | weight: | 1200 kg |
| Name: | Knitted fabric inspection and crimping machine for edge system | strength: | 1 hp*2 |
| Automatic level: | semi-automatic | model: | PL-B |
| Role 3: | Creamy white acrylic provides good light for inspection |
Knit inspection and winder with channel and blade alignment system is easy to operate
usage:
This knitted fabric inspecting and rolling machine is equipped with channel and knife edge alignment system, easy to operate, suitable for fabric inspection and rolling of various cotton, knitted, woven, printed, warp knitted and other fabrics.
Technical Parameters:
| 1 | maximum. Cloth | 2000mm~3600mm. |
| 2 | Cloth diameter | 600mm. |
| 3 | maximum. Line speed | 80 m/min. |
| 4 | main motor | 1HP*2 units |
| 5 | Edge accuracy | ±3mm |
| 6 | aspect | 2320mm(L)*2600~3600mm(W)*2000mm(H) |
feature:

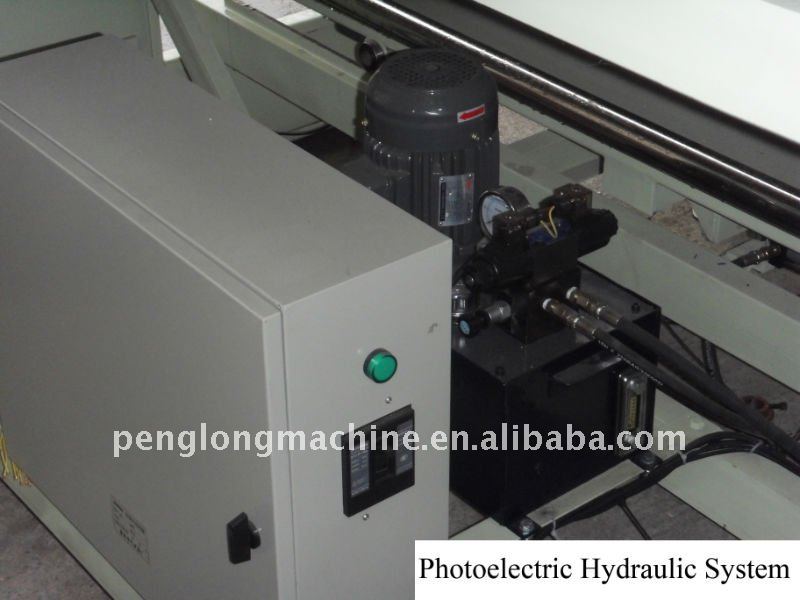

1. This type of knitting cloth inspecting and rolling machine adopts the photoelectric hydraulic alignment system made in Taiwan, and the channel and knife alignment system are easy to operate. Power 1/2HP.
2. The fabric tension can be adjusted by frequency conversion, and the width does not shrink.

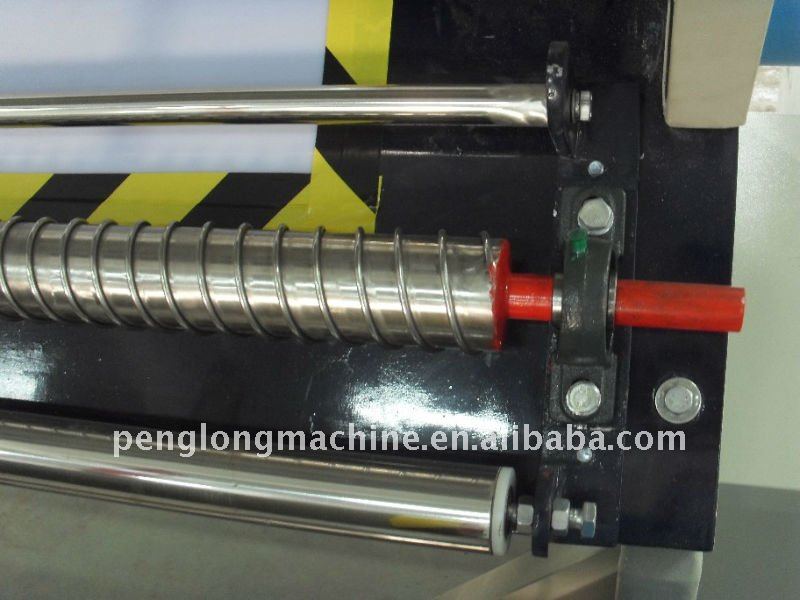

3. Equipped with edge expanding roller to eliminate curling. Extended power 1/2HP
4. The speed regulation of the main motor is controlled by two frequency converters. Power 1/2HP.

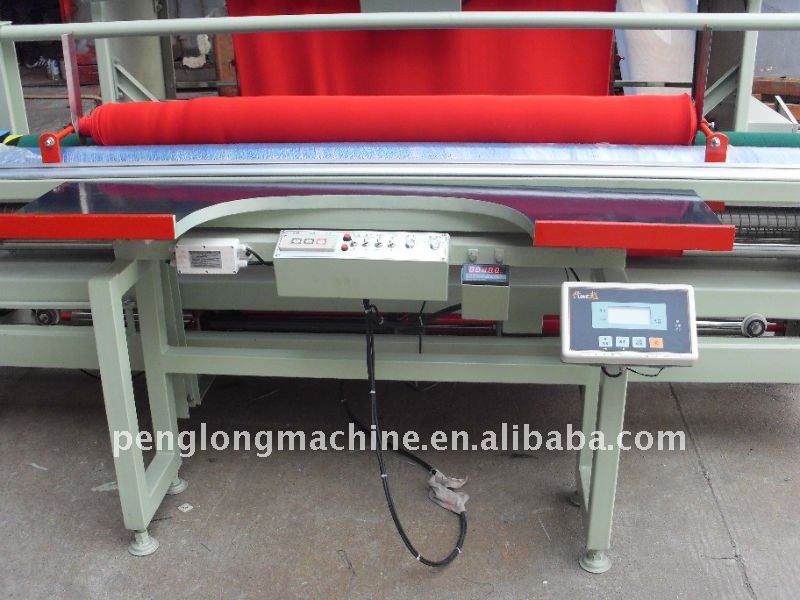

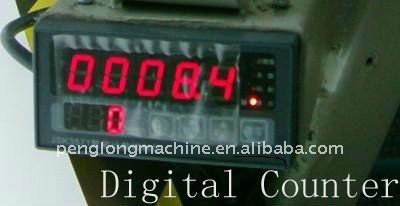

5. The digital display counter can accurately measure the length, and the unit is yard or meter, which can be interchanged.
6. The detector is equipped with channels, which is convenient for users to operate.
7. Equipped with a cloth loader consisting of 2 rollers driven by independent motors.

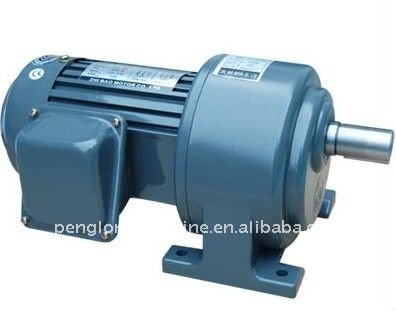

8. The rewinding roller and feeding roller are driven by geared motors made in Taiwan. Power 1HP×2 units.

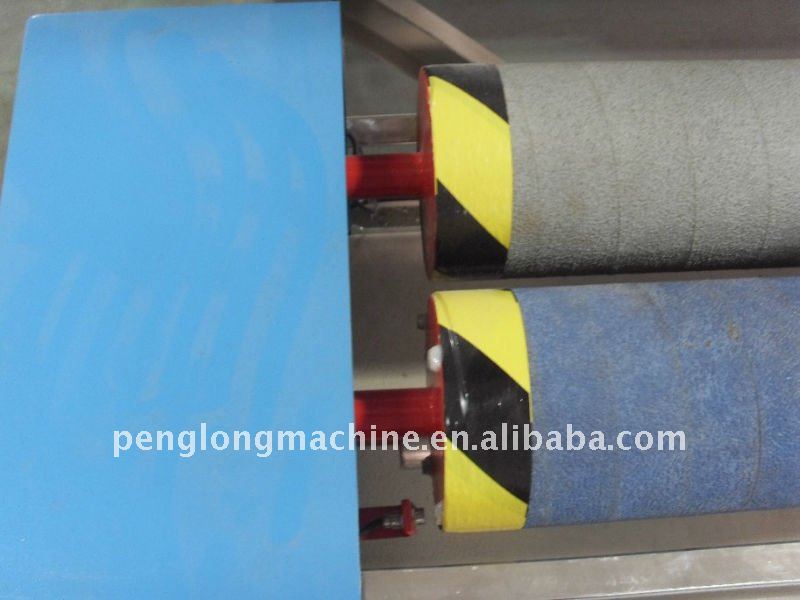

Imported special foam winding roller, can wind warp and weft knitted plush, short pile, no slippage, no messy edges. The fabric roll is neither too tight nor too loose.

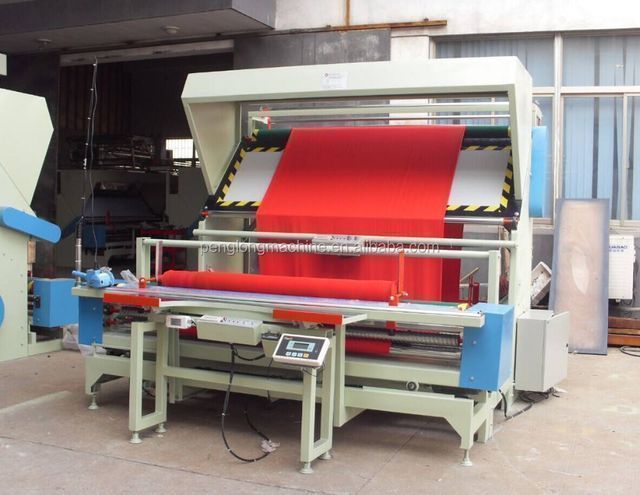

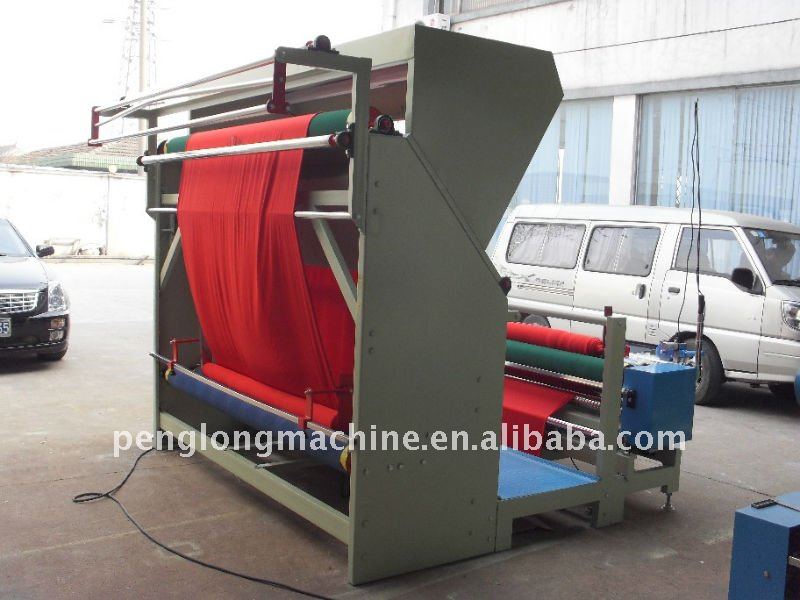

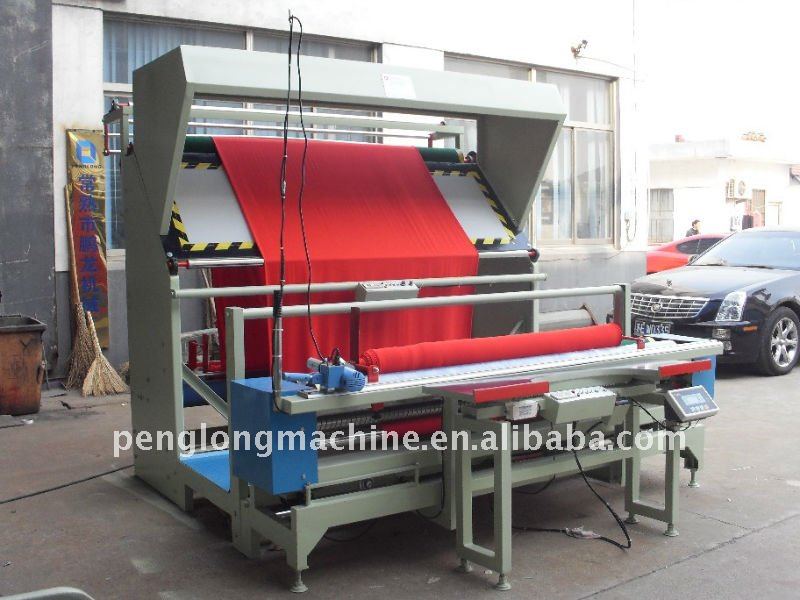

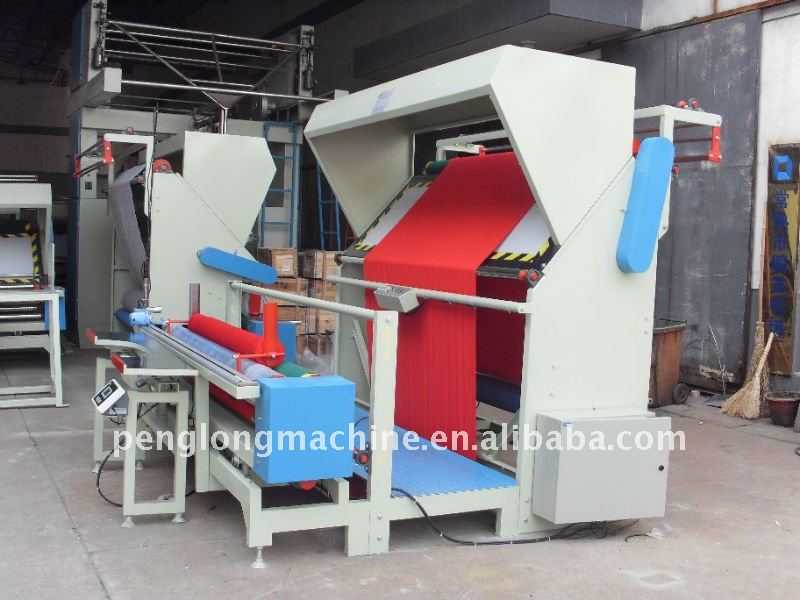

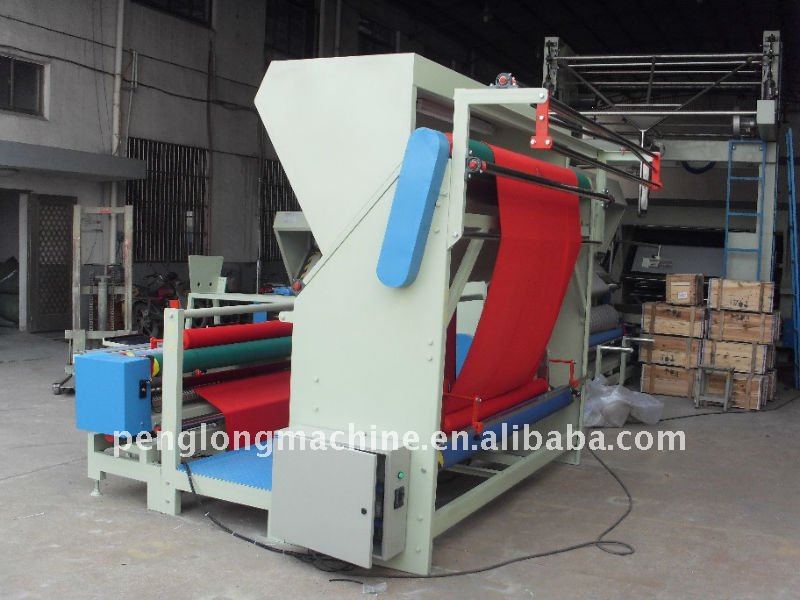

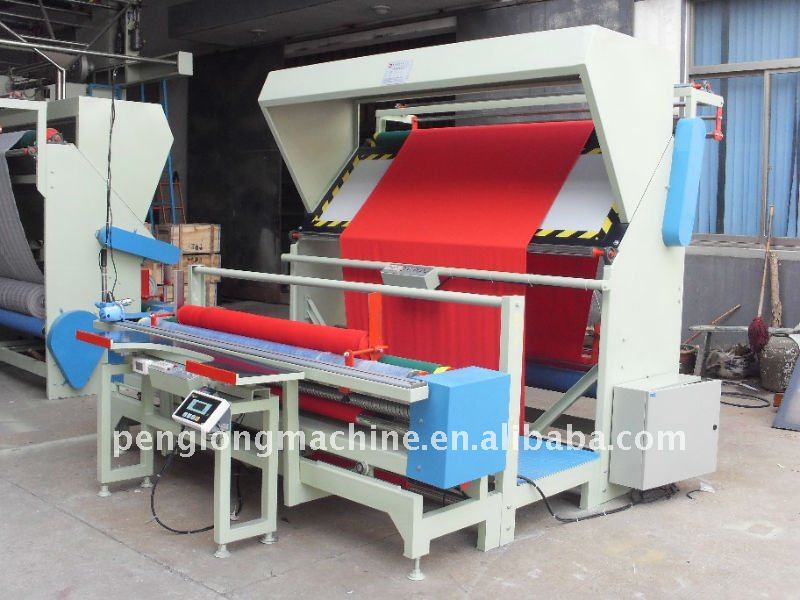

Machine picture:
Channels, cutting devices, weight detectors are optional parts.
