Woven Fabric Finishing Stenter Machine

Supplier: Shishi Hongshun Printing And Dyeing Machinery Manufacturing Co., Ltd.
Region: Fujian, China
Contact: Mr Francis Li
Price: $300000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001	Video shipment inspection:	if
Automatic level:	semi-automatic	Package preview:
brand:	Hongsheng	Overfeed range:	-10%+30%
Applicable industries:	textile	Mechanical test report:	if
normal speed:	5-100m/min	Health status:	new
After warranty service:	Video technical support, on-site maintenance and repair services	Showroom location:	not any
After-sales service provided:	Video technical support, online support, on-site installation, commissioning and training	payment terms:	L/C, T/T
Local service location:	not any	Core components:	Pump
place of origin; place of origin:	Fujian China	Warranty:	1 year
Number of rooms:	4-10 pieces, each 3m long	Operator:	left or right
Nominal Width:	1800~3600mm	Marketing Type:	New Products 2020
Installed power:	(55+n*15) kilowatts	type:	Single-layer horizontal chain-back hot air circulation
Supply capacity:	50 sets per month	Core component warranty:	2 years
Packaging Details:	standard packaging	Room temperature:	100-230℃
Cavity size (lengthwidthheight):	(1344+n3000)mm+(W+1816)mm1737mm	strength:	120KW
Dimensions (LWH):	(16115+n3000)mm+(W+2500)mm2300mm	port:	Xiamen

Product Description

The double-channel stenter setting machine designed by Hongshun is suitable for finishingvarious textile fabrics, especially elastic and sensitive fabrics. This model hashigh efficiency,low energyEnergy consumption, independent temperature chamber design, endow the fabric with low tension.

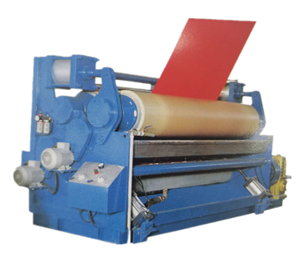

standard mill

The standard padder sets a uniform force on the fabric width, giving extremely low tension to the fabric.

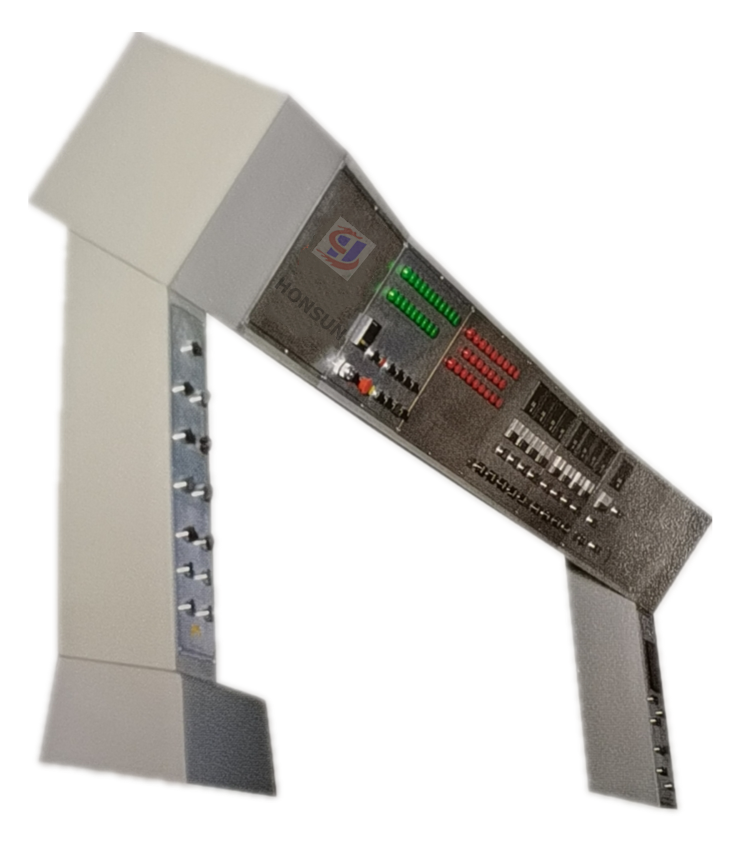

run control command

Features a touch screen controller that displays overfeed rate, machine speed and problem diagnosis Our control panel is user-friendly and easy to operate

Specification

thing	unit	data
Nominal width	(mm)	1800~3600
Width adjustment range	(mm)	700~3400
Nominal speed	(m/min)	5-100
Overfeed range	(%)	29.9
fabric made of	-	pin
heat source	-	Cycle oil, gas, electricity, high pressure steam
Number of rooms	-	4-10 pieces, each 3m long
delivery unit	-	via plaiter and small roll batcher
Room temperature	(Celsius)	100-230
Installed power	(kilowatt)	55+n*15
Dimensions (LWH)	(mm)	(16115+n3000)+(W+2500)2300
Cavity size (LWH)	(mm)	(1344+n3000)+(W+1816)1737

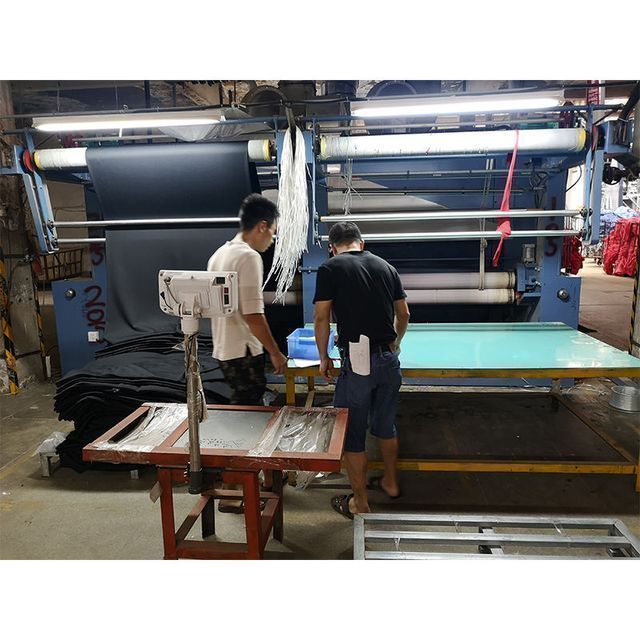

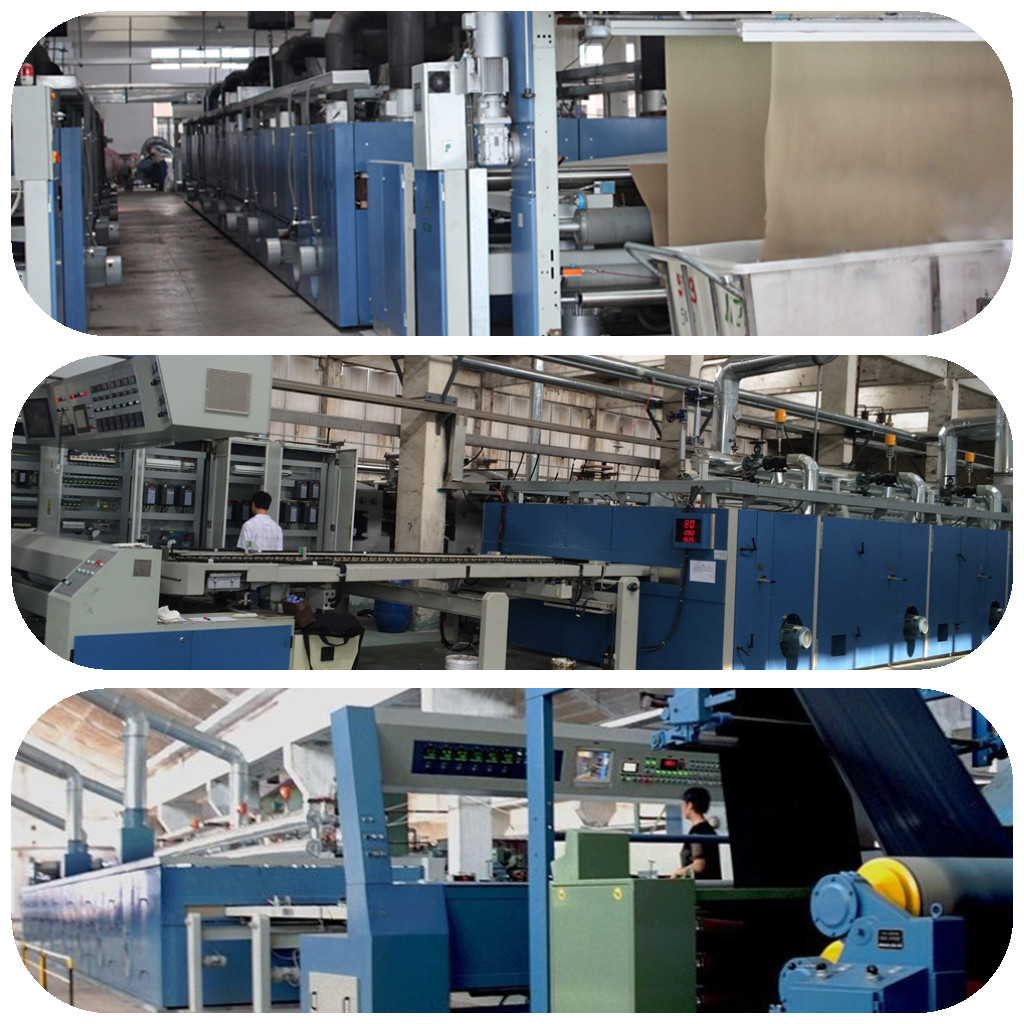

Customer site
