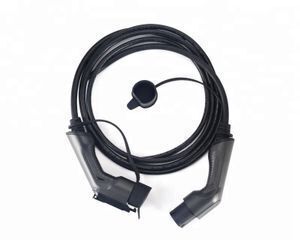

EV charging cable type 1 to type 2 plug in china Cable j1772 to 62196 2 32a

Click here to contact
Product details
OEM Service:Yes;Place of Origin:CHINA;
Brand Name:BESEN;Cable Color:Black / Orange;
Operating Current:16A;Selling Units:Single item;
Cable Standard:Type 1 to Type 2;Protection Grade:IP66;
Model Number:BS-CHC007;Package Type:Exquisite carton;
Operating Voltage:250V;Certifications:CE, TUV(Rheinland);
Cable Length:3m, 5m, 7m;Plug Standard:IEC 62196-2 / SAE J1772;
Single gross weight:2.5 KG;Single package size:50X40X10 cm;
Charging Mode:Mode 3 Charging Cable;

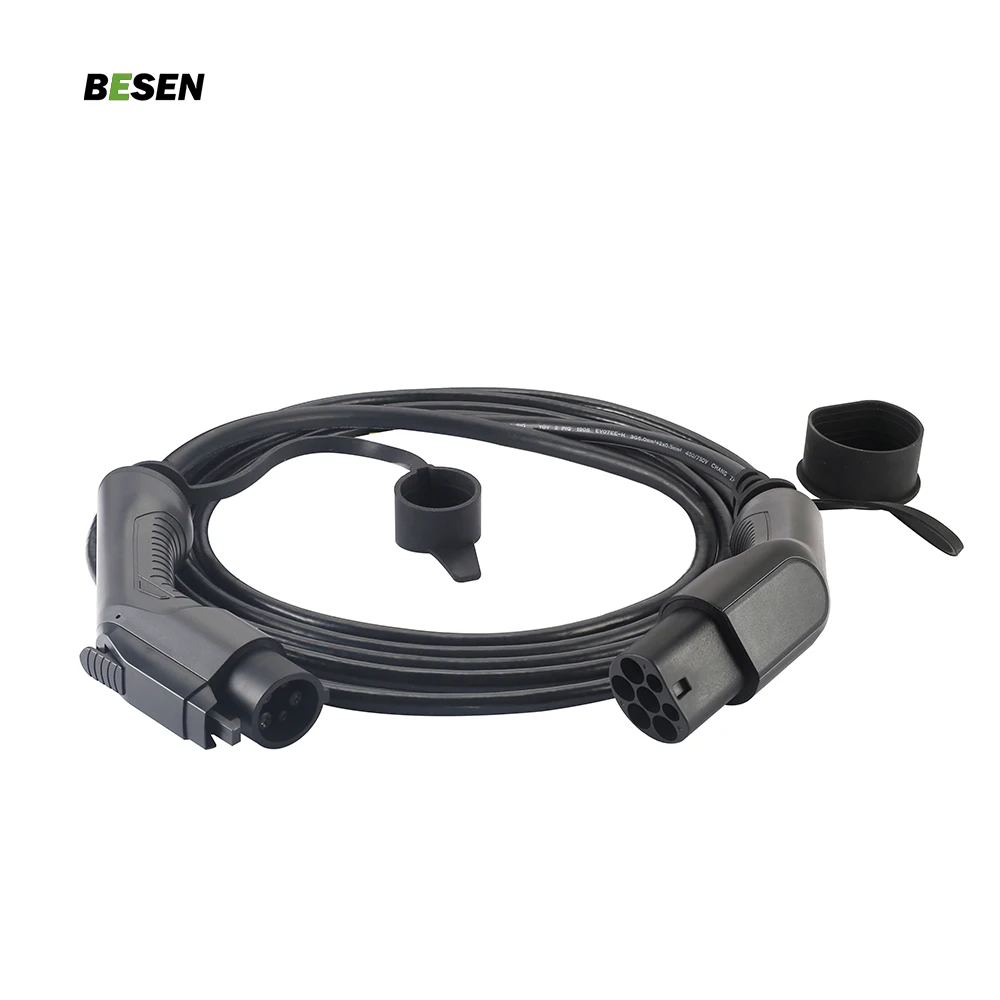

Type 1 to Type 2  (62196-2 to J1772) 16A EV Charging Cable for Electric Vehicle (EV) Charging

 .

Cord lenght: 3m, 5m or customized

Meet IEC 62196-2 (Mennekes, Type 2) EU European standard

Meet SAE J1772 2009 (Type 1) North American standard

Nice shape and easy to use, protection class IP54(in mated conditions)

.

Apply to Vehicle

for Chevrolet Volt,for Citroen C-Zero,for Fisker Karma,for Ford Focus Electric,for Ford C-Max Energi,for Mia,for Mia Electric Van,for Mitsubishi-I Miev,for Mitsubishi Outlander Phev,for Nissan NV200 SE Van,for Nissan Leaf,for Peugeot Ion,for Renault Fluence,for Renault Kangoo,for Smiths Edison Van,for Smiths Newton,for Tata Indica Vista EV,for Toyota Prius,for Vauxhall Ampera....



Product Description



Parameters

Model: BS-CHC007

Reted current: 16A

Working voltage: 250V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved

Charging Cable Spec

TUV 3*2.5mm2+2*0.5mm2

Cord lenght: 3m, 5m or customized

Orange or Black

 .

Materials

Shell Material: Thermo Plastic

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

.

Insert arrangements and functional definition

Mark

Functional defination

1-(L1)

AC power

2-(L2)



3-(L3)



4-(N)

Netural

5-(PE)

PE

6-(CP)

Control confirmation

7-(PP)

Connection confirmation

.

Modle selection and the standard wiring

Model

Number of inserts

Cable Spec.

Color

Remark

BS-CHC007 16A Type1-Type2

7

3*2.5mm2+2*0.5mm2



Black orOrange

The length of the cable can be customized

BS-CHC008 32A Type1- Type2

7

5*6.0mm2+2*0.5mm2

.

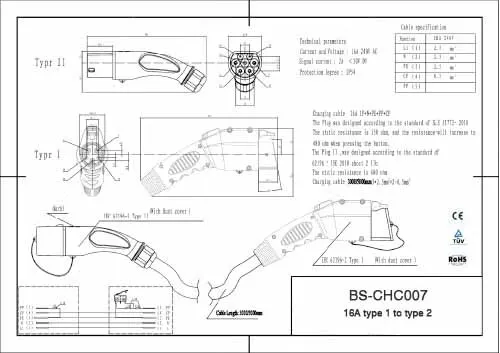

Drawing Interpretation



Best Sale



Company Info

--ABOUT BESEN GROUP--

.

We are one of the biggest EV parts manufacturers in China. The main products are Type 1/Type 2 connectors, sockets, cables and charging stations,  and we have had pleasant business and long-term relationship with many Electric vehicle manufacturers, retailers, online stores, etc. OEM service is one advantage service we provide.

.

.

.

Contact Us

If you have any questions about our sae j1772 plug products, please contact us feel free.

.

Besides, in order to improve our service quality continuously, we sincerely hope you can offer us the valuable advice in the aspects of page layout and introduction of products.



For example:

1. We consider that you can make more introduction in the aspects of products’ details so as to make us have a clearer understanding

2. You can classify the European plugs and American plugs into one category, we regard that it can be convenient for clients to look up.

3. You can make the product description into form of table? So that it can be clear at a glance.



Any customers who provide advices and suggestions will be presented with a  mystery gift  together with your order.



If your advices can be adopted, we will give you extra  2%--5% discounts  on your next order : )

.

.

BESEN, Leading The Charge To A Better Way To Drive !

.


.

.

.
