IEC 62196-2 63A EV Charging Male Plug for European cars

Product details
Brand Name:BESEN;Place of Origin:Jiangsu China;
Supply Ability:10000.0 Piece/Pieces per Month;Colour:white;
IP:66;Packaging Detail:Carton;
Current:63A;Model Number:BS-EVP001-M;
Port:Shanghai;Payment Terms:L/C,D/A,T/T,Western Union,Paypal;
Type:2,PLUG;

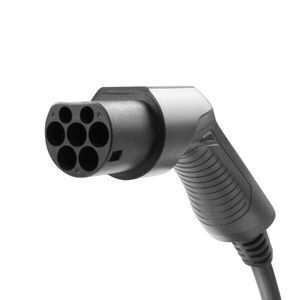

IEC 62196-2 Male Plug (Charging Station End) 63A for Electric Vehicle Charging

Cord lenght: Free End, 3m(9.8ft), 5m(16.4ft)

Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard

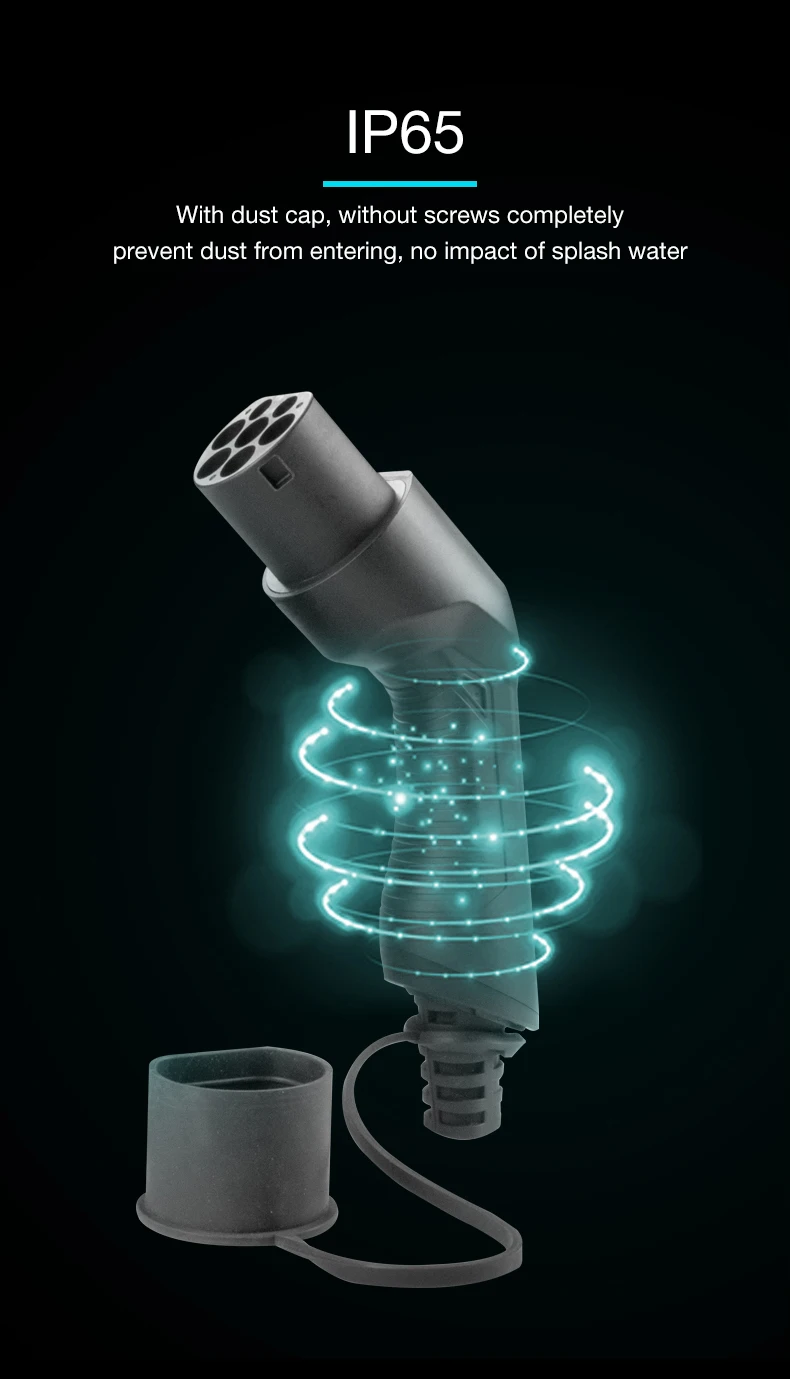

Nice shape and easy to use, protection class IP66(in mated conditions)

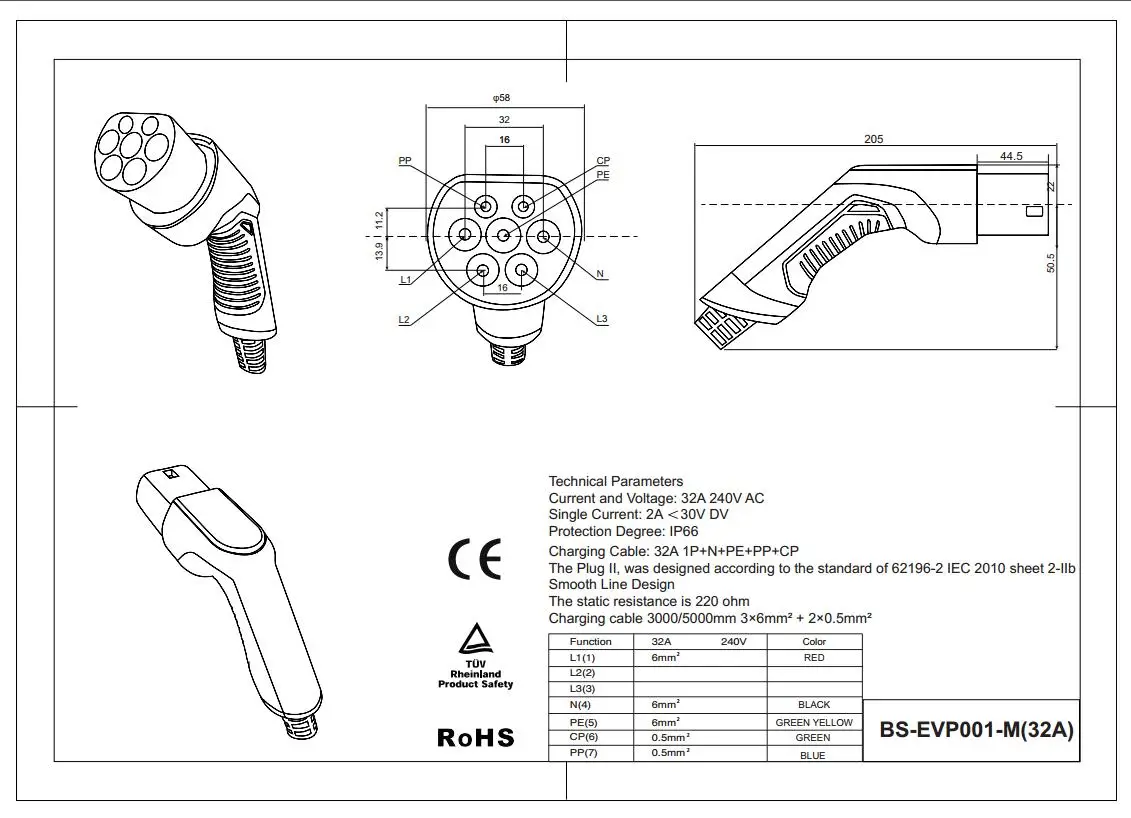

Parameters

Model: BS-EVP001-M (63A)

Reted current: 63A

Working voltage: 240V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

CE, TUV approved



Charging Cable Spec

TUV 3*10mm2+2*0.5mm/  5*10mm2+2*0.5mm2

Cord lenght: Free End, 3m(9.8ft), 5m(16.4ft)

Orange or Black



Materials

Shell Material: Thermo Plastic

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

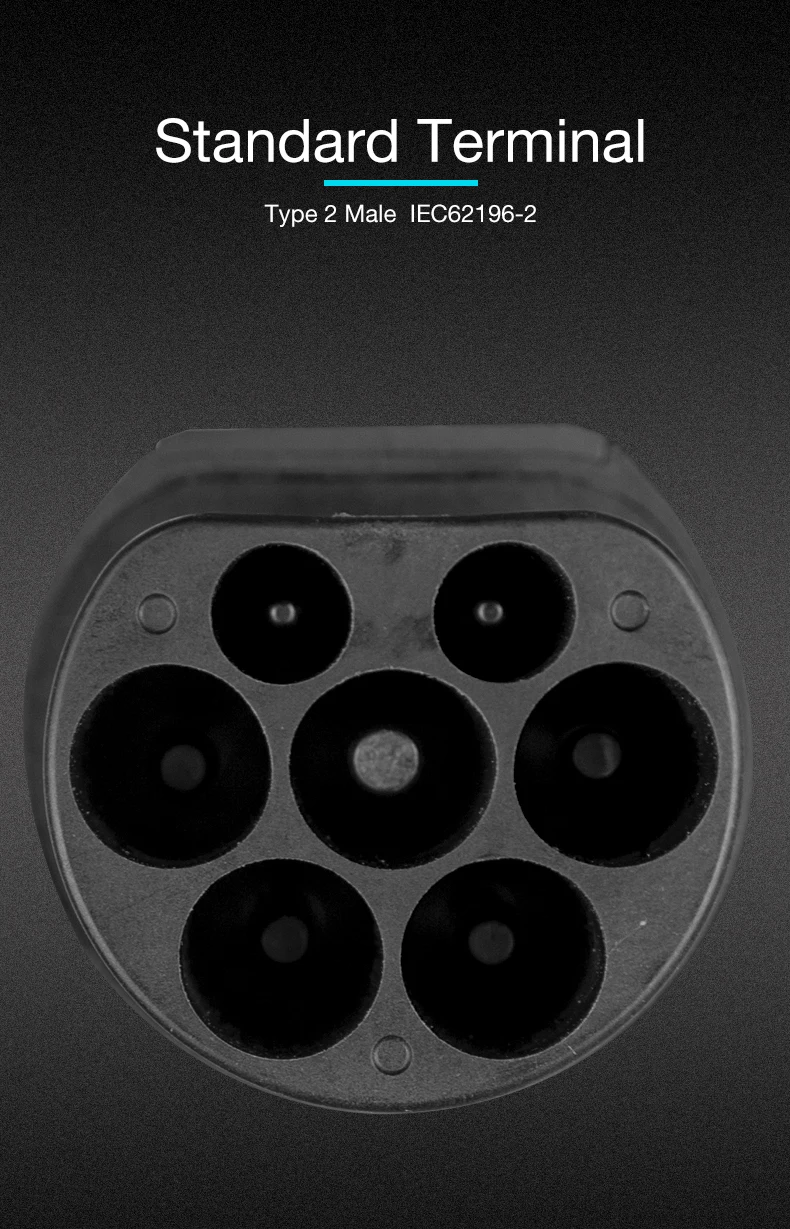

Insert arrangements



Functional defination:

Mark

Functional defination

1-(L1)

AC power

2-(L2)

AC power

3- (L3)

AC power

4-(N)

Netural

5-(PE)

PE

6-(CP)

Control confirmation

7-(PP)

Connection confirmation



.

Company Info

--ABOUT BESEN GROUP--

.

We are one of the biggest EV parts manufacturers in China. The main products are Type 1/Type 2 connectors, sockets, cables and charging stations,  and we have had pleasant business and long-term relationship with many Electric vehicle manufacturers, retailers, online stores, etc. OEM service is one advantage service we provide.

.



.

--OUR RELATED PRODUCTS--

.

Currently, we have abundant EV charging products, not only EV charging connector parts which can be used for EV charging stations and Electric Vehicles, but also wall-mounted  EV charger and portable EV charging box for home use.  Moreover, we are making research and development in our new products continuously.

.



.



.

FAQ

Here are some customer’s common questions about our products:

.

1. What is your terms of payment?

We will recommend our customer to use different terms of payment based on difference in quantity of order.

Less than 1000 USD, generally choose the PayPal

More than 1000 USD, generally choose telegraphic transfer or Alibaba

If you need the detailed terms of payment, pls contact us.

.

2. What is the Alibaba Trade Assurance ? Whether we support?

This is a new service released by the Alibaba website in 2015, January. The clients confirm the order with seller and make the payment, the account of payment is guaranteed by Alibaba. Once not delivering the goods in time or other causes which will lead to unable to receive goods normally, Alibaba will make the full compensate of the payment. More information about Trade Assurance, pls look up   http://tradeassurance.alibaba.com/bao/buyer_advertise.htm?tracelog=from_home_service

We are corporative business with Alibaba, and support the service of Trade Assurance. If any questions about it, pls contact us immediately.

.

3. Do your products have quality certification? How long is the warranty time?

All of our EV charging products posses with CE, TUV certifications. Generally speaking, the warranty time is 1 year.

.

4. How do you deliver your goods to me? How long will it take?

We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3days to 10 days due to the quantity of order, the level of busyness in production line.

.

5. Can we require you to print our trademark into your products? Do the color of plug and cable can be customized made according to our requirements?

We support OEM production, but the order quantity must be more than 100pcs.

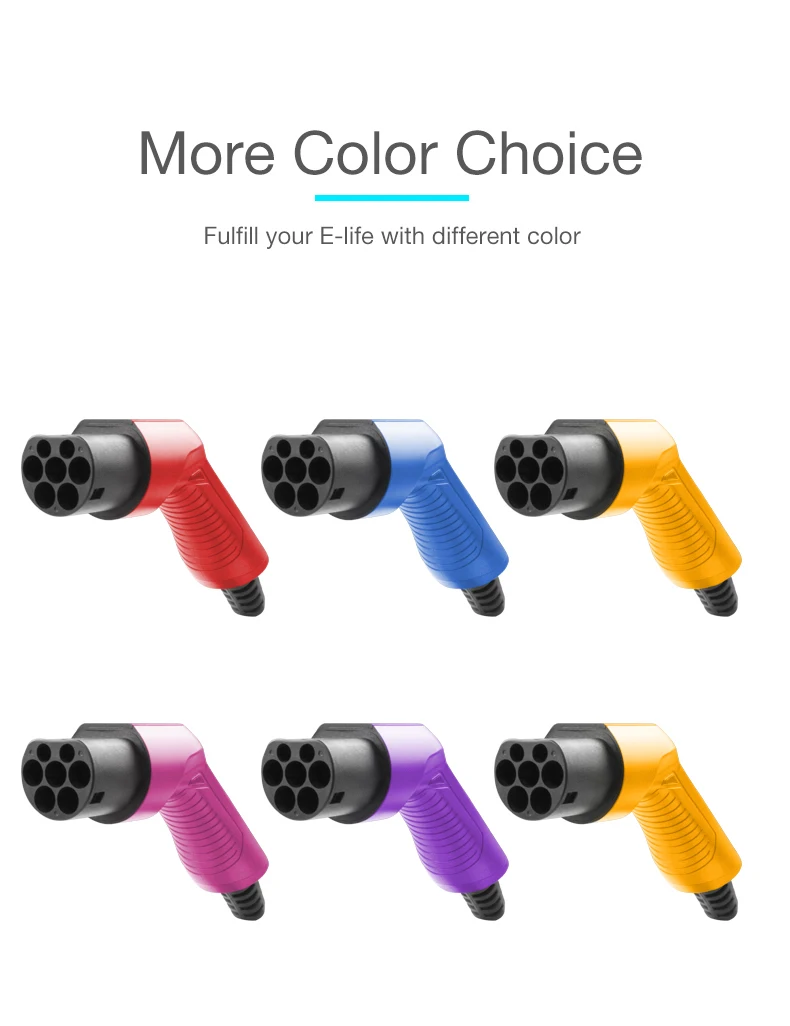

The color of plug and cable can be customized made any colors on the basis of your requirements, the order quantity must be more than 200pcs.

.
