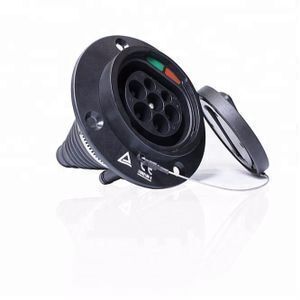

Type 2 Inlet IEC 62196 Electric Vehicle charger Socket with TUV certificates

Click here to contact
Product details
Working Life:More than 10000 times;Packaging Detail:Carton for IEC 62196-2 EV Charging Socket;
Single gross weight:0.5 KG;Material:ABS;
Applicable car models:Type 2;Key Words:IEC 62196-2 EV Charging Socket;
Certificate:CE TUV;Single package size:10.5X9X8 cm;
Selling Units:Single item;Function:car side;
Place of Origin:Jiangsu China;Color:Black;
Type:2,INLET;Colour:Black;
IP:67;Model Number:BS-EVSC004;
Brand Name:BESEN;

 Type 2 (IEC 62196-2)  Vehicle-Inlet (Electric Vehicle End) 32A 4 Point Fixing for Electric Vehicle Charging

Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard

Nice shape and easy to use, protection class IP54(in mated conditions)





Product Description





Parameters

Model: BS-EVSC004 (32A)

4 Point Fixing

Reted current: 32A

Working voltage: 250V AC

Insulation resistance: > 1000M Ω (DC500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

Dust Cap with Lanyard

Gaiter Protection

CE, TUV approved



Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber







Type

BS-EVSC-004

Plug the power

≤80N

Color

 Black

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

230V/380V

Waterproof rating

Cut off:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-40°C to95°C

Insulation resistance

500MΩ

Cable Specifications

10mm2 -2.5mm2

Contact resistance



The main material

PC/Copper Alloy

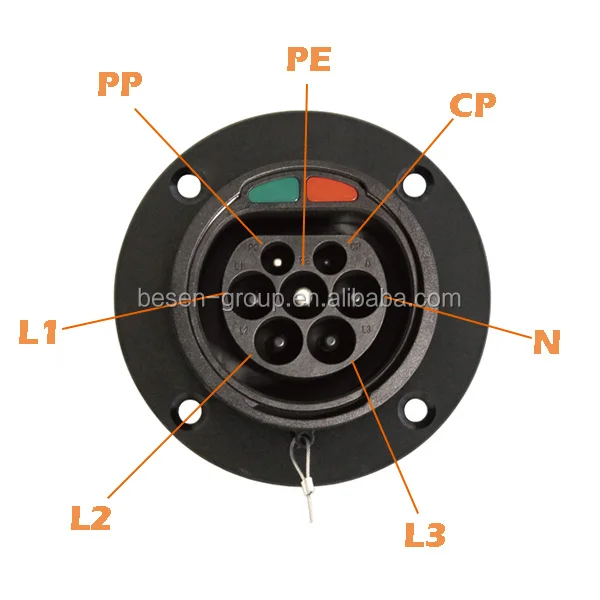

Insert arrangement:

Functional Defination:

Mark Functional Defination
1-(L1)

AC power
2-(L2)

AC power
3-(L3)

AC power
4-(N) Netural
5-(PE) PE
6-(CP) Control Confirmation
7-(PP) Connection Confirmation

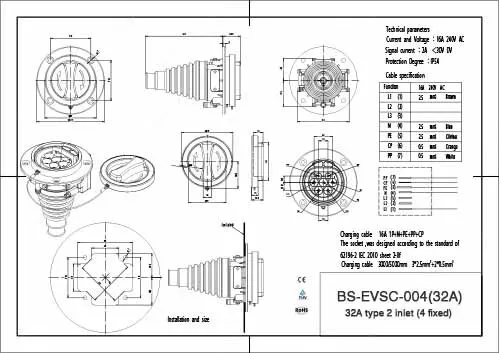

Drawing Interpretation







Company Information

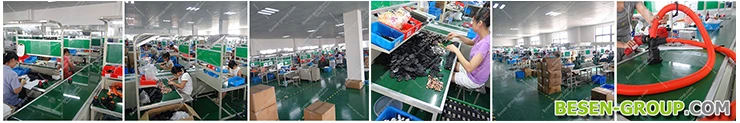

WORKSHOP:

We are one of the biggest EV parts manufacturers in China. The main products are Type 1/Type 2 connectors, sockets, cables and charging stations,  and we have had pleasant business and long-term relationship with many Electric vehicle manufacturers, retailers, online stores, etc. OEM service is one advantage service we provide.

.

EV Connectors Department:

(Main products: J1772 / type 1 , IEC 62196-2 / type 2 plugs , sockets, cables)

s

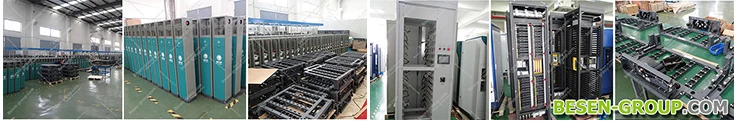

EV Charging Stations Department:

(Main products: AC/DC EV charging stations, wallbox, protable EV charging box )

.

LABORATORY:

We have a complete set of test machines for product analysis and development, ensure that every parts from us be guarantee and secure





Delivery Time

.

Transportation:

We have 10 years of experience in cross-border business, and we have long-term cooperations with many shipping companies,

such as UPS, FedEx, DHL, TNT, EMS.

.

Delivery Time:

Normally it will take 5~7 days by air

35~40 days by sea

.

Tracking Number:

You will get the tracking number as oon as we sent the goods to you.

.



Payment

s

Payment Methods:

We offers variety of payment options for your convenience.
Such as Paypal, T/T, etc...

.

Trade Assurance:

Especially, we support Trade Assurance Services of Alibaba, your orders will be guaranteed by Alibaba, this marks that you can get full compensate from Alibaba if any questions happened, protect your profit and no any loss.

.

Want to know more about Trade Assurance, please contact us for further info or you can check the brief introduction as following.

.

.

Brief Introduction About Trade Assurance:

.

Detailed information please visit Alibaba :

http://tradeassurance.alibaba.com/bao/buyer_advertise.htm?tracelog=from_home_service



Contact Us

.

If you have any questions about our ev charging products (Type1 SAE J1772 / Type2 IEC 62196-2 EV Charging Plugs, Sockets, cables & EV charging Stations), please contact us fell free.

.

.

.

.
