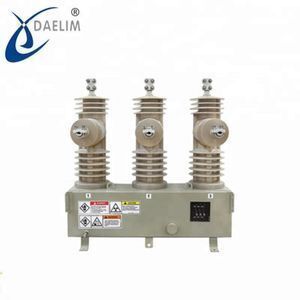

China factory 12kv 24kv 630a load break switch

Supplier: Beijing Daelim Green Ep Tech Co., Ltd.
Region: Beijing, China
Contact: Mr MARK XIAO
Price: $30.00 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Rated frequency:	50/60Hz;	Packaging Detail:	According to client's request. China factory 12kv 24kv 630a load break switch;
Rated breaking current:	630A;	Ambient tempreature:	+40℃;
Mechanical life:	2000 times;	Altitude:	≤2000m;
Product Name:	China factory 12kv 24kv 630a load break switch;	Port:	Tianjin/Shanghai etc.;
Model Number:	SDLAJ;	Place of Origin:	Beijing China;
Peak withstand current:	50kA;	Supply Ability:	10000 Set/Sets per Month Manufacture 12kv sf6 load break switch;
Rated sf6 pressure:	0.04~0.05MPa;	Payment Terms:	L/C,T/T,Western Union;
Rated current:	630A;	Max. Voltage:	12KV;
Max. Current:	630A;	Rated Voltage:	12KV;
Brand Name:	DAELIM;

China factory 12kv 24kv 630a load break switch

Product Description

Structural features
1. The load switch and combination device consist of the same insulated body switch body, the respective spring operating mechanism, the fuse head block and the fuse action impact trip system.
2. The upper and lower body shells are injected by epoxy resin to form an inflated inner cavity. The common moving contact can be rotated to complete the three functions of “combined-divided-grounded” in sequence, which can be added to the basic hand spring energy storage mechanism. It is equipped with electric closing and opening to realize remote control operation for users to choose.
3. The front of the mechanism box can be equipped with SF6 gas pressure gauge with position indicator. The pressure gauge is used to monitor the pressure change of SF6 gas. The position knowledge device is directly connected with the moving contact drive head, indicating that the working position of the moving contact is absolutely reliable.
4. There is a safety diaphragm behind the body. When an accident occurs in the interior of the arc extinguishing chamber and the pressure is too high, the overpressure gas can be broken through the diaphragm to ensure personal safety.
5. The load switch has a reliable mechanical interlock with the grounding switch, grounding switch and front door.

Packaging & Shipping

The standard procedure for making wooden case is as follows:

Receipt of information required for the type of goods to be wood barrel customers.
Measure and create original designs for customers.
Select the type of wood suitable for the requirements of the goods.
Determine the delivery time.
Check the wood barrel technique.
Handover confirmation of work efficiency.

Certifications

Safe Robust Eco-friendly Tempetature-resistant Economical

Our products meet the requirements of national and international standards. This has been confirmed by comprehensive type tests according to the latest IEC and ANSI standards.
