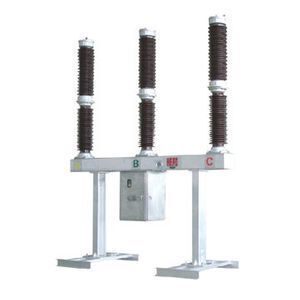

Outdoor H.V. gas live tank 400 kv circuit breaker

Supplier: Beijing Daelim Green Ep Tech Co., Ltd.
Region: Beijing, China
Contact: Mr MARK XIAO
Price: $35000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Mechanisam:	Hydraulic;	Brand Name:	DAELIM;
Color:	Black&White;	Certificate:	IEC 62271-100;
Rated voltage:	420kv;	Rated current:	4000A;
Poles Number:	3;	Rated short-circuit breaking current:	50kA;
Port:	Tianjin/Shanghai etc.;	Product name:	Outdoor H.V. gas live tank 400 kv circuit breaker;
Model Number:	LW25-420/Y;	Type:	High Voltage;
Packaging Detail:	According to client's request. Outdoor H.V. gas live tank 400 kv circuit breaker;	Rated short-circuit making current:	125kA;
Supply Ability:	100 Set/Sets per Quarter Outdoor H.V. gas live tank 400 kv circuit breaker;	Place of Origin:	China;
Payment Terms:	L/C,T/T,Western Union;	Rated frequency:	50/60 Hz;
Rated peak withstand current:	125kA;

Outdoor H.V. gas live tank 400 kv circuit breaker

1.Brief Introduction

H.V. A.C.porcelain type SF6 gas circuit breakers, with voltage from 40.5-550kV and rated current up to 4000A, manufactured by our company, are provided with

three kinds of operating mechanism, pneumatic, spring and hydraulic type.

Motor is used in spring mechanism to charge closing spring and charge opening spring at closing. Disk spring is used in hydraulic mechanism to be charged instead

of traditional compressed nitrogen gas for charge, and hydraulic driving is used at both opening and closing. Compressed air is used in pneumatic mechanism as driven

force for open while spring is used for close. The three kinds of operating mechanisms have their own features and are used in circuit breakers of different voltage

class respectively.Due to the unit structure in circuit breaker, there are advantages of minimized number of breaks,lower number of parts, simple structure,high

reliability and long period of inspection.

2.Normal Service Condition

2.1.Altitude:≤3000m

2.2.Humidity monthly:≤90%
2.3.Max .wind velocity:≤35m/s
2.4.Pollution class:Ⅲclass,IV class
2.5.Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
2.6.Max .temperature difference daily: 25K
2.7.Earthquake withstand density:8 degree
2.8.Ice coating: ≤10mm
2.9.Max. radiance from sun: 1000 W/m2
Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.

3. The Drawing and Technical Datasheet

1) Three-phase Mechanism

2) Single-phase Mechanism

No.	Item	Unit	LW25-420/Y
1	Rated Voltage	kv	420
2	Rated Frequency	Hz	50/60
3	Rated Current	ka	4000
4	Rated short-circuit breaking current	ka	50
5	Rated short-circuit making current	ka	80/100
6	Rated short-time withstand current and duration	ka	50(4S)
7	Rated peak withstand current	ka	125
8	Closing time	ms	65-95
9	Opening time	ms	18~30
10	Breaking time	ms	≤50
11	Rated SF6 gas pressure (at 20°C)	mpa	0.50;0.40
12	Creepage Distance	cm/kv	2.5/3.1
13	Operating mechanism		Hydraulic
14	Applied standards		IEC 62271-100

4. The Certificates

5. The Previous Cases

Packaging & Shipping

The standard procedure for making wooden case is as follows:

Receipt of information required for the type of goods to be wood barrel customers.
Measure and create original designs for customers.
Select the type of wood suitable for the requirements of the goods.
Determine the delivery time.
Check the wood barrel technique.
Handover confirmation of work efficiency.
