automatic 25 L spray dryer machine

Supplier: Henan Wadley CNC Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Wadley Li
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	automatic 25 L spray dryer machine;	Dimension(LWH):	17001100150;
Heating source:	electric and steam;	Brand Name:	wdl;
Keywords:	milk spray drying machine /spray dryer;	Capacity:	25 l;
Supply Ability:	500 Set/Sets per Day milk spray drying machine;	Voltage:	380V 50 HZ;
Usage:	Food Used;	Certification:	CE ISO;
Packaging Detail:	we use wooden box to load milk spray drying machine /spray dryer;	Type:	spray drying machine;
Key Selling Points:	Multifunctional;	Material:	stainless steel;
Application:	Medicine Processing,Chemicals Processing,Food Processing;	Raw material:	Liquid Form Material ,sample ,egg liquid;
Place of Origin:	Henan China;	Name:	milk spray drying machine;
Warranty:	1 Year;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops;
Weight:	200 KG;	Payment Terms:	L/C,T/T,Western Union;
Condition:	New;	After-sales Service Provided:	Online support;
Port:	qingdao or shanghai;	Power(W):	14kw;

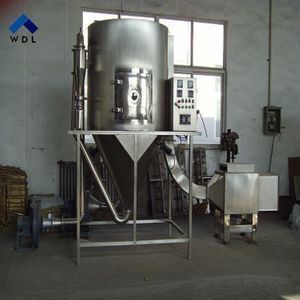

automatic 25 L spray dryer machine

LPG Series High Speed Centrifugal Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as solution , emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Technical parameters
Model	5	25	50	150	200	500	1000
Inlet temperature(℃)	140-350(Automatic control)
Outlet temperature( ℃)	80-90
Spraying method	High-speed centrifugal atomizer (Mechanical transmission or stepless variable frequency speed regulating)
Moisture evaporating ability(kg/h)	5	25	50	150	200	500	1000
Rotary speed(rpm)	25000	22000	21500	18000	16000		12000-13000
Body diameter(m)	1.2	1.9	2.2	2.96	3.36	5.2	7.6
Diameter of the atomizing disc	60		120	150			180-210
Transmission power(kw)	4.2	14	18	37	43	76	109
Max heating power(kw)	9	36	48	84	96	144
Recovered dry power(%)	>95
Nozzle's lifting height(m)	--	2.5		3.2
