Good Quality GeoMax Brand New Total Station

Good Quality GeoMax Brand New Total Station-

Zipp20 – Open WinCE®Series

Short Description of the New Condition Total Station:

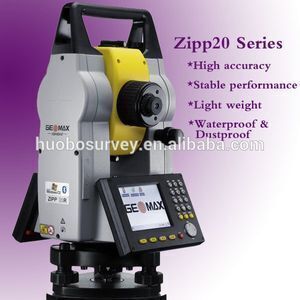

Zipp20 Series

Featuring GeoMax FieldGenius, X-Pad, Carlson SurvCE or any localised field software, the Zipp20 allows you to work the way that best fits your needs.

With integrated Bluetooth® and the capability to connect to any tablet or data logger, the Zipp20 provides you highest flexibility.

All this combined in a system offering a color & touch display, long range non-prism measurement and all your favorite Windows® CE applications make the Zipp20 the total station that “works when you do.”

Technical Parameter of the New Total Station:

Angle measurements

Accuracy 2”, 5”

Display resolution 1”, 5”, 10”

Method Absolute, continuous, diametrical

Compensation Quadruple axis

Distance measurements

Prism 3,000 m / 2 mm + 2 ppm

Reflectorless 3 mm + 2 ppm

Footprint 12 x 24 mm

Physical specifications

Weight 5.3 kg

Operating temp – 20°C to 50°C

Protection class IP54 dust and waterproof

Humidity 95 %, non-condensing

Interface

Keyboard Full alphanumeric, user definable

Display 3.5” Quarter-VGA color touch

screen (320 x 240 pixel),

10 lines x 30 characters, illuminated

Bluetooth Device Class II

Memory size 2 GB,internal

Interface USB

Removable memory USB memory stick

Power supply

Internal battery Removable Li-Ion 4.4 Ah

Operating time 8 hours

Plummet

Type Visible laser point

Accuracy 1.5 mm at 1.5 m instrument height

Operating system

Windows® CE

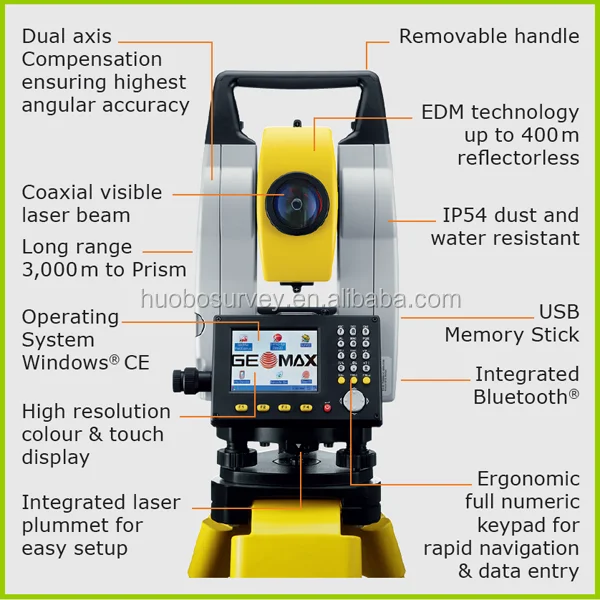

Main Features of the New Total Station:

Totally open Windows® CE

• Supports any field software

• Open for own development

• Personalized your system

Totally connected

• Integrated Bluetooth®

• USB memory stick

Totally featured

• 3.5" color & touch display

• 400 m non-prism range

• Coaxial visible laser beam
