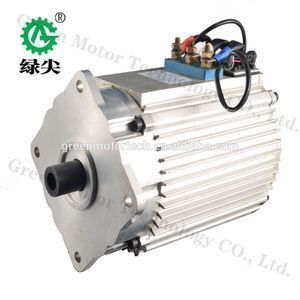

CE approved Chinese factory 5kw AC asynchronous motor kits for electric car

Supplier: Foshan Shunde Green Motor Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Esta ZHONG
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	5kw;	Payment Terms:	T/T,Western Union;
Voltage:	48v;	Supply Ability:	1000 Set/Sets per Month;
Noise:	45dB;	Rated speed:	2800rpm;
Speed(RPM):	3000-8000;	Type:	Alternating Asynchronous;
Brake:	hydraulic/mechanics;	Motor:	three phase,AC,brushless motor;
Port:	Shunde;	Insulation grade:	H;
Battery voltage:	48v DC,60V DC;	Packaging Detail:	Plywood box for axles and motors. Carton for controllers and others.;
Max system torque:	76N.m;	Duty:	S2-60min;
Protection grade:	IP54;

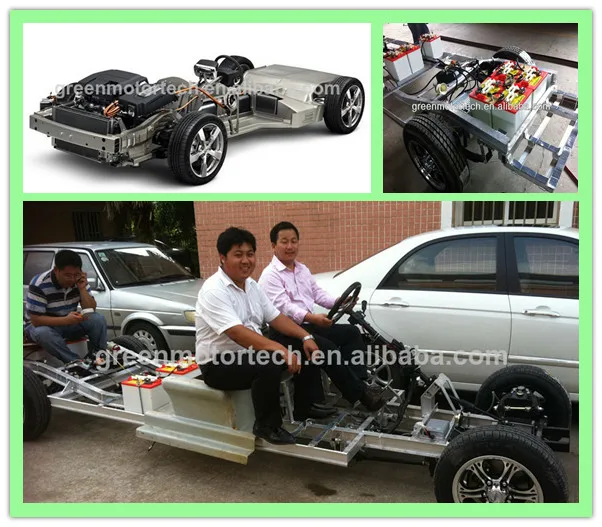

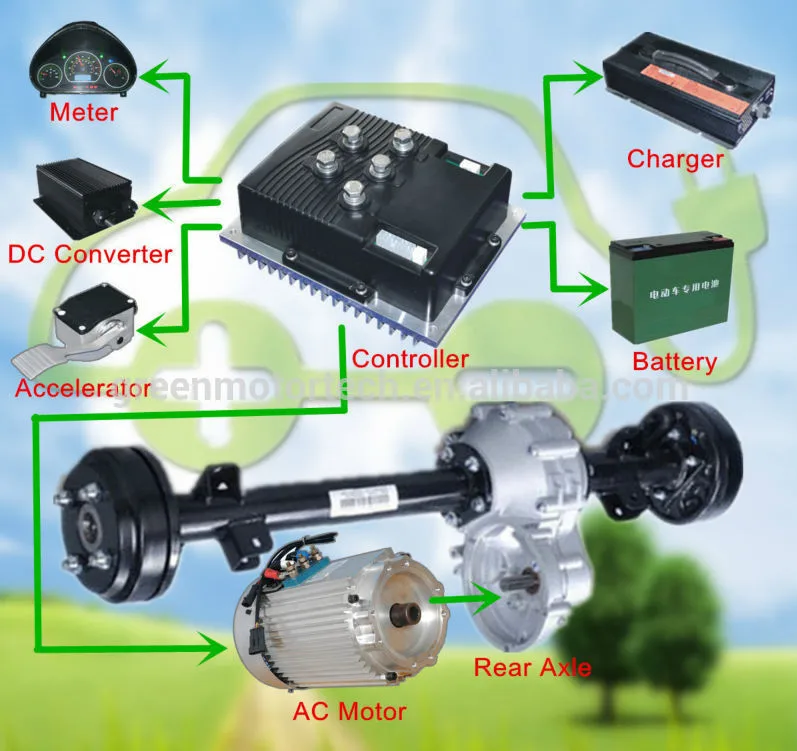

We provide the key parts of the electric vehicle( motor, controller, rear axle, gear box and etc ), moreover we provide one-stop service and integrated solutions!

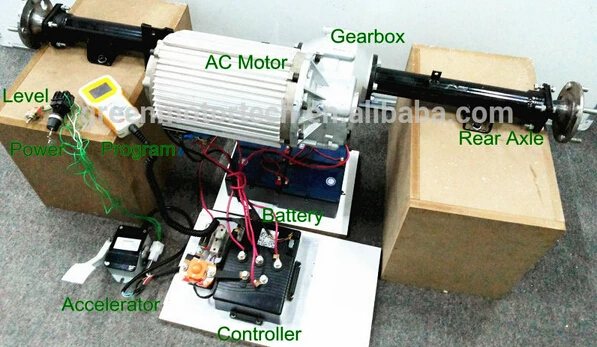

48V 5KW drive kits for electric vehicle

The advantages of drive kits of the Green Motor are as below:

1.Heartbeat price: Collaborative pricing strategy of motor, electric controller and axle, cutting extra profit for customers.

2.Integrated performance: Integrated drive assembly could solve the matching problem of the power transmission system components.

3. One-time delivery: Integration of all components of the production cycle, could improve the efficiency of supply chain.

4. One-stop service: The integrated service of providing assembly parts including pre-sale service, sale service, and after- sale service.

Technology

The power of motor	5.0KW
insulation grade	H
Battery voltage	72V,DC/48V,DC
Protection grade	IP54
Rated speed	2800rpm
Duty	S2-60min
Outer diameter	φ205
length	315

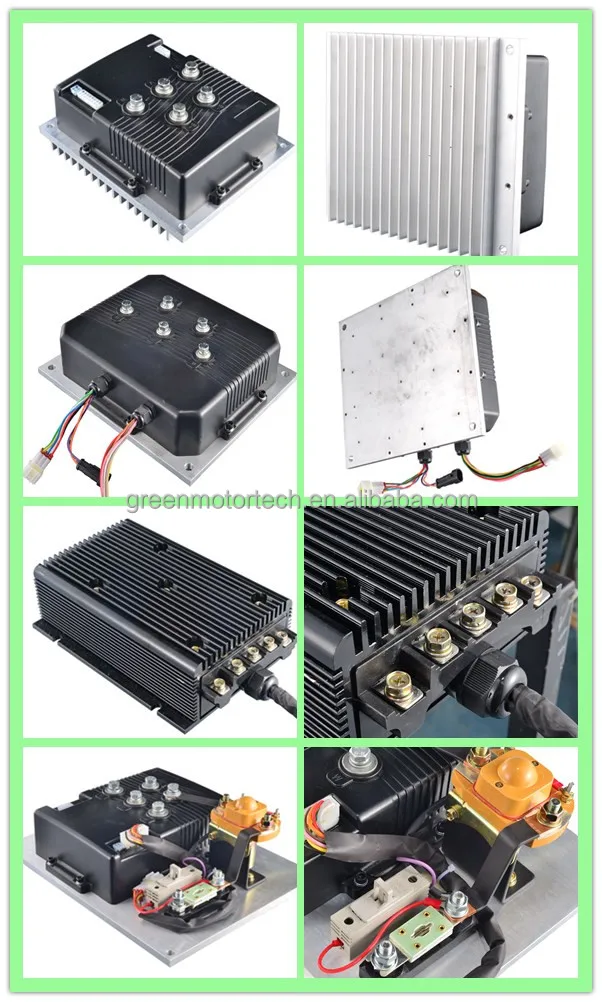

Rated output current(60mins)	175A
Maximum output current(2 mins)	400A
Digital input	8
Analog input	2
Contactor drive	3
Sensor interface	Available
CAN Assembly	Available
Controller temperature range	-40~50C
Controller protection grade	IP65

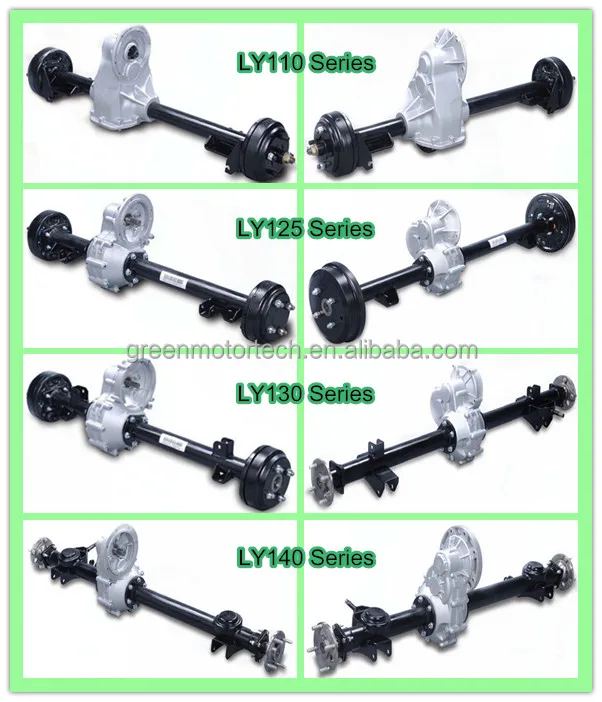

Rear axle ratio(can be designed as customer's requirement)	12.49:1
	18.12:1
	10.25:1
Spring center distance (can be designed according to customer requirements)	0° 660
Bias(Could be designed as customer's requirement)	125/130/52/80/51
Brake	Hydraulic pressure/Mechanics
Brake drum surface distance (can be designed according to customer requirements)	970/1270/1140/1100/1240
Tread (can be designed according to customer requirements)	1200MM
From 0 km·h to 100 km·h	6.8s
Maximum Ramp time(5°,10°,15°20°)	2min
The highest temperature rise	65C
noise	45dB
Vibration	under 5.9m/s2
The maximum torque / system load	76N.m
