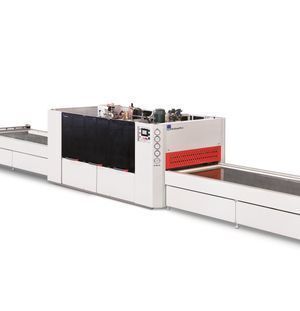

H&C WVP 2580A Positive&Negative Pressure Membrane Press Woodworking Machine

Supplier: Qingdao H&C Woodworking Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr. Kevin Wang
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao Port;	Model:	WVP2580A;
Payment Terms:	L/C,T/T,Cash;	Wroktable size:	2580*1280mm;
Dimension:	1060022502050mm;	Heating method:	Oil heating electric&aluminum(Down), electric(Air heating);
After-sales Service Provided:	Field maintenance and repair service;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	Standard marine export plywood case out side. Stretch film and plastic film for humidity inside. We can package according to your requests.;	Positive pressure:	04-0.5Mpa;
Cylinder diameter:	180mm*6;	Negative pressure:	-0.08Mpa;
Condition:	New;	Place of Origin:	Shandong China;
Warranty:	1 Year;	Total power:	57.2kw;
Supply Ability:	1000 Set/Sets per Year;	Brand Name:	H&C;
Weight:	11000kg;

Function

It can be used to cover PVC on the surface of the craft compound door, furniture,cabinet and sound box and to cover veneer and themal transfer mambrane on the single side of the door panel and furniture .It comes with the silicon membrane provided by our company.

Characteristics

1) Unique design, innovative, easy to oprate

2) It saves energy. This machine use near-infrared heating pipe,heating fast and temperature higher. Thereby it solves the problem of long time of pre-heating,and saves 30 minutes.

3) special steel plate worktable proofs against high emperature and corroision.

4) Advanced digital technology makes sure high level automatic and operate easily.

5). Direct connect vacuum pump, low noise, small size, high technology content.

Model	WVP3600A	WVP2580A	WVP2700A
wroktable size	3600*1280mm	2580*1280mm	2700*1310mm
Total power	60kw	57.2kw	57.2kw
Positive pressure	0.4~0.5Mpa	0.4~0.5Mpa	0.4~0.5Mpa
Negative pressure	-0.08Mpa	-0.08Mpa	-0.1Mpa
Heating method	Oil heating electric&aluminum(Down), electric(Air heating)	Oil heating electric&aluminum(Down), electric(Air heating)
Dimension	1350022502050mm	1060022502050mm	1100022502050mm
Cylinder diameter	Φ180mm*8	Φ180mm*6	Φ180mm*6
Weight	15000kg	11000kg	11500kg

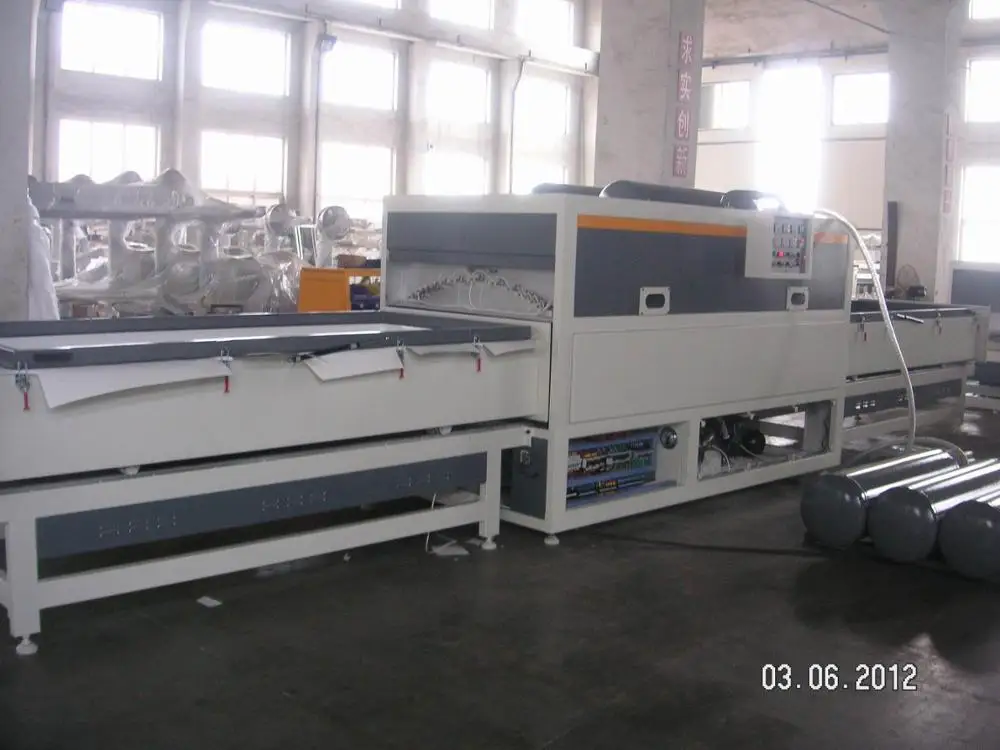

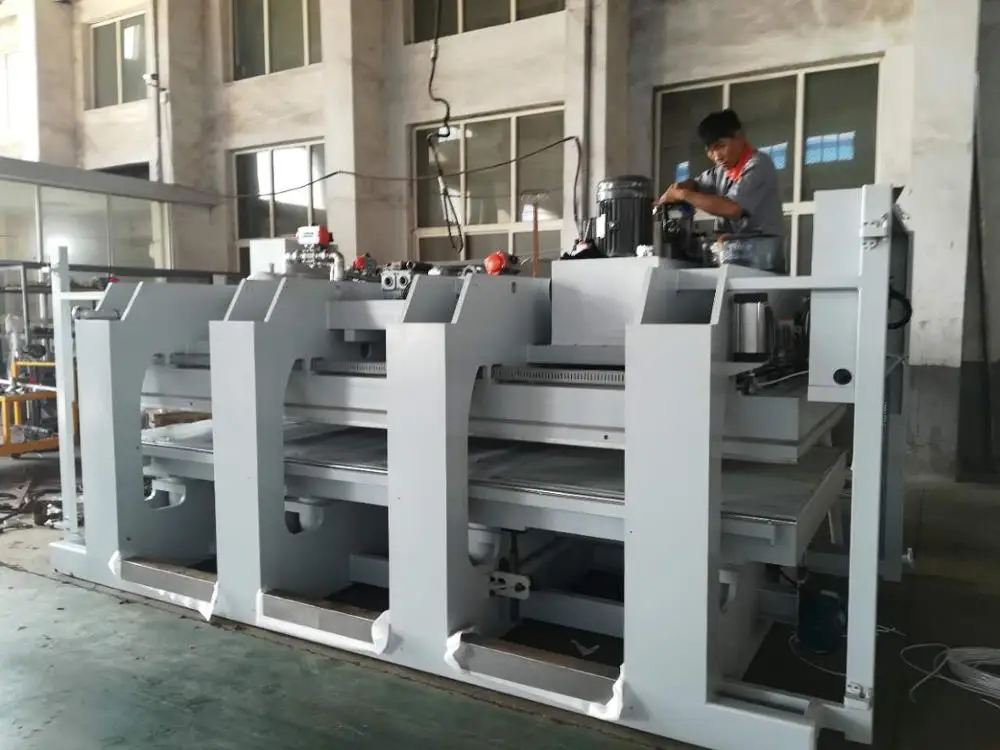

The machine is undermaking

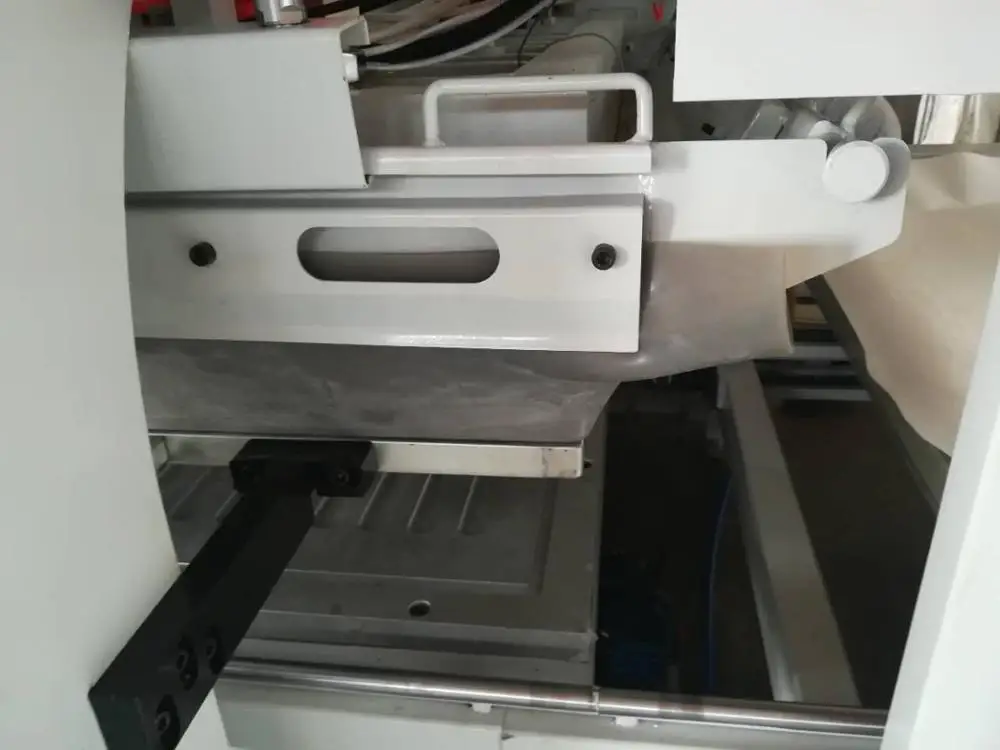

Imported silicon membrane

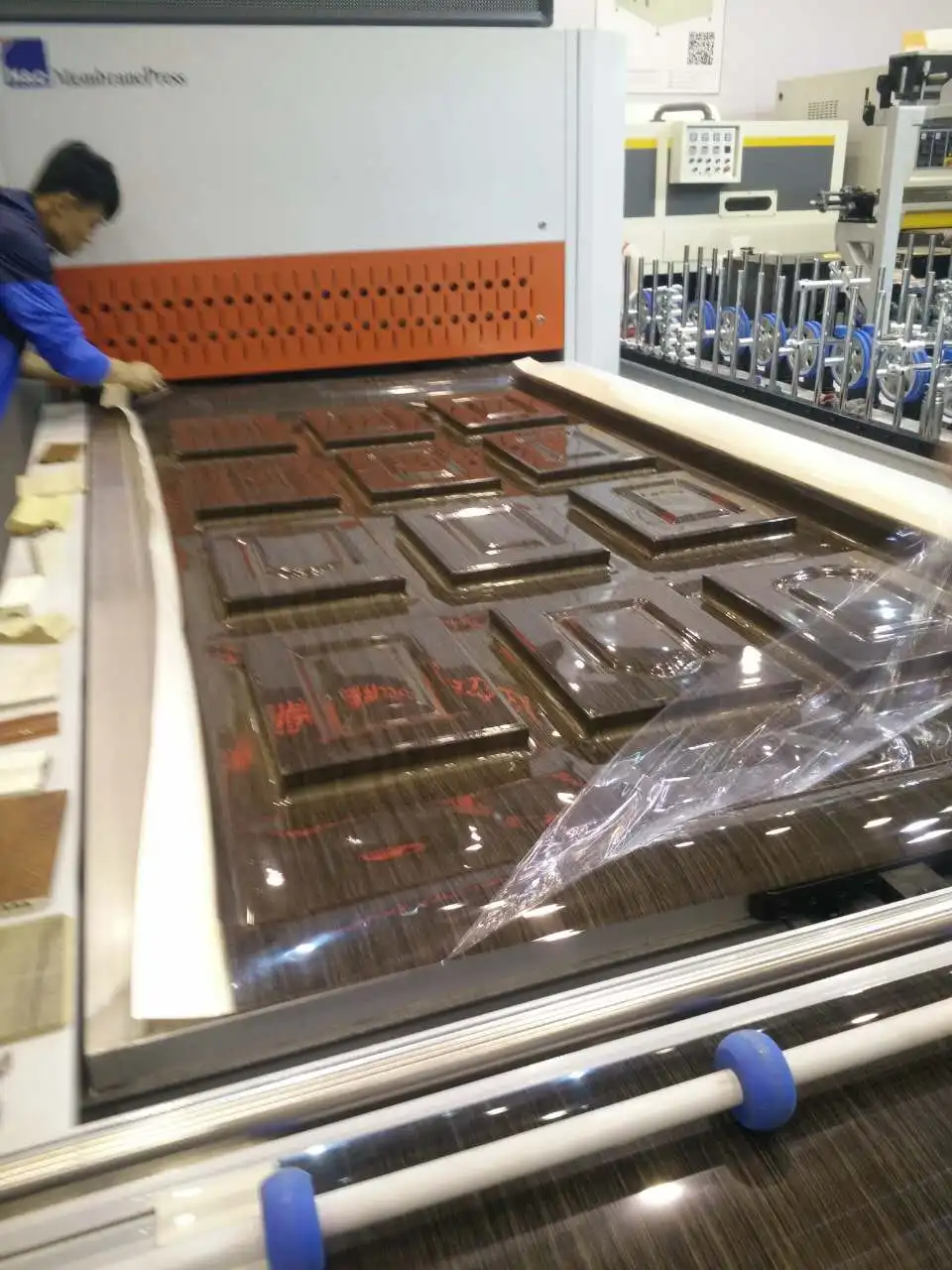

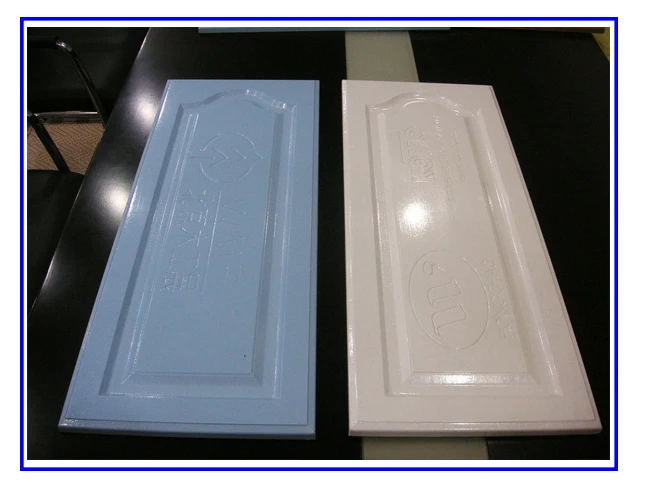

The samples

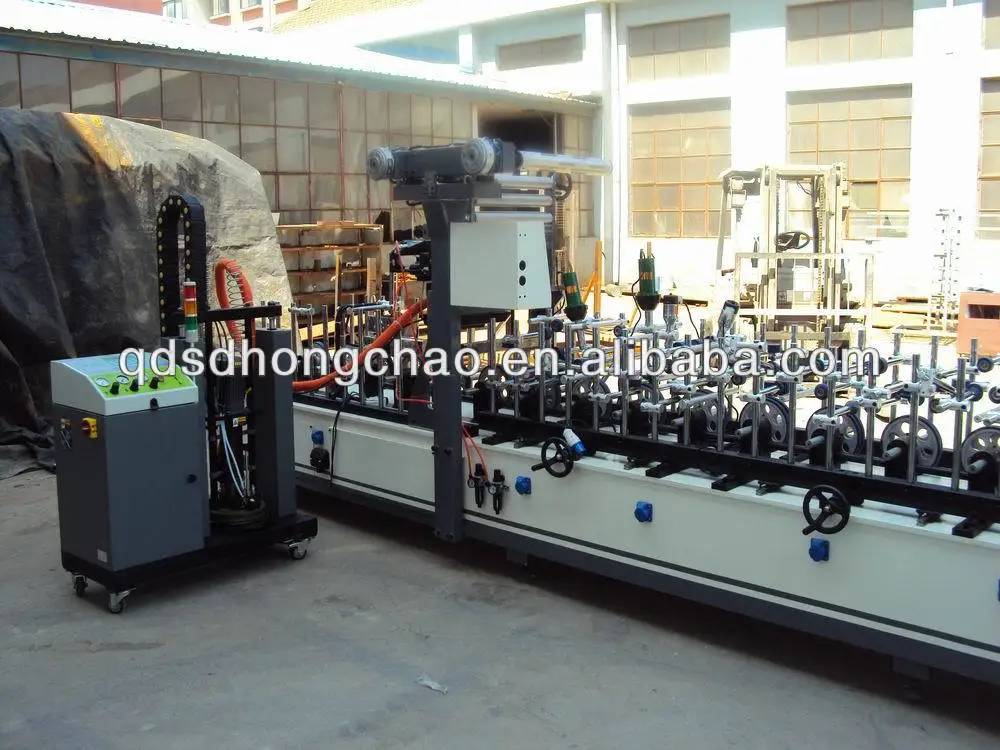

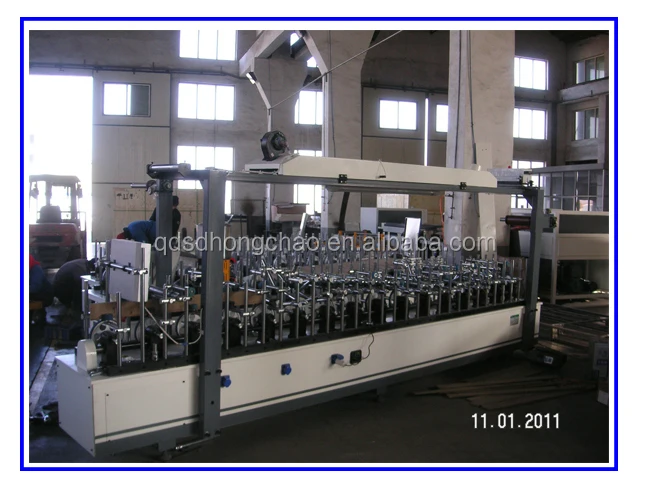

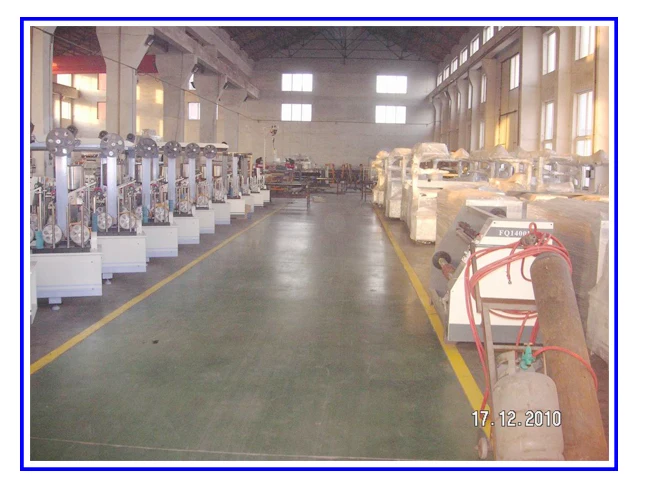

Other products of our company

Our company`s pruduction was appealing huge attention in woodworking machinery exhibition

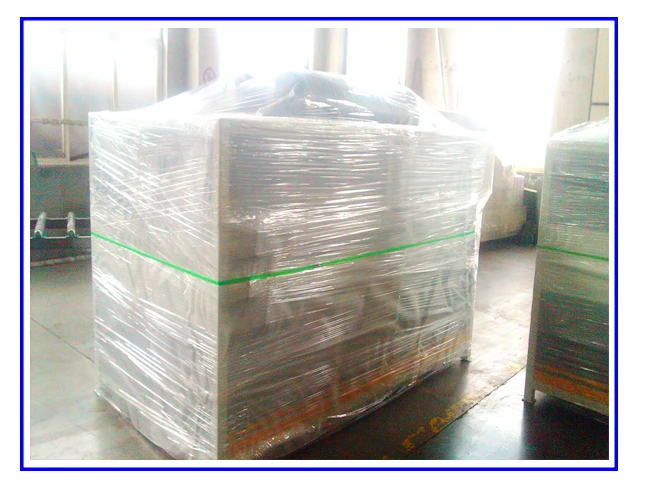

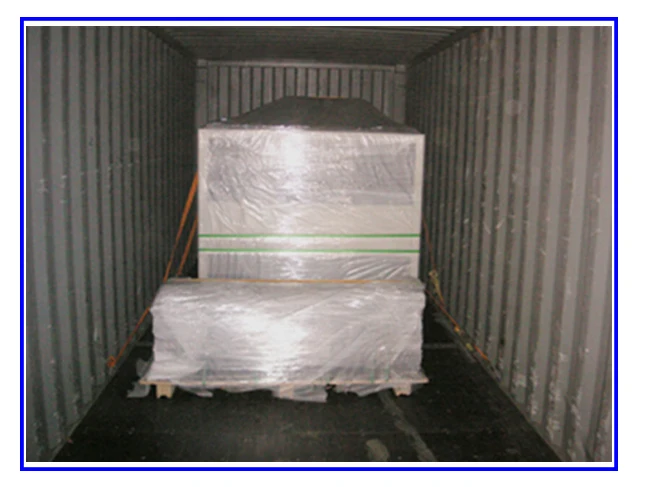

package and shipment

Our service

1)The customers can visit our company.

2) We accompany customers test the machine from beginning to the end.

3) Training our clients` staff how to install and how to use the machine.

4) Engineers avilable service machinary overseas.

about us

H&C woodworking machinery established in 2002,is a professional produce and sales of suiface lamination equipment and auxiliary processing equipment production-oriented enterprises, which has gone through 15 years. The company began to produce Positive &negative pressure membrane press machine , vacuum membrane press machine ,hot and cold plasitc wrapping machine , PUR wrapping machine ,PUR lamination machine ,veneer finger jointing series, PVC film slitter and other woodworking machines since the establishment.

After 15 years of development, we already have a strength technical team and management experience. the way of our brand developping is going on steadily.We are looking forward to wroking with all the customers to create a better future.

Welcome to our company!!!
