6000w 570L High Effect Digital Timer Ultrasonic Cleaner Ultrasonic Cleaning Equipment for Spare Parts

Product details
Machine Size:1180*1130*850 L*w*h;Ultrasonic Power:6000W;
Material:Stainless Steel;Tank Size:1000*950*600mm L*w*h;
Warranty:1 Year;Power(W):6000W;
Fuel:Electric;Selling Units:Single item;
Use:Degreasing;Temperature:20-80 degree;
Single gross weight:120 KG;Cleaning Process:Cold Water Cleaning;
Heating Power:10500w;Delivery Detail:0 days after payment;
Volume:570L;Single package size:100X90X90 cm;
Product:Ultrasonic Washing Machine;Timer:1-99 mins adjustment;
Machine Type:Industrial Ultrasonic Cleaner;After-sales Service Provided:Video technical support;
Certification:CE,RoHS,UL;Condition:New;
Dimension(L*W*H):1180*1130*850MM;Place of Origin:Beijing China (Mainland);
Cleaning Type:Industrial Ultrasonic Cleaner;Display:Digital Display;
Frequency:28k 40k or Required;Brand Name:QXULTRASONIC;

6000w 570L High Effect Digital Timer Ultrasonic Cleaner Ultrasonic Cleaning Equipment for Spare Parts



Product Description
Note: the price and time of transaction information is for reference only.

Advantage of Ultrasonic Cleaning



Compared to many other cleaning method,ultrasonic cleaning machine have advantages are as follow

  • Cleaning effect is good, high cleanliness and cleanness of all artifacts;
  • Cleaning faster, improve production efficiency;
  • Don’t need hand touching cleaning fluid, safe and reliable;
  • Deep blind hole, crack, and the product nook can be cleaned;
  • Save solvent, thermal energy, work place and artificial, etc.

Our Ultrasonic Industrial Cleaner Advantages



Tank Material

304SS or 316SS tank.Open die stamping molding without welds

Tank Thickness

1-2mm Long Life

Working Time

0-90 mins adjustment

Temperature Control

0-80 Degree

Power

Adjustment

Frequencyas required

Cable

Industrial standard, bold power cord heat-resistant, resistant to soften

High precision

Because ultrasonic energy can pass through tiny cracks and holes, so can be applied with any parts or assembled parts cleaning.For precision parts or assembled parts to be cleaned, ultrasonic cleaning often become the only can meet the special technical requirements of cleaning method;

Fast

ltrasonic cleaning is relatively regular cleaning method is much faster in terms of workpiece dusting descaling.Do not need to remove the assembly can be cleaned.The advantage of the ultrasonic cleaning can save labor force tend to make it the most economical way of cleaning;

Consistency

No matter be cleaning piece is big or small, simple or complex, single or batch or on automatic assembly line, the use of ultrasonic cleaning can get manual cleaning incomparable uniformity of cleanliness.

Design

The product design is beautiful and easy, the case is made of high-quality stainless steel embossing. antirust performance is good;Cleaning tank is made of high quality SUS304 stainless steel stamping,no welding,the waterproof performance is good.

Circuit

The power circuit use the new OS oscillators,precise control of vibration frequency and have feedback collection function, ultrasonic output more stable and reliable.

 Ultrasonic Transducer

The ultrasonic transducer adopts more long life of the whole aluminum structure,reduce heating,output steady.



Some Specification of Digital Ultrasonic Cleaner



Customize Various Different Size Ultrasonic Cleaning Machine according to the cleaning objects.



 Type

Frequency

(KHz)

Volume

(L)

Ultrasonic

 Power

(W)

Tank

 Size

(L*W*H MM)

Machine

 Size

(L*W*H MM)

Heaing

Power

(W)

Timer

(MIN)

Temperature

(℃)

QXCE2400

28 or 40k

175

2400

700*500*500

880*680*750

4500

0~99(h)

20~95

QXCE3000

28 or 40k

264

3000

800*600*550

980*780*800

6000

0~99(h)

20~95

QXCE3600

28 or 40k

330

3600

1000*600*550

1180*780*800

6000

0~99(h)

20~95

QXCE4200

28 or 40k

385

0-4200

1000*700*550

1180*880*800

9000

0~99(h)

20~95

QXCE4800

28 or 40k

450

0-4800

1000*750*600

1180*930*850

9000

0~99(h)

20~95

QXCE5400

28 or 40k

540

0-5400

1000*900*600

1180*1080*850

10500

0~99(h)

20~95

QXCE6000

28 or 40k

570

0-6000

1000*950*600

1180*1130*850

10500

0~99(h)

20~95

QXCE6600

28 or 40k

650

0-6600

1000*1000*650

1180*1180*900

12000

0~99(h)

20~95

QXCE7200

28 or 40k

715

0-7200

1100*1000*650

1280*1180*900

12000

0~99(h)

20~95

QXCE10800

28 or 40k

975

0-10800

1500*1000*650

1680*1180*900

12000

0~99(h)

20~95



♥ If you are interested in our product,

 Pls just feel free to send us your inquiry.

 We wil try our best to quote the competitive price for you!----- Contact Us Now



Some More informations of Customized Ultrasonic Cleaning Equipment



1)Tank: one tank or multiple-tank

2)Tank size: length *width * height (mm).

3)Cleaning tank material:

high quality SUS304 stainless steel of thickness 2 mm;

high-quality SUS316 stainless steel of thickness 2 mm.

Remark: SUS304 stainless steel is prevent from weak acid, weak base and weak corrosive. At present, the SUS304 is an agreed materials by market to used as steel cleaing tank. If you need a strong acid, strong alkali or corrosive solution as a kind of ultrasonic cleaner, you should use SUS316 stainless steel ultrasonic cleaning tank. SUS316 stainless steel is resistant to strong acid, alkali and corrosive liquid.

4)Frequency selection:

Usually,the frequency of industrial ultrasonic cleaner on the market is 40 KHZ or 28 KHZ at present.However,you can choose the frequency according to your cleaning items and the difficulty of cleaning item’s besmirch,then customized cleaners accordingly.

5)Ultrasonic Frequency Range:

Low Frequency :17 KHZ, 20 KHZ, 25 KHZ, 28 KHZ, 40 KHZ

High Frequency: 68 KHZ, 80 KHZ, 120 KHZ, 132 KHZ, 200 KHZ

Reminder: The smaller ultrasonic frequency bring the greater strength of cleaning. For example, 28 KHZ frequency’s cleaning effect is greater than 40 KHZ.

6)Ultrasonic Power Choose:

The Ultrasonic Power is calculated according to your tank size and the quantity of industrial ultrasonic transducer.
Heating power:

Generally, if there is not specified degrees, we will install the heat plate according to the capacity size, and temperature is 20-80 degrees.

7)Time Settings:

At present,1 — 30 minutes is ok. You can fixed the time to be 1-9999 minutes adjustable according to your cleaning items requirements.

8)Design of Ultrasonic.

Vibration plate type, sticky bottom type and hanging type. Till now, all of ultrasonic is the sticky bottom type on market. You can customize vibration plate type or hanging type according to your clean items requirements.

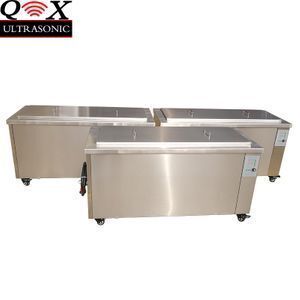

Product Picture
