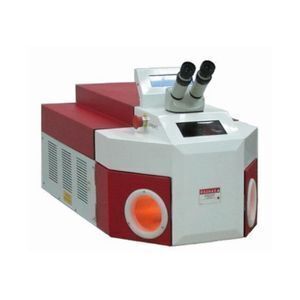

Professional wholesale stainless steel automatic dentistry used laser welding machine

Product details
Power consumption:Max.3.5KW;Payment Terms:L/C,T/T;
Input voltage:AC 220V 50Hz;Pulse Frequency:0-20Hz;
Certificate:ISO 9001;Condition:New;
Laser type:YAG;Max. Output Power:200W;
Usage:Spot welding;Supply Ability:400 Set/Sets per Year;
Place of Origin:Hubei China;After-sales Service Provided:Online support,Field installation, commissioning and training,Video technical support;
Warranty:2 Years;Wavelength:1064um;
Dimensions:900mm X 980mm X 500mm ; 1040mm X 580mm X 1030mm;Single Pulse Energy:70J;
Product name:stainless steel automatic dentistry used laser welding machine;Focal Spot Diameter:0.4 ~ 0.6mm;
Port:ANY PORT IN CHINA;Certification:CE;
Pulse Width:0.1-10ms;Keywords:Laser welding machine;
Cooling System:Water Cooling;Continuous working time:≥16h;
Packaging Detail:Crate case, it is suitable for long distance ocean / air and in land transportation Laser Equipment: 900mm X 980mm X 500mm External Chiller:1040mm X 580mm X 1030mm;Brand Name:CHUTIAN LASER;
Weight:200kg;

Professional wholesale stainless steel automatic dentistry used laser welding machine

Product Description

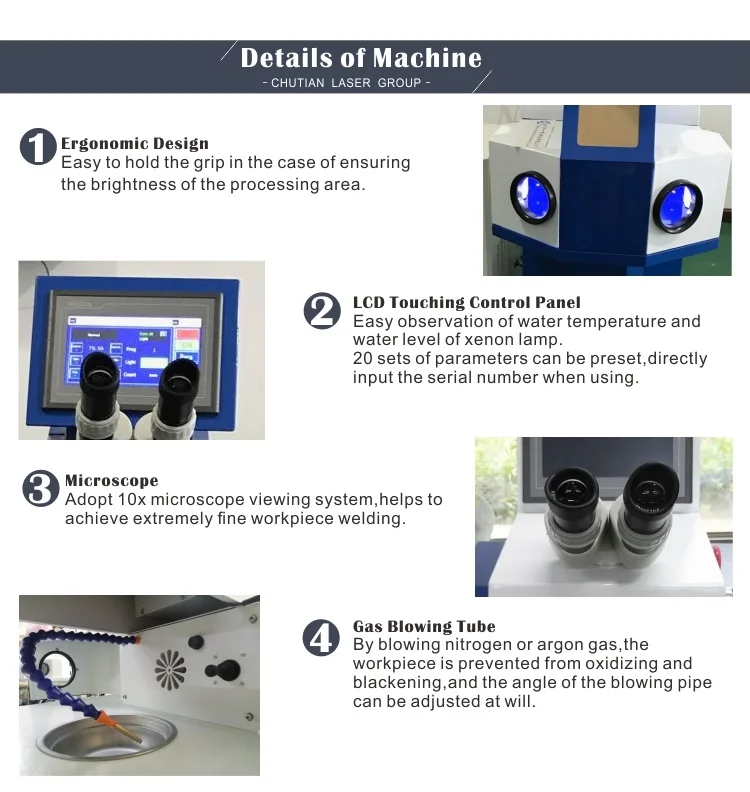

 Advantages:

Assemble with scanner
High efficient: 200W
Compact design
With optic fiber delivery
LED operation panel
Laser cavity with modern laser technology
Without alignment after changing the flash lamp
A coaxial CCD camera or microscope (optional)
3 axis moved working table
External chiller and inner cooling unit
Long-operation working time
OEM deign is available for mass purchasing
Various optional accessories for multi-function andspecial parts

 Specification:

Laser Wavelength   1064μm
Pulse Width     0.1-10ms (adjustable)
Focal lens    F=75mmΦ=30mm
Output Power  Max. 200W(Main Beam)
Numbers of Fiber Cables       ≤70J (Main Laser Beam Single Pulse     Power)
Efficiency of Fiber coupling transmit    ≥75%
Min. Spot Diameter  0.6mm
Optic Fiber:  AS 600, length:5m (from Germany)
Scanner:   2DScanner
Scanning speed:     Upto 7000mm/s
Scanning size:   Φ110mm (F-theta 163mm)
Spot Diameter   0.4 ~ 0.6mm
Dimension (mm)       900mm X 980mm X 500mm
Weight   380Kg



Optional:

External Chiller
Cooling capacityup to 8KW
Low-flow and over temperature protection
Dimension1040mm X 580mmX 1030mm
Observing System
CCD + Co-axis observed Mounting +Monitor
Microscope (20X)



Application

Applicable Industry:

1. Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic,Chemical, automobile manufacture and other industries.
2. The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor,Electromagnetic valve, and drive starting stator.
3. The close welding of lithium ion batteries, such as mobile phone batteries and power batteries.
4. In metallurgy industry, such as silicon steel plate welding.
5. The welding of engine and engine lamina in application military industry.
6. The precise spot welding of the electronic components and close welding of relay.
7. In electrical equipments industry, such as silicon steel sheet welding, the rotor of the airconditioner Drive welding, and creepage protection welding.



Applicable Materials:

Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

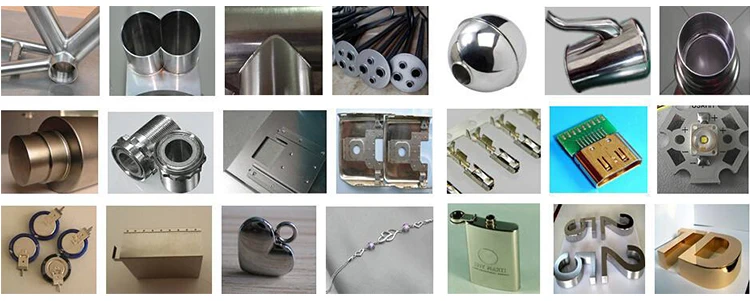

Sample show:

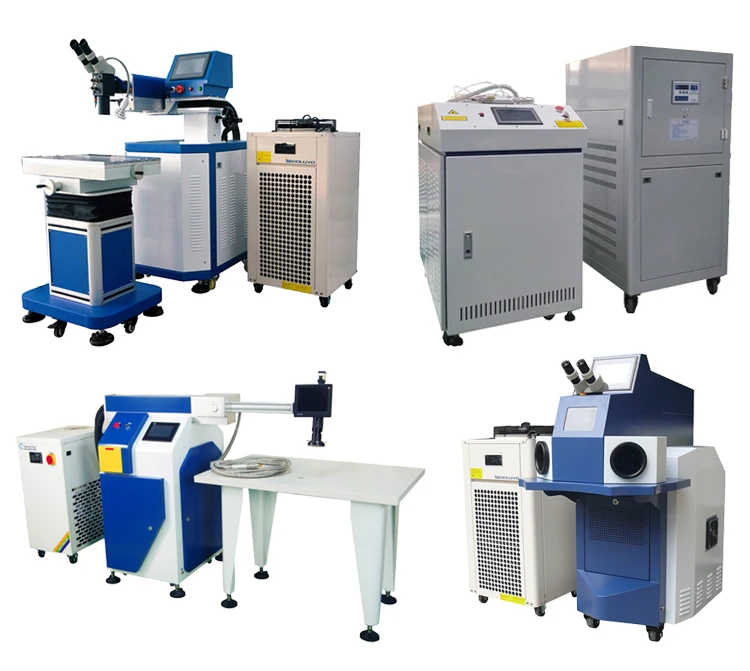

Hot Products

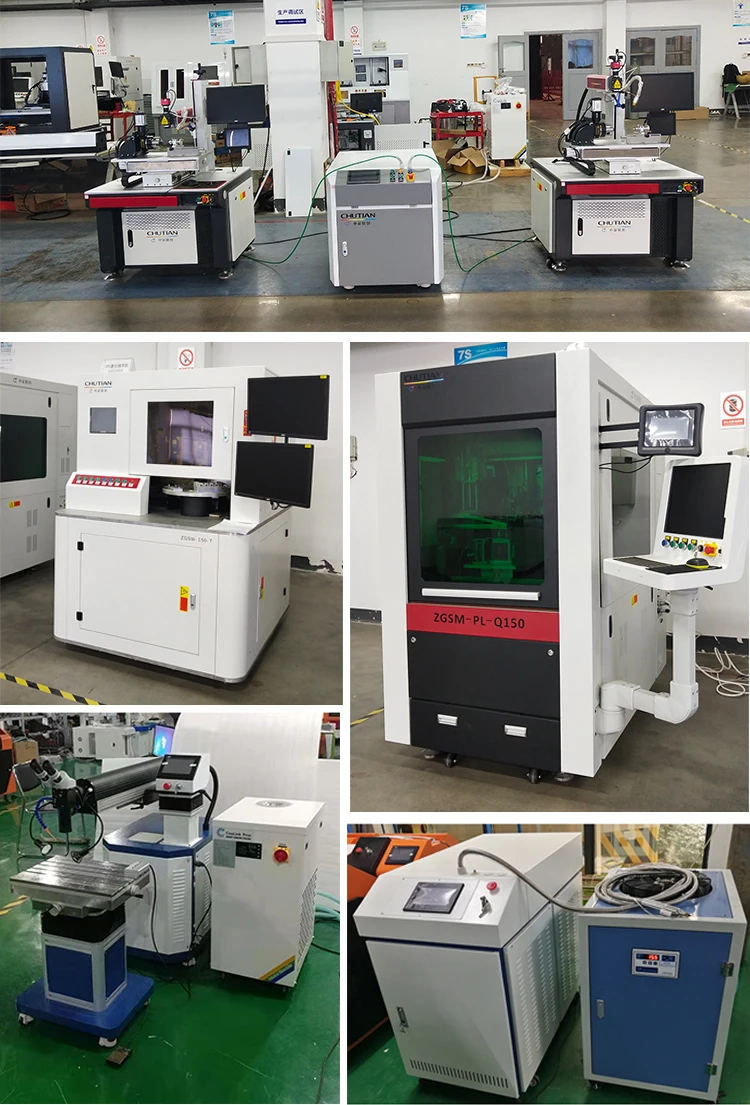

Company Information

As a leading laser system manufacturer, Wuhan Chutian Industrial Laser Equipment Co., Ltd. has been devoted to the design and production of industrial laser systems for over 30 years. Based on the domestic and international cooperation with laser, laser system and laser related components manufacturers worldwide.

From high power to small power Chutian Laser has been a major laser solution provider as Laser marking, Laser welding, Laser cutting as well as laser micro machining and 3D printing in China.

After 30 years of developing we've been able to continually upgrade with European and American laser technology. We sincerely welcome all the customers to visit our company!



Learn more about us, welcome to click https://chutianlaser.en.alibaba.com





Packaging & Shipping

PackagingWood case or as per required.
Delivery TimeThe delivery lead time would be 7-15 day against down payment.
ShippingAs for the wholesalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder



FAQ

Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q2: How was the machine guarantee?
A2: We offer you 12 months guarantee.

Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.

Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
