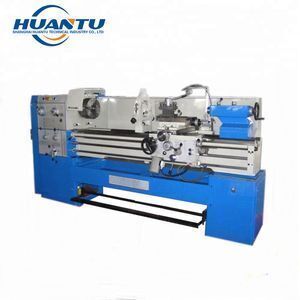

lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe

Product details
Single package size:145X115X160 cm;Certification:CE ISO;
Selling Units:Single item;Max Swing Over Bed:360/500/600/660/800mm;
Max Swing Over Cross Slide:190/225/325/360mm;Key Selling Points:Automatic;
Machine Color:Customer Pointed;Weight (KG):900;
CNC Control System:GSK;Single gross weight:2,250 KG;
Automatic Grade:Automatic;Dimension(L*W*H):2570*1620*1940mm;
Bed Width:360/400mm;Condition:New;
Package Type:Wooden Box;After-sales Service Provided:Engineers available to service machinery overseas;
Place of Origin:Shanghai China;Spindle Hole:52/65/80mm;
Type:Horizontal;Brand Name:Huantu Machinery;
CNC or Not:Normal;Package Preview:https://sc01.alicdn.com/kf/HTB1WV7KmFkoBKNjSZFkq6z4tFXa2.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1C0c1mOAnBKNjSZFvq6yTKXXaU.jpg_640x640.jpg;
Workpiece Cutting Length:750\1000\1500\2000\3000mm;Weight:3000kg;
Warranty:5 years;Voltage:Customer's Requirement;
Toolpost Brand:Hongda;After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training;
Applicable Industries:Manufacturing Plant;Power(W):7.5kw;
Max Swing Over Gap:520mm;Max. Swing Diameter:500mm;
lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe




1.Precision ground and hardened bedways.



2.The spindle is supported with precision roller bearings.



3.Head stock gears are made of high quality steel ground and hardened.


4.Easy operating speed change levers.



5.Removable gap is provided for larger diameter work.



6.Easy operating gear box has various feeds and thread cutting function.



7.Whole or segregate foot stand for optional.





lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe.



Model

CY6266

CY6280

Capacity





Swing over bed

660mm

800mm

Swing over cross slide

440mm

570mm

Swing in gap diameter

900mm

1035mm

Length of gap

250mm

250mm

Center height

330mm

400mm

Distance between centers

1500/2000/3000mm

1500/2000/3000mm

Width of bed

400mm

400mm

Max.section of tool

25x25mm

25x25mm

Max.travel of cross slide

368mm

420mm

Max.travel of compound rest

230mm

230mm

Headstock





Spindle bore

Φ105mm

Φ105mm

Spindle nose

D1-8

D1-8

Taper of spindle bore

Φ113mm(1:20)/MT5

Φ113mm(1:20)/MT5

Spindle speed number

16

16

Range of spindle speed

25-1600r/min

25-1600r/min

Feeds and threads





Leads crew pitch

Φ40mmX2T.P.I.orΦ40mmX12mm

Φ40mmX2T.P.I.orΦ40mmX12mm

Inch threads range

7/16-80T.P.I.(54kinds)

7/16-80T.P.I.(54kinds)

Metric threads range

0.45-120mm(54kinds)

0.45-120mm(54kinds)

Diametrical pitches range

7/8-160DP(42kinds)

7/8-160DP(42kinds)

Module pitches range

0.25-60MP(46kinds)

0.25-60MP(46kinds)

Longitudinal feeds range in metric lead screw

0.044-1.48mm/rev(25kinds)

0.044-1.48mm/rev(25kinds)

Longitudinal feeds range in inch lead screw

0.00165″-0.05497″/rev(25kinds)

0.00165″-0.05497″/rev(25kinds)

Cross feeds range in metric lead screw

0.022-0.74mm/rev(25kinds)

0.022-0.74mm/rev(25kinds)

Cross feeds range in inch lead screw

0.00083″-0.02774″/rev(25kinds)

0.00083″-0.02774″/rev(25kinds)

Tailstock





Quill travel

235mm

235mm

Quill diameter

Φ90mm

Φ90mm

Quill taper

MT5

MT5

Motor





Power of main motor

7.5KW(10HP)

7.5KW(10HP)

Power of coolant pump

0.09KW(1/8HP)

0.09KW(1/8HP)

Dimension and weight





Packing size(LXWXH)cm

324/374/474X114X184mm



324/374/474X114X191mm



Net weight

3060/3345/3710KG

3220/3505/3870KG

Gross weight

3535/3835/4310KG

3705/4005/4480KG



lathe machine cnc lathe machine universal, cnc lathe tools, cnc machine lathe





Three jaw chuck

Sleeve and center

Toolbox&tools 1 set

Four jaw chuck

Face plate

Driving plate

Steady rest

Follow rest

Thread dial

Quick change tool post

Taper turning attachment.
