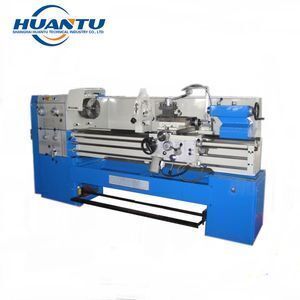

horizontal lathe machine cnc vertical lathe, fanuc servo motor, heavy duty lathe machine price

Supplier: Shanghai Huantu Technical Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Cindy He
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Workpiece Cutting Length:	750\1000\1500\2000\3000mm;	Single gross weight:	2,400 KG;
Max Swing Over Cross Slide:	190/225/325/360mm;	Bed Width:	360/400mm;
Type:	Horizontal;	Machine Color:	Customer Pointed;
Place of Origin:	Shanghai China;	Automatic Grade:	Automatic;
Selling Units:	Single item;	Package Preview:	https://sc01.alicdn.com/kf/HTB1N.uZJVuWBuNjSszbq6AS7FXah.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1aYajdUD.BuNjt_h7q6yNDVXap.jpg_640x640.jpg;
Voltage:	Customize;	Package Type:	Wooden BOx;
Spindle Hole:	52/65/80mm;	Max. Swing Diameter:	360;
CNC or Not:	Normal;	Single package size:	345X115X160 cm;
After-sales Service Provided:	Overseas service center available;	Weight:	2400KG;
Dimension(LWH):	245011501600MM;	Brand Name:	HTM;
Condition:	New;	Power(W):	11KW;
Max Swing Over Gap:	520mm;	Certification:	CE,ISO,SGS;
Max Swing Over Bed:	360/500/600/660/800mm;

horizontal lathe machine cnc vertical lathe, fanuc servo motor, heavy duty lathe machine price

1.Precision ground and hardened bedways.

2.The spindle is supported with precision roller bearings.

3.Head stock gears are made of high quality steel ground and hardened.

metal lathe machine metal lathe horizontal lathe
4.Easy operating speed change levers.

5.Removable gap is provided for larger diameter work.

6.Easy operating gear box has various feeds and thread cutting function.

7.Whole or segregate foot stand for optional.

horizontal lathe machine cnc vertical lathe, fanuc servo motor, heavy duty lathe machine price

Model	CQ6266	CQ6280
Capacity
Swing over bed	660mm	800mm
Swing over cross slide	440mm	570mm
Swing in gap diameter	900mm	1035mm
Length of gap	250mm	250mm
Center height	330mm	400mm
Distance between centers	1500/2000/3000mm	1500/2000/3000mm
Width of bed	400mm	400mm
Max.section of tool	25x25mm	25x25mm
Max.travel of cross slide	368mm	420mm
Max.travel of compound rest	230mm	230mm
Headstock
Spindle bore	Φ105mm	Φ105mm
Spindle nose	D1-8	D1-8
Taper of spindle bore	Φ113mm(1:20)/MT5	Φ113mm(1:20)/MT5
Spindle speed number	16	16
Range of spindle speed	25-1600r/min	25-1600r/min
Feeds and threads
Leads crew pitch	Φ40mmX2T.P.I.orΦ40mmX12mm	Φ40mmX2T.P.I.orΦ40mmX12mm
Inch threads range	7/16-80T.P.I.(54kinds)	7/16-80T.P.I.(54kinds)
Metric threads range	0.45-120mm(54kinds)	0.45-120mm(54kinds)
Diametrical pitches range	7/8-160DP(42kinds)	7/8-160DP(42kinds)
Module pitches range	0.25-60MP(46kinds)	0.25-60MP(46kinds)
Longitudinal feeds range in metric lead screw	0.044-1.48mm/rev(25kinds)	0.044-1.48mm/rev(25kinds)
Longitudinal feeds range in inch lead screw	0.00165″-0.05497″/rev(25kinds)	0.00165″-0.05497″/rev(25kinds)
Cross feeds range in metric lead screw	0.022-0.74mm/rev(25kinds)	0.022-0.74mm/rev(25kinds)
Cross feeds range in inch lead screw	0.00083″-0.02774″/rev(25kinds)	0.00083″-0.02774″/rev(25kinds)
Tailstock
Quill travel	235mm	235mm
Quill diameter	Φ90mm	Φ90mm
Quill taper	MT5	MT5
Motor
Power of main motor	7.5KW(10HP)	7.5KW(10HP)
Power of coolant pump	0.09KW(1/8HP)	0.09KW(1/8HP)
Dimension and weight
Packing size(LXWXH)cm	324/374/474X114X184mm	324/374/474X114X191mm
Net weight	3060/3345/3710KG	3220/3505/3870KG
Gross weight	3535/3835/4310KG	3705/4005/4480KG
