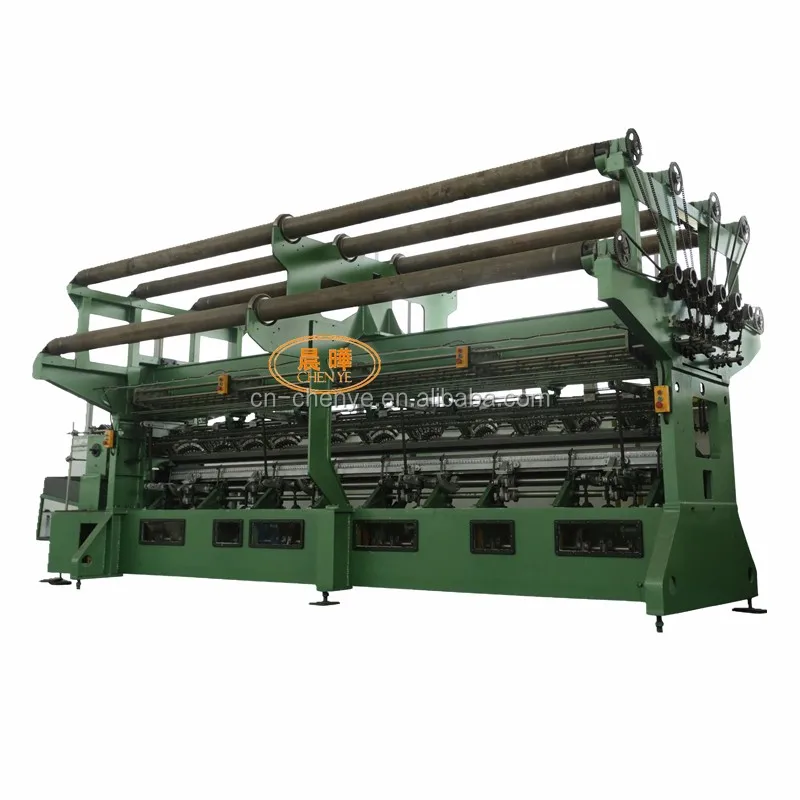

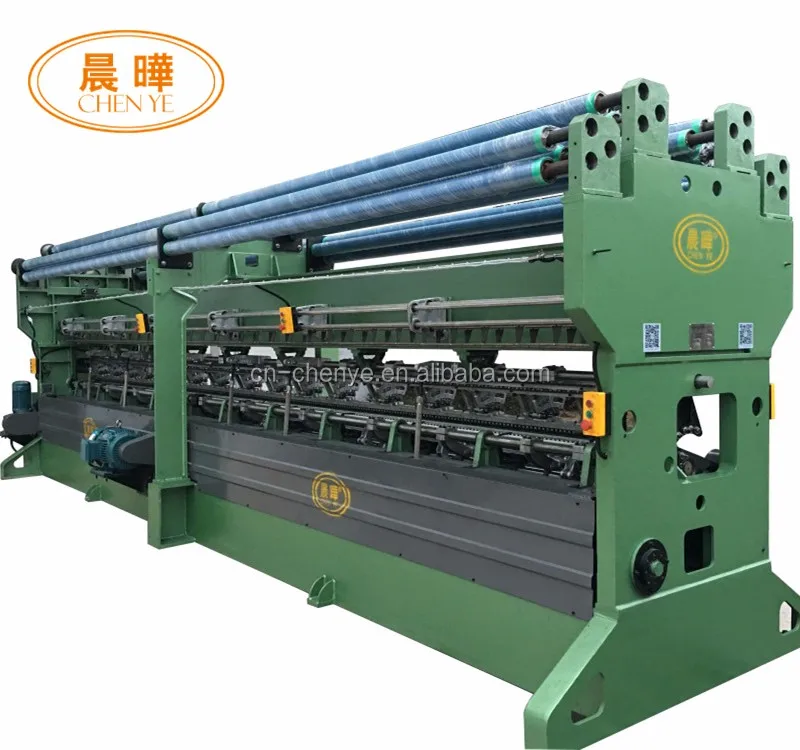

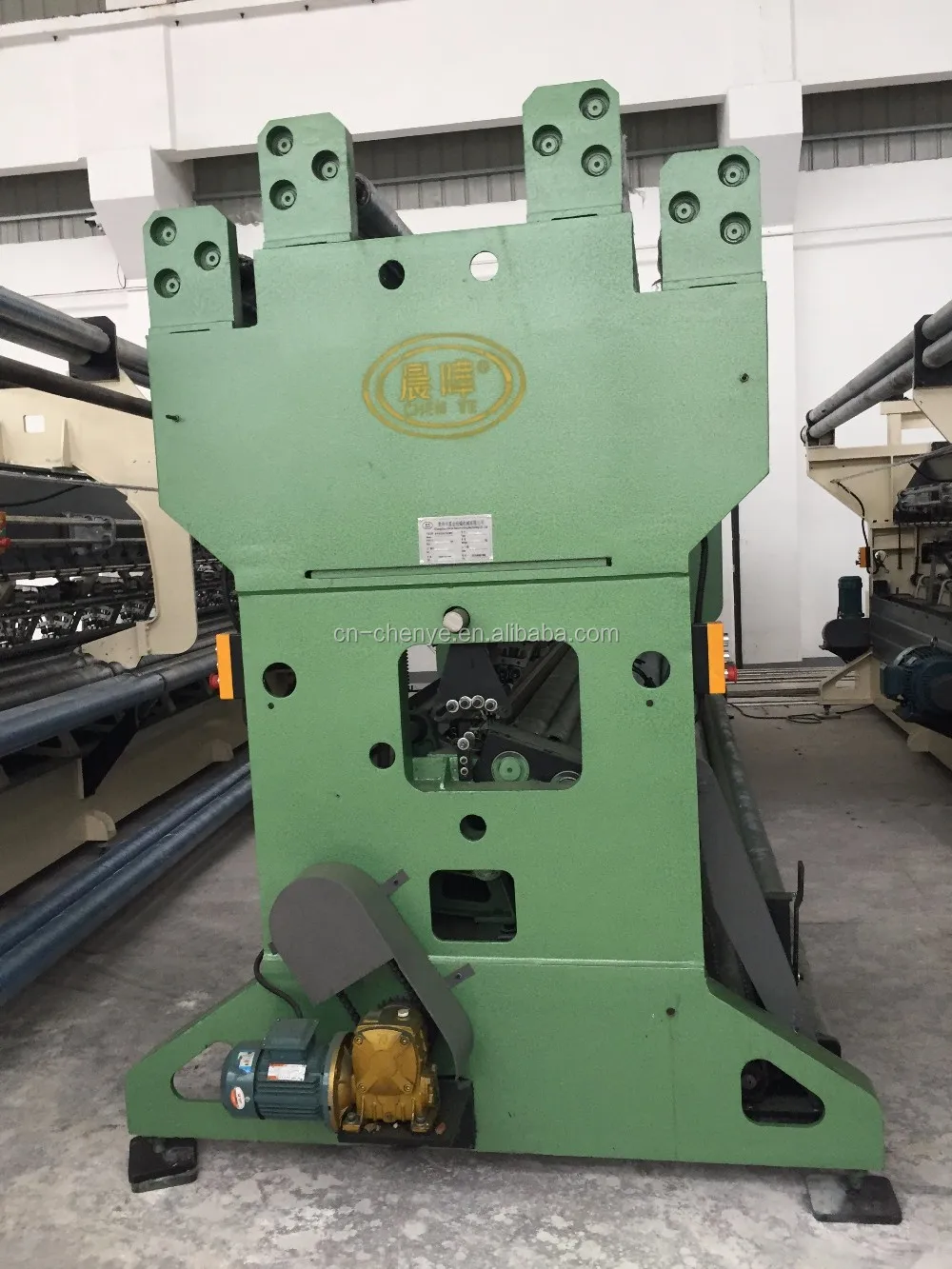

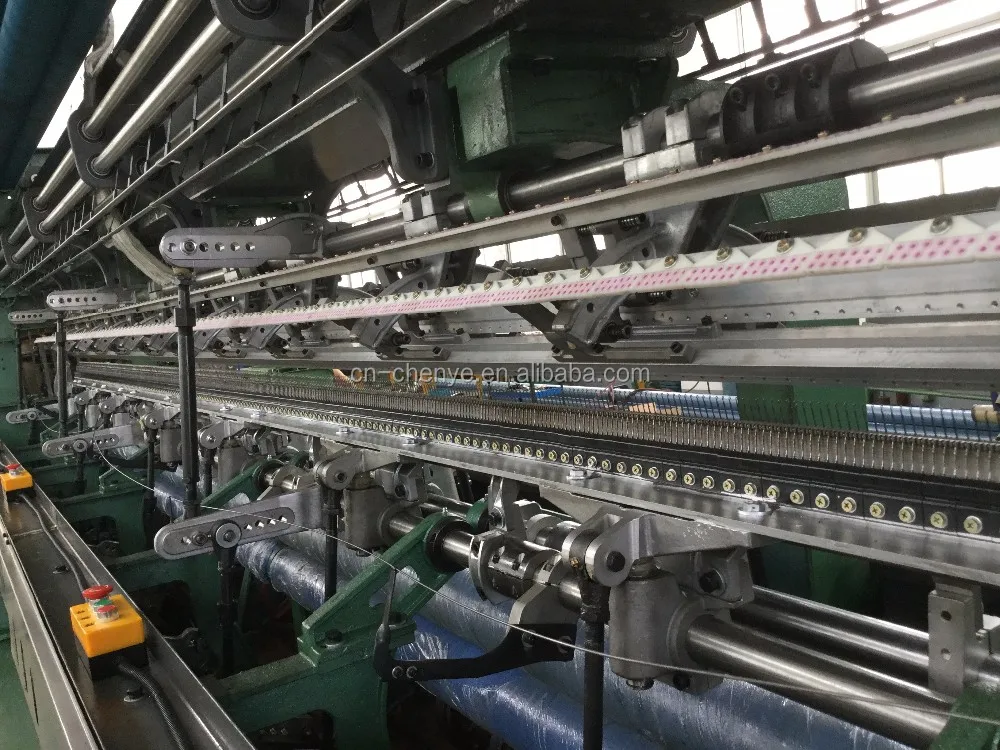

agricultural nets making raschel warp knitting machine with high quality

Supplier: Changzhou Chenye Warp Knitting Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Grace Zhuang
Price: $28050.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Working Width:	110'',135'',150'',180'',220'',260'',340'';	Place of Origin:	Jiangsu China;
Voltage:	According to buyer country;	Warranty:	ONE YEAR;
Product Name:	Raschel Warp Knitting Machinery;	Model:	SRCA;
Power(W):	According to buyer country;	Brand Name:	Chenye;
Supply Ability:	15 Set/Sets per Month;	Dimension(LWH):	Different size;
Packaging Detail:	40HQ Container.;	Features:	Fast and high production;
Payment Terms:	L/C,T/T;	Weight:	Different weight;
Application:	Producing net;	Certification:	SGS.,ISO9001;
Production Capacity:	80%;	Knot type:	E6,E7,E8,E9,E12,E14;
Automatic Grade:	Manual;	Bars:	2~6 bars;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Shanghai, Ningbo;

Product Description

Product Application

*This machine is used to produce knotless fishing net,shading net,protecting net,purse net,garment net etc...

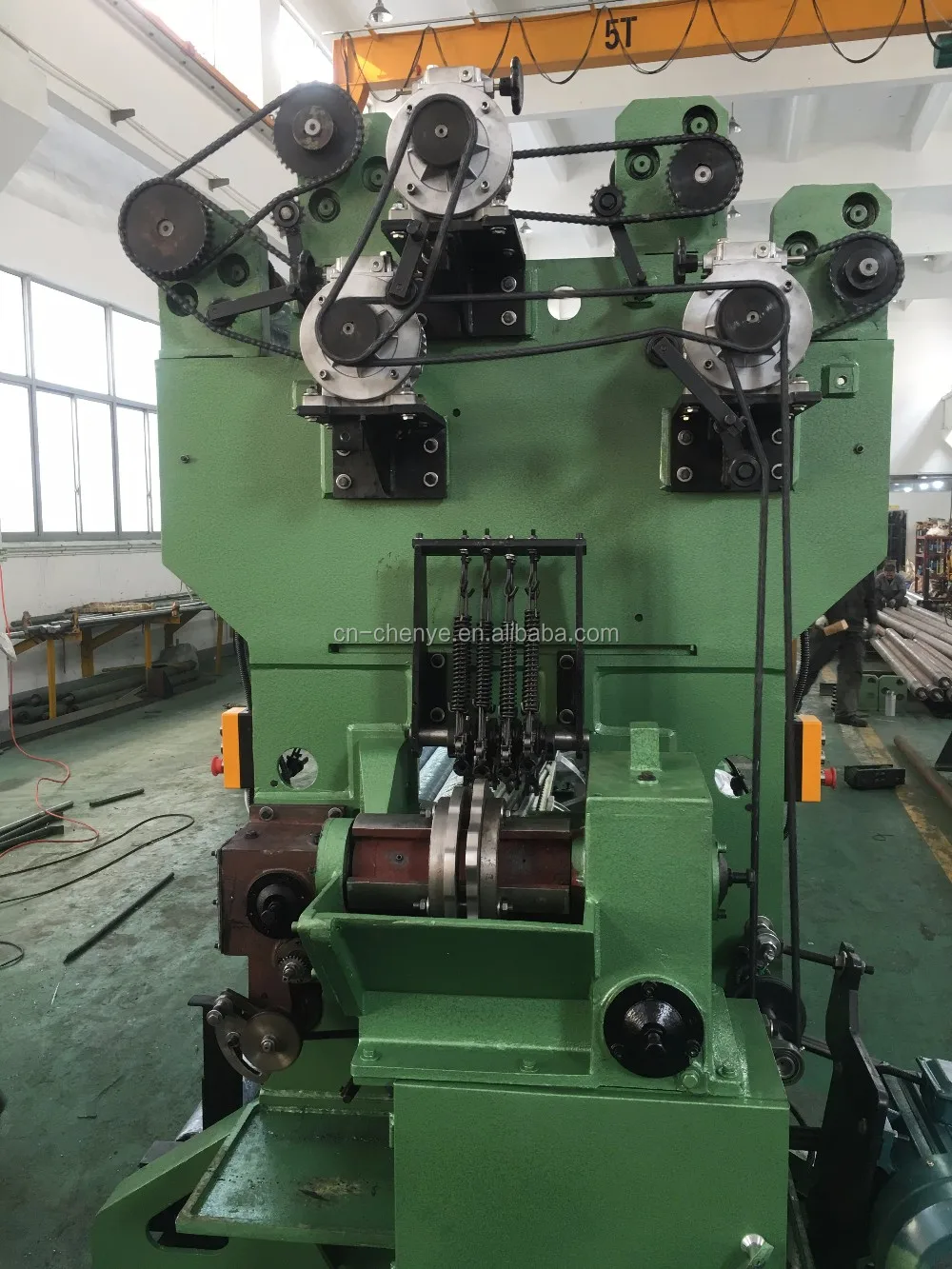

*This type machine is oppen cam gearing and 3-rollers positive yarn let-off system

*Gauge:E6,E7,E8,E9,E12,E14

*Number of bars:2~6

*Take-up Manner: 2rollers with friction drive; Center shaft drive; 2 rollers with friction drive;Separately-standing;Center shaft drive;Separately-standing.

Machine Type	Machine Size	Machine Weight(kg)	Main Motor(KW)	Inching Motor(KW)	Speed(rpm)
SRCA-135	4300x1700x2300	4500	3	0.37	200-530
SRCA-150	4900x1700x2300	5000	3	0.37	200-530
SRCA-180	6100x1700x2400	7500	5.5	0.75	200-530
SRCA-220	7300x1700x2400	9000	5.5	1.5	200-500
SRCA-260	8200x1700x2400	11000	7.5	1.5	200-480
SRCA-340	10300x1700x2400	14000	11	1.5	200-450

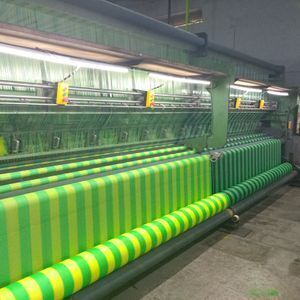

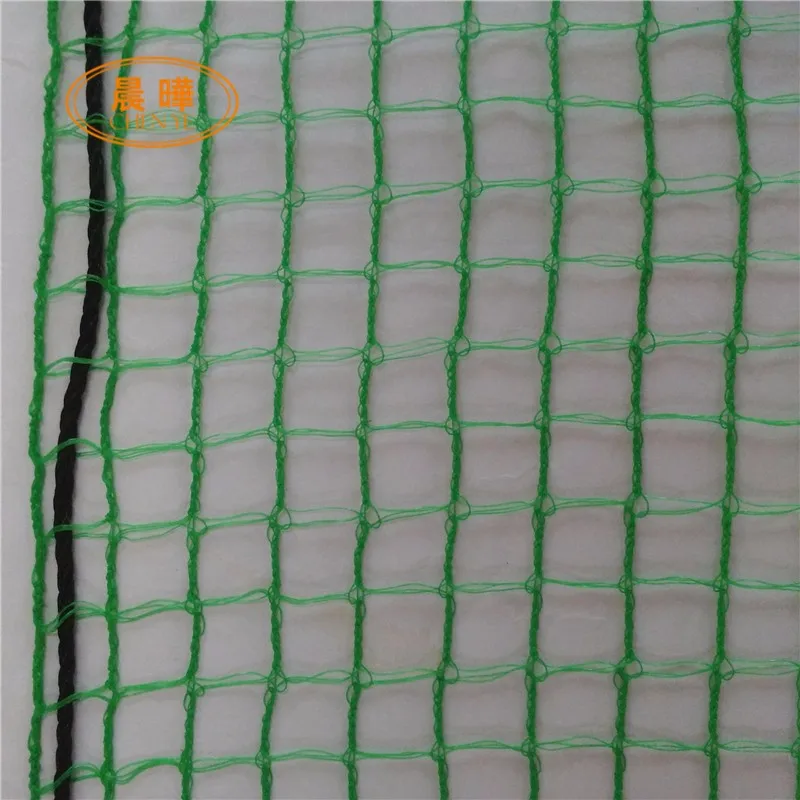

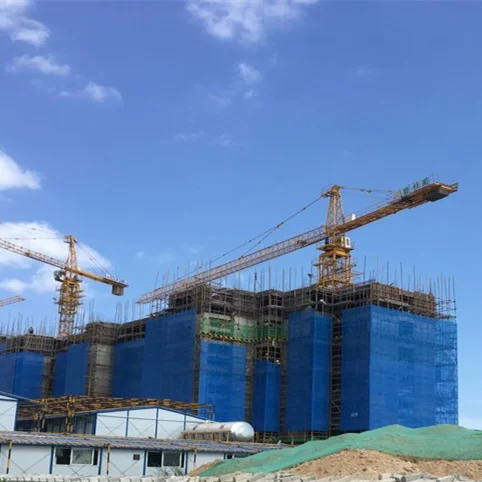

What products we can produce by this machine?

Certifications

Exhibition

Our Service

We will dispatch enginner to your factory to commissioning the machine and teach your workers how to opperate the machine.

Packing & Delivery

Packaging
Size	40HQ
Weight	1.2 T
Packaging Details	We will use pe film for packing or pack it according to customers special request. And spare parts in wooden box. All machine fix with steel string.
