Net making machine can produce mosquito nets and insect nets
- 30000.00 1 - 4 sets
- 29000.00 5 - 9 sets
- 28000.00 10 - 19 sets
- 27000.00 >=20 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Video external inspection: | if | Auto grade: | automatic |
| Production capacity: | 24 hours | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Marketing Type: | New Products 2020 | Local service location: | India, South Africa |
| Mechanical test report: | if | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Supply capacity: | 30 sets per month | feature: | High yield and stable |
| Dimensions (L*W*H): | the difference | Voltage: | custom made |
| place of origin; place of origin: | Jiangsu, China | Core components: | PLC, bearing, motor |
| After-sales service provided: | Free spare parts, video technical support, online support, on-site installation and commissioning training, on-site maintenance and repair services | Showroom location: | India |
| Core Components Warranty: | 1 year | brand: | Tatsuno |
| Packaging Details: | plastic box | strength: | 5.5KW |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies | Packaging Preview: | |
| Warranty: | 1 year | Mesh Type: | mosquito net |
| weight: | 9 tons | Health status: | new |
| Certification: | CE/ISO | application: | make various nets |
Product Description

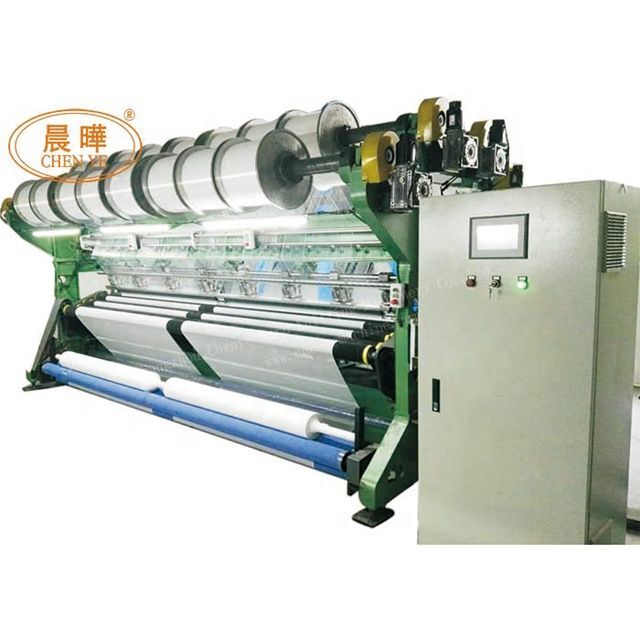

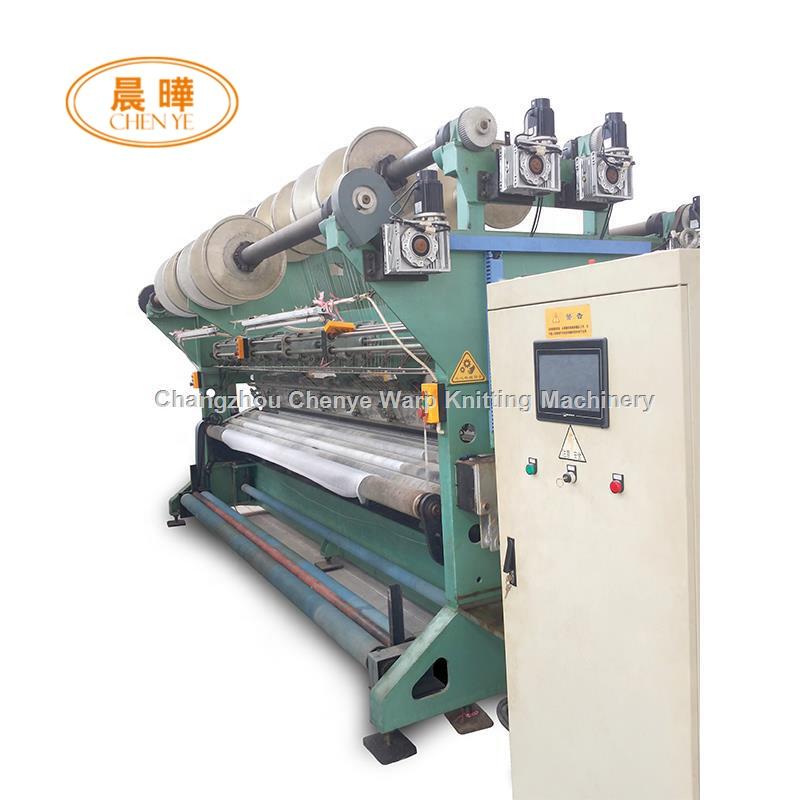

SRCP High Speed Single Needle Bar Raschel Machine
Uses: This machine is used to produce mosquito nets, lattice nets, wallet nets and chemical fiber clothing nets.
Features: This machine is equipped with open cam drive, negative yarn feeding system
Uses: This machine can produce mosquito nets, lattice nets, wallet nets, and chemical fiber clothing nets.
Features: This machine adopts open cam drive and negative yarn feeding system.
Needle type
lock pin
Measurement
E6, E7, E8, E9, E12, E14, E16, E18
Number of bars
2~6
Nominal width
135" 150" 180" 220" 260"
Receipt method
2 rollers with friction drive, central shaft drive;
2 rollers with friction drive, stand independently,
Center shaft drive, independent
Uses: This machine is used to produce mosquito nets, lattice nets, wallet nets and chemical fiber clothing nets.
Features: This machine is equipped with open cam drive, negative yarn feeding system
Uses: This machine can produce mosquito nets, lattice nets, wallet nets, and chemical fiber clothing nets.
Features: This machine adopts open cam drive and negative yarn feeding system.
Needle type
lock pin
Measurement
E6, E7, E8, E9, E12, E14, E16, E18
Number of bars
2~6
Nominal width
135" 150" 180" 220" 260"
Receipt method
2 rollers with friction drive, central shaft drive;
2 rollers with friction drive, stand independently,
Center shaft drive, independent
type of machine | Dimensions (L×W×H) | Weight (kg) | Power(KW) | Speed (rpm) | ||
main motor | jog motor | |||||
SRCP-135 | 4300×2200×2700 | 4500 | 3 | 0.37 | 200-560 | |
SRCP-150 | 4900×2200×2700 | 5000 | 3 | 0.37 | 200-560 | |
SRCP-180 | 6100×2300×2800 | 7500 | 5.5 | 0.75 | 200-560 | |
SRCP-220 | 7300×2300×2800 | 9000 | 5.5 | 1.5 | 200-500 | |
SRCP-260 | 8100×2300×2800 | 11000 | 7.5 | 1.5 | 200-480 | |
net sample
