Shade Net Loom
- 22500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Model: | YX291-D | brand: | Orientation |
| Warranty: | 1 year | size: | 180 inches 268 inches 335 inches |
| Production capacity: | 300-450 rpm | Dimensions (L*W*H): | 7200X2000X2300 |
| Needle bar: | double needle bar | Automatic level: | automatic |
| Mechanical test report: | not available | Local service location: | not any |
| Showroom location: | egypt, india | Finished goods: | shade net |
| Marketing Type: | New Products 2020 | Core components: | PLC, bearings, gearboxes, motors, gears |
| strength: | 5.5KW | Origin: | China |
| After-sales service provided: | Video technical support, online support | weight: | 12000 |
| Video shipment inspection: | if | Core component warranty: | 1 year |
| payment terms: | L/C, D/P, T/T | Voltage: | 380V |
| Health status: | new | After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Instrument number: | E1/E2/E3/E4/E6/E9 | Applicable industries: | Building material stores, manufacturing plants, farms, home use, construction projects |
Product overview

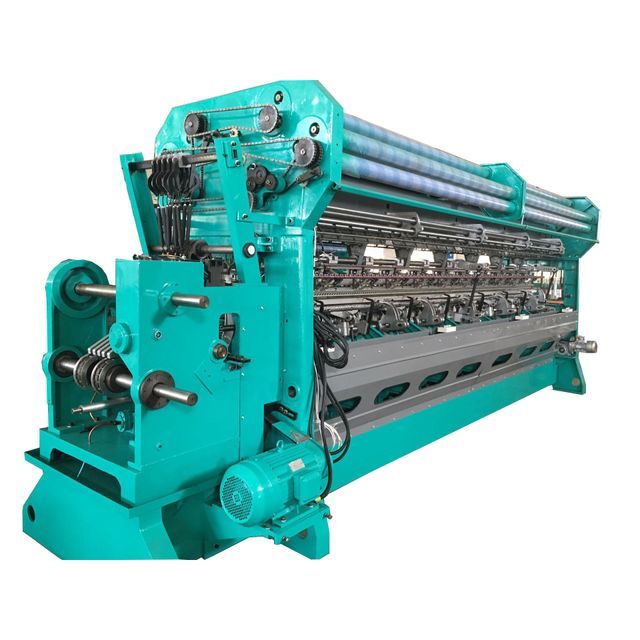

YX291-D double needle bed shade net loom
This machine is mainly used for weaving sunshade nets, dust-proof nets, plastic nets and various knotless nets
The material is HDPE, PE or PP flat wire
feature:
This machine adopts open cam swing arm linkage mechanism, yarn feeding by creel or warp beam, and warp let-off by rollers. The production is well ventilated and can weave flat yarn and round yarn.
This machine adopts open cam swing arm linkage mechanism, yarn feeding by creel or warp beam, and warp let-off by rollers. The production is well ventilated and can weave flat yarn and round yarn.
Product Description
type of machine | Shade net warp knitting machine | ||||||
needle bed | double needle bed | ||||||
needle type | individual latch needle | ||||||
Instrument number | E2, E3, E4, E6, E9 | ||||||
Number of bars | 5 pieces | ||||||
yarn feeder | use creel | ||||||
working width | 170inch 268inch 345inch or customized | ||||||
computerized | mechanical or computerized | ||||||
speed | 350-550 rpm | ||||||
Product parameters
machine type | Dimensions (mm) | installation size | Motor Power | Weight (kg) |
YX291-D-180 | 6000×2000×2300 | 7000×8000; 56M² | 5.5KW | 9000 |
YX291-S1-268 | 8700×2000×2300 | 9500×8000; 72M² | 5.5KW | 12000 |
YX291-S1-345 | 9200x2000x2300 | 10000x800; 80M² | 7.5KW | 15000 |
