PP/PE Knotless Netting Machine Spare Parts for Flower and Fruit Packaging

Supplier: Longkou Sunvo Plastics Co., Ltd.
Region: Shandong, China
Contact: Ms Adaline Liu
Price: $17000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	Knotless netting machine	port:	Qingdao
Warranty:	1 year	Automatic level:	automatic
Dimensions (LWH):	112.32.5	Core component warranty:	1 year
Mechanical test report:	if	Marketing Type:	New Products 2020
Video shipment inspection:	if	Packaging Details:	Standard container with good after-sales service Knotless netting machine for packing flowers
weight:	6 kg	Applicable industries:	factory, farm
Health status:	new	Production capacity:	10KG/hour
strength:	7.5	Supply capacity:	1 set per month
payment terms:	L/C, T/T	Material Capability:	non-woven fabric
application:	plastic mesh	brand:	Sanwa
Showroom location:	Egypt, Canada	Core components:	PLC, gearbox
After-sales service provided:	Engineers available to service machinery overseas	Origin:	Shandong China
Voltage:	380V

Product overview

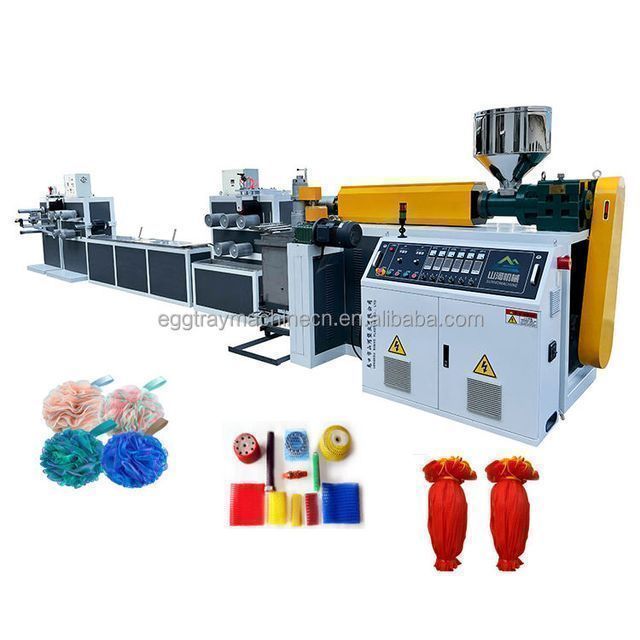

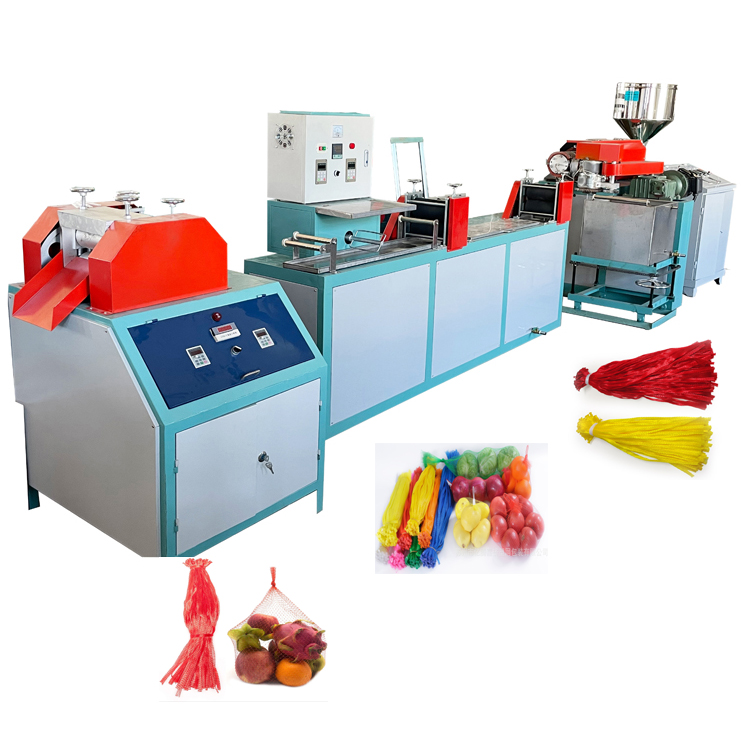

PP/PE Flower and Fruit Knotless Netting Machine

This machine is suitable for one-pass molding of plastic materials and continuous automatic production. It can produce high-end electrical appliances filters, marine farming packaging, wine, fruit,
Vegetables etc.

product specification

Model	SHWJ-45	SHWJ-60	SHWJ-65	SHWJ-70
Screw diameter	45mm	60mm	65mm	70mm
Productivity	6-8kg/hour	10-12kg/hour	12-14kg/hour	14-15kg/hour
Installed power	25 kW	30KW	35 kW	40kw
machine weight	2T	2.5T	3T	3.5T

The main technical parameters:

Material: LDPE/PP

Products: bath balls, fruit and vegetable packaging nets, flower nets

Power: 35KWS screw

Diameter: 65mm
Barrel outer diameter: 105mm

Screw aspect ratio: 25:1

Screw material: 38CrMoALA

Required manpower: 1 person

Layout: 10.0X3.0X2.0m

main feature:

1. This machine is suitable for continuous automatic production of plastic raw materials through one pass into a web.

2. Products of different materials and sizes can be produced, such as filters for high-end home appliances.

3. It is a replacement product of the traditional mesh bag, and the cost is only half of the traditional mesh bag.

4. The screw and barrel adopt 38CRrMoALA nitriding process, which has a long service life.

5. The driving motor adopts frequency conversion speed regulation, with high speed regulation precision, wide adjustment range and low

consumption and reliable operation,

6. Adopt intelligent digital display temperature controller, high efficiency and low consumption.

Details description

main motor power	7.5 kW
Main motor control mode	Frequency
Screw material	38CrMoALA
Barrel diameter	Φ105mm
Speed change	Special reducer for extruder
J	cast aluminum heater
heating power	12kw

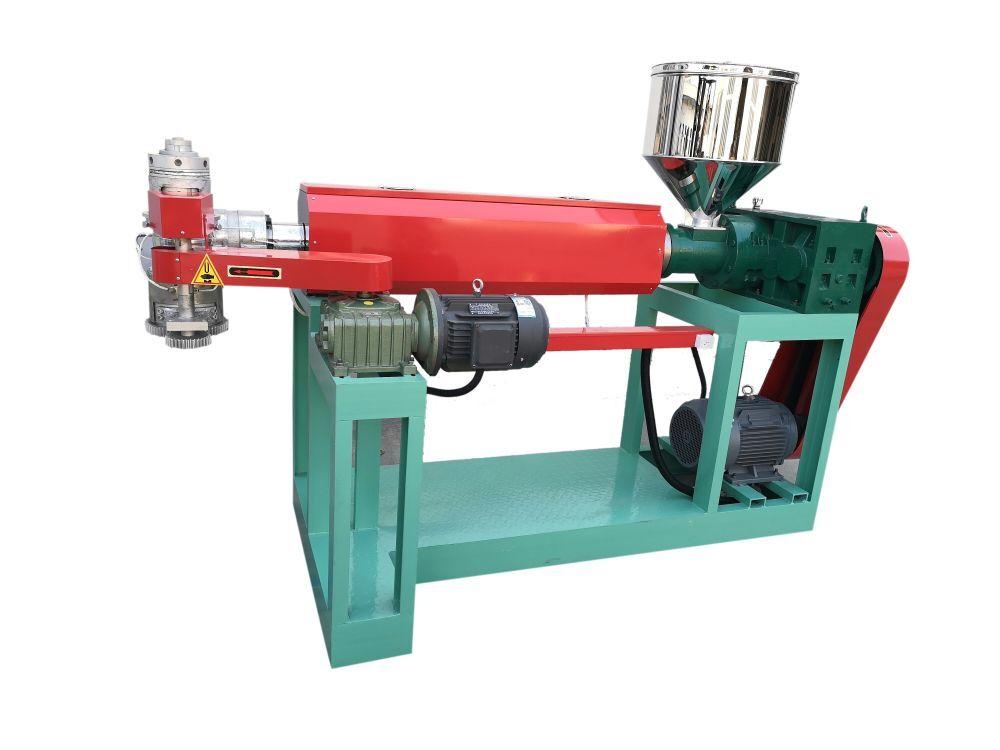

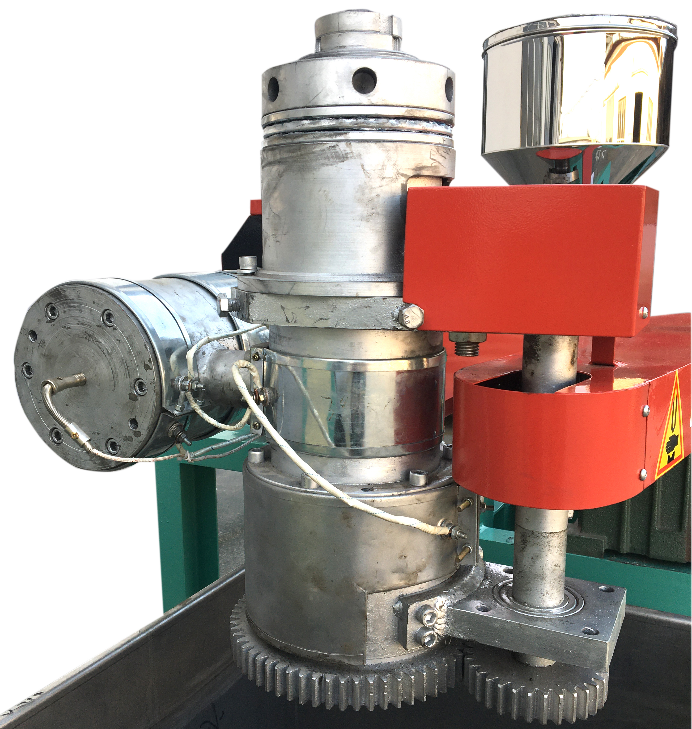

extrusion head	High-speed extrusion head, frequency conversion speed regulation
Extrusion head motor power	4 kW
Extruder Motor Control Mode	Frequency
Extrusion head heating zone	2
heating power	3 kW

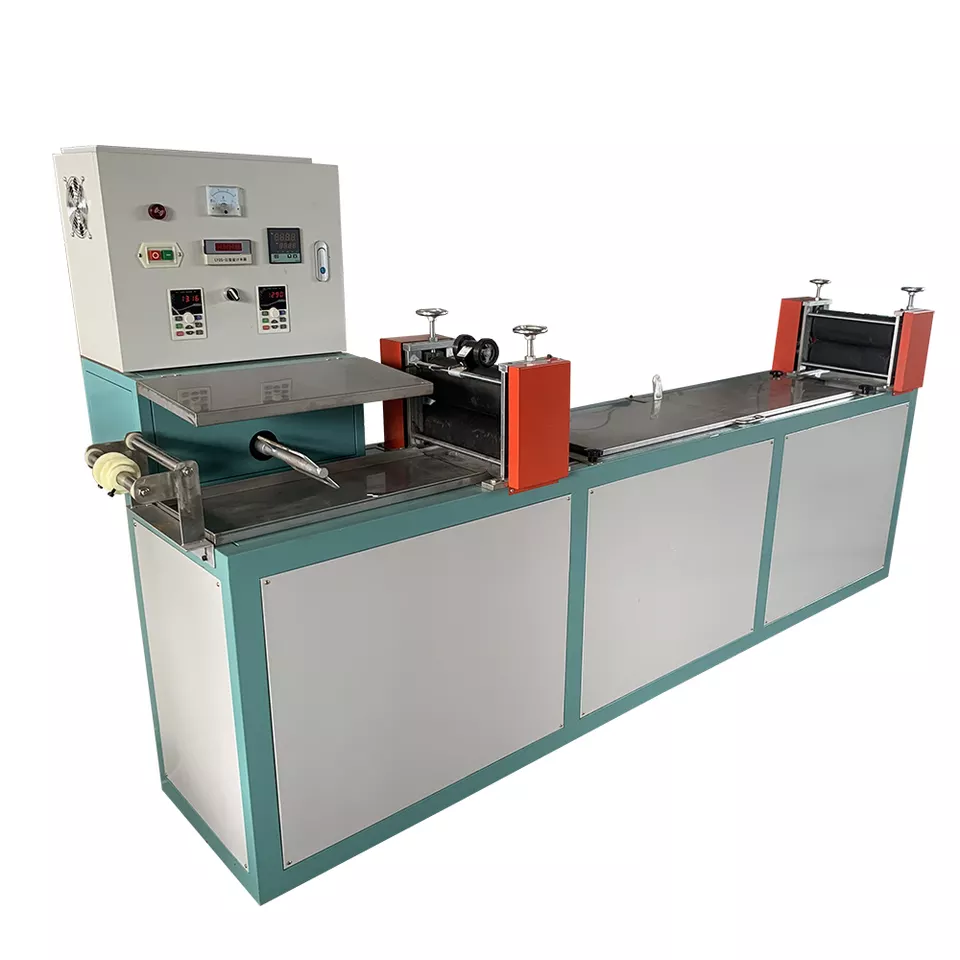

Sizing method	size type
cooling method	water cooling
Sizing Width	According to customer requirements
Water tank material	Stainless steel

temperature control	Electric heating water constant temperature control
heating power	9KW
Water tank material	Stainless steel
size	2000×230×200mm

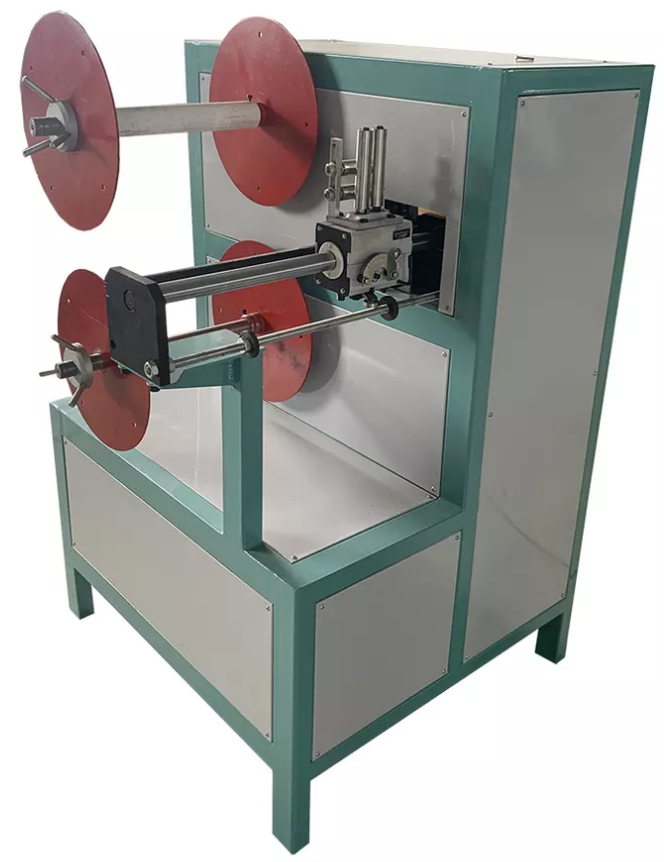

tension power	2.2KW
driving type	speed converter
