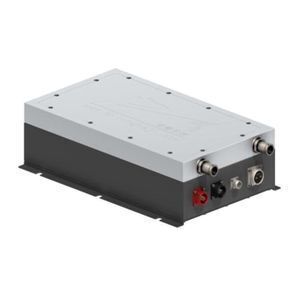

waterproof 650v 28v dc dc converter 5000w

Supplier: Shijiazhuang Dilong Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Walker Xing
Price: $950.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Function:	onboard dc dc converter;	Place of Origin:	Hebei China;
Input Current:	12A (maximum);	Port:	Tianjin;
Product name:	waterproof 650v 28v dc dc converter 5000w;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	DILONG;	Power Efficiency:	≥92%;
Input voltage range:	450V dc~800V dc;	Packaging Detail:	International standard packing waterproof 650v 28v dc dc converter 5000w;
Model Number:	DE5000RF-650S28RC;	Supply Ability:	5000 Set/Sets per Month waterproof 650v 28v dc dc converter 5000w;
Cooling Type:	water-cooled;	Output Current:	178A (Rated);
Rated output voltage:	28V dc;	Car Type:	Electric Vehicle, atuo car, bus, truck;
Constant power output:	5000w;

waterproof 650v 28v dc dc converter 5000w

^{a.Constant current and constant voltage automatic conversion, effectively save charging time}

^{b.Input over-voltage/under-voltage protection}

^{c.Output over-voltage protection}

^{d.Output over-current protection}

^{e.Output short circuit protection}

^{f.Input reverse connect protection}

^{g.Over-temperature protection}

^{h.intelligent control}

^{i. Small volume, high power density}

Specification

Model				DE5000RF-650S28RC
Power input	Rated voltage	Vdc		650V
	Voltage range	Vdc		450-800V (400V-450V rated power shall be reduced to 2KW)
	Current	A		12A (max)
Power output	Rated output voltage	Vdc		28V
	Max Current	A		178A(Rated) 200A(MAX)
	Max Power	W		5000W
	Voltage accuracy	V		≤±1%Vo input 450Vdc-750Vdc output10%-100% load
	Line Regulation	%		≤±0.2 input 450Vdc-750Vdc, output full load
	Load Regulation	%		≤±0.5 input 600Vdc, output 10%-100% load
	Dynamic response	us		≤400us
	Efficiency	%		92
	Ripple and Noise	mV		≤±1%Vo 20M oscilloscope, Twisted-pair cable test
Protection	Input over-voltage protection	Vac		750V-770V Hardware shutdown, normal voltage recovery.
	Input under-voltage protection	Vac		360V-380V Hardware shutdown, normal voltage recovery.
	Output over-current protection	A		178A≤load current≤180A constant current state load current≤178A constant voltage state
	Output over-voltage protection	Vdc		Output voltage≥33V shutdown Output voltage≤30V self-recovery
	Over-temperature protection	℃		Case temperature ≥85℃ shutdown Case temperature ≤70℃ self-recovery
Usage environment	Operating temperature			-30℃~+70℃
	Storage temperature			-45℃~+95℃
	Operating humidity	%RH		20-90
	Store humidity	%RH		10-95
	Vibration			QC/T413-2002 (Other parts required)
	Cooling mode			water-cooled
Signal&Warning
Power switch signal			The software is switched on according to the communication protocol
CAN communication			data transmission function
Safety Protection	Isolation Voltage			Input-output 2KVdc	≤5mA
				Input-shell 2KVdc
				Output-shell 500Vdc
	Insulation Resistance		MΩ	Input-shell ≥20 MΩ (25℃,70%RH)

structure

weight

11Kg

Volume (length * width * height)

400*230(260)*122

Advanced testing

Certifications

Company Information

^{Shijiazhuang Dilong Technology Co., Ltd. is a manufacturer with the development, production and sales of military power supply , industrial power supply ,new energy vehicle power supply.}
^{Our company was founded in 2000,the headquarter is in Shijiazhuang ,Hebei. We also has branch offices in Beijing, Shanghai,Shenzhen,Chengdu and Wuhan.}
^{Our company pays high attention to the Quality Management System , passed ISO9001, the ISO/TS16949:2009 system authentication successively, the CE European Union product authentication, the ROHS.}

Packaging & Shipping

^Packaging:^{Carton, Wooden box, Anti-shock package}

^{Delivery: within 30 days after payment.}

^{Export port: BeJing port, China}

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.

Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
