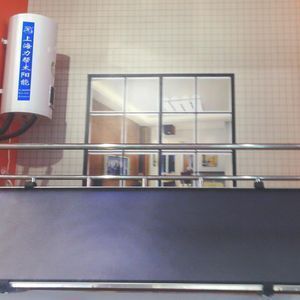

Modern design Elegant shape evacuated tube flat plate solar collector prices

Product details
Place of Origin:Shanghai China;Model A:2000*1000*80mm;
Model Number:2000*1000*80mm;Absorb layer:Germany titanium Surface;
Back Insulating layer:40mm glass wool;Packaging Detail:LCL: Carton packing+wooden case duplicate protection. FCL: Carton packing in containers for Superior quality flat panel Elegant shape evacuated tube flat plate solar collector prices;
Port:Shanghai port;Cover:3.2mm Ultra low iron tempered glass;
Max. working pressure:1.0Mpa;Payment Terms:L/C,T/T,Western Union;
Product name:Fine Quality Reasonable Price flat panel Elegant shape evacuated tube;Back plate:0.40mm GI Steel;
Model B:2460*850*80mm;Type:Flat Panel;
Side Insulating layer:25mm Ethylene;Supply Ability:2000 Set/Sets per Month Fine Quality flat panel Elegant shape evacuated tube flat plate;
Brand Name:Libang;Application:Water Heater;
Frame:1.0mm Aluminum Aloy;Pipe Material:Copper;

Fine Quality Reasonable Price  flat panel solar energy water heater

Product details

Sub-Item:Storage Tank (Built-in copper coil or stainless coil)

Note: 100L water need 2M3 plate collector,eg: 200L need 2 PC collector, 250L need 3 PC collectors.

1.0-2.0 mm SUS304-2B stainless steel Inner tank +50mm Polyurethane foaming +0.40mm color coated steel outer tank+1.5mm color steel bracket

Measurement: Inner(Thickness/Dia)(mm), Outer(mm), Size(Diameter*Height)(mm), Coiler(diameter-mm,length-m), Volume(M3), Weight(Kg)

Model

FSP-80L

FSP-100L

FSP-150L

FSP-200L

FSP-250L

FSP-300L

FSP-400L

FSP-500L

FSP-800L

FSP-1000L

Inner

1.0/360

1.0/375

1.0/375

1.0/410

1.0/475

1.2/475

1.5/600

1.5/600

2.0/700

2.0/900

Outer

460

470

470

500

570

570

700

700

850

1000

Size

560*1000

570*1030

570*1530

600*1630

680*1530

680*1830

800*1530

800*1880

Round packed

Coil

ø12-8m

ø12-10m

ø12-15m

ø12-20m

ø12-20m

ø12-25m

ø22-25m

ø22-32m

ø22-50m

ø22-60m

Volume

0.32

0.33

0.49

0.58

0.70

0.84

0.97

1.20

1.62

2.35

Weight

35

37

45

52

58

69

96

115

185

200

Sub-Item: Flat plate collector

1,Frame: size=1000*2000*80mm,Side frame=1.0mm aluminum alloy, Backboard=0.4mm color coated sheet, Cover=3.2mm ultra clear low iron linen finished tempered glass

2,Insulating Layer: 40mm glass fiber+ High quality human healthy EPDM

3,Inner tubes: 2 Main tube=ø22mm*0.6mm thickness copper tube. 7 branch tubes=ø10mm*0.5mm thickness copper tube.



4,Welding method(connecting the copper tube and the absorb layer): Ultrasonic welding.

Size (mm)

Total Area

Aperture Area

Net Weight

Pressure resistance

Connector

1000*2000*80

2.09m2

1.87m2

36kg

1.0Mpa

ø22mm

Sub-Item: Absorb layer (four types for optional, Our standard specification is Germany tech titanium surface absorb layer.

Anodizing Surface

Layer material=Cu+ Al

Absorptive =0.90±0.03

Emissivity=0.18±0.05

Electrochromism  Surface

Layer material=AL

Absorptivity =0.92±0.03

Emissivity=0.10±0.05

Electrochromism Surface

Layer material=Pure Cu

Absorptivity=0.93±0.03

Emissivity=0.10±0.05

Germany tech titanium surface

Layer material=Cu or AL

Absorptivity=0.94±0.02

Emissivity=0.05±0.02

Product Categories

Company Information

+

Shanghai Libang Solar Water Heater Co Ltd.was established in 2004, integrating scientific research, production and trade.We are one of the high-tech enterprises in China.Our company is located in No.900,Lanfeng Road,Fengxian District ,Shanghai ,China.We provide energy saving and environment friendly products for domestic water heating and commercial project.The evacuated tube flat plate solar collector pricess are used for residence,swimming and spa pool,apartment,villa,high-rise building,school,hotels,factories,hospitals etc.

Factory Tour

Exhibition Display

Production Process



Contact Us

FAQ

Frequently Asked Questions
Q: How to use in cloudy or rainy days?
A: We could connect electric heater, gas heater or other boilers for bakup heating;
Q: Freezing problem in evacuated tube flat plate solar collector prices?
A: Never, when snow more than 5 days electric heating will start to protect system;
Q: Minimum order quantity?
A: 20 set for each model of evacuated tube flat plate solar collector pricess and evacuated tube flat plate solar collector pricess;
Q: Accept OEM production?
A: Yes, offer to make customized logo on solar products and packing cartons.
