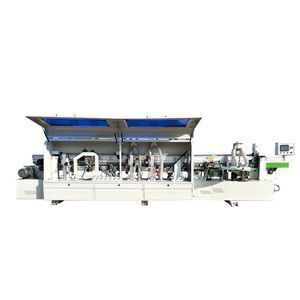

CE approval edge banding machine Italy automatic laser edge bander for PVC wood funiture

Supplier: Qingdao O.b.t Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms Lisa Song
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao port;	Condition:	New;
Warranty:	2 Years;	Voltage:	220V/380V;
Application:	All kinds boards;	Brand Name:	OBT;
Conveyor speed:	15-23m/min;	Weight:	2000kg;
Supply Ability:	100 Set/Sets per Month;	Dimension(LWH):	5600mmx800mmx1600mm(LXWXH);
Panel length:	>150mm;	After-sales Service Provided:	Online support;
Working pressure:	0.6MPa;	Total power:	11kw;
Place of Origin:	Shandong China;	Certification:	CE ISO;
Panel thickness:	10-60mm;	Min.panel dimensions(4 sides banding):	100mmx100mm;
Power(W):	11kw;	Packaging Detail:	Container;
Panel width:	>60mm;	Payment Terms:	T/T,Western Union,MoneyGram;
Applicable Industries:	Manufacturing Plant,Home Use,Retail,Construction works ;	Edge thickness:	0.4-3mm;

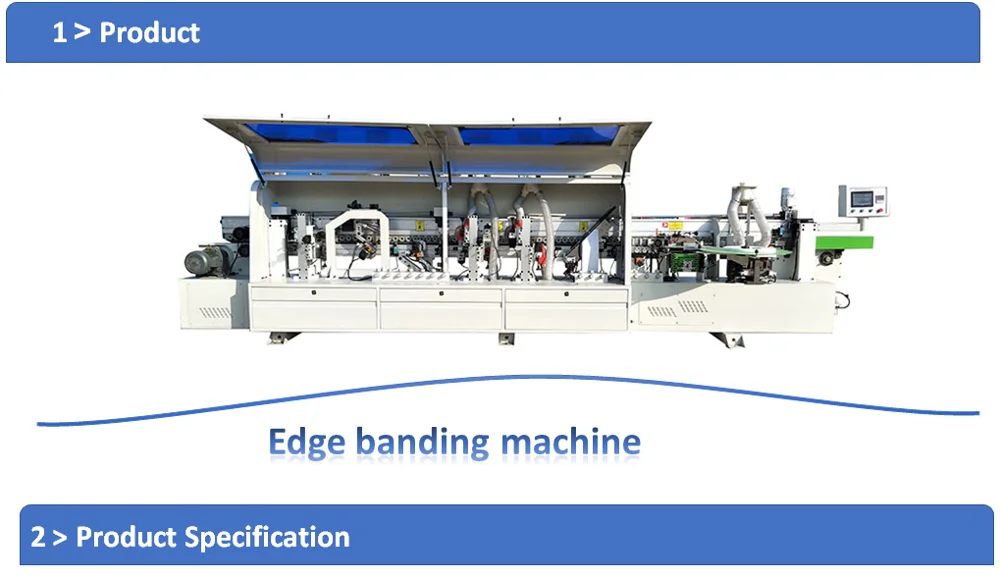

CE approval Italy automatic laser edge banding machine edge bander for PVC wood funiture for sale price

Machine number	OBT 468J
Min. panel width	60mm
Min.process panel length	100mm
Min.panel dimensions(4 sides banding)	100mmx100mm
Panel thickness	10-60mm
Sealing belt height	15-65mm
Sealing belt thickness	0.4-3mm
Conveyor speed	15-23 meters/min
Total power	11kw
Rated air pressure	6.5kg/cm³
Voltage	380V/50HZ/3phase
Weight	2000KG
Overall dimensions	5600mmx800mmx1600mm(LXWXH)
Loading quantity	8 units/40HQ
Functions	Gluing and pressing,End cutting,rough trimming,fine trimming,corner rounding,scraping,buffing,Pre milling

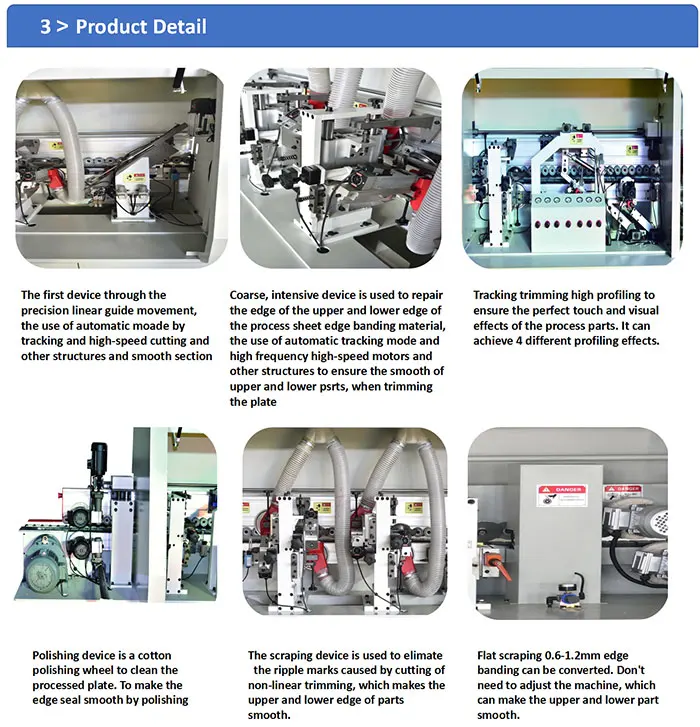

1)Pre-mlling equipment with double trim-blades works on the waved effect that is caused by precise dimersicen saw.

2)The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

3)Rough/Fine Trimming Unit , with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even

4)The buffing device adopt the board processed by cotton polishing wheel, by end- polishing to make a more smooth surface.

5)End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the Cutting surface smoothly.

6) Scraping unit for a perfect finishing of the applied edge.

My dear,if you are interested in our product,click "send inquiry" to get your discount

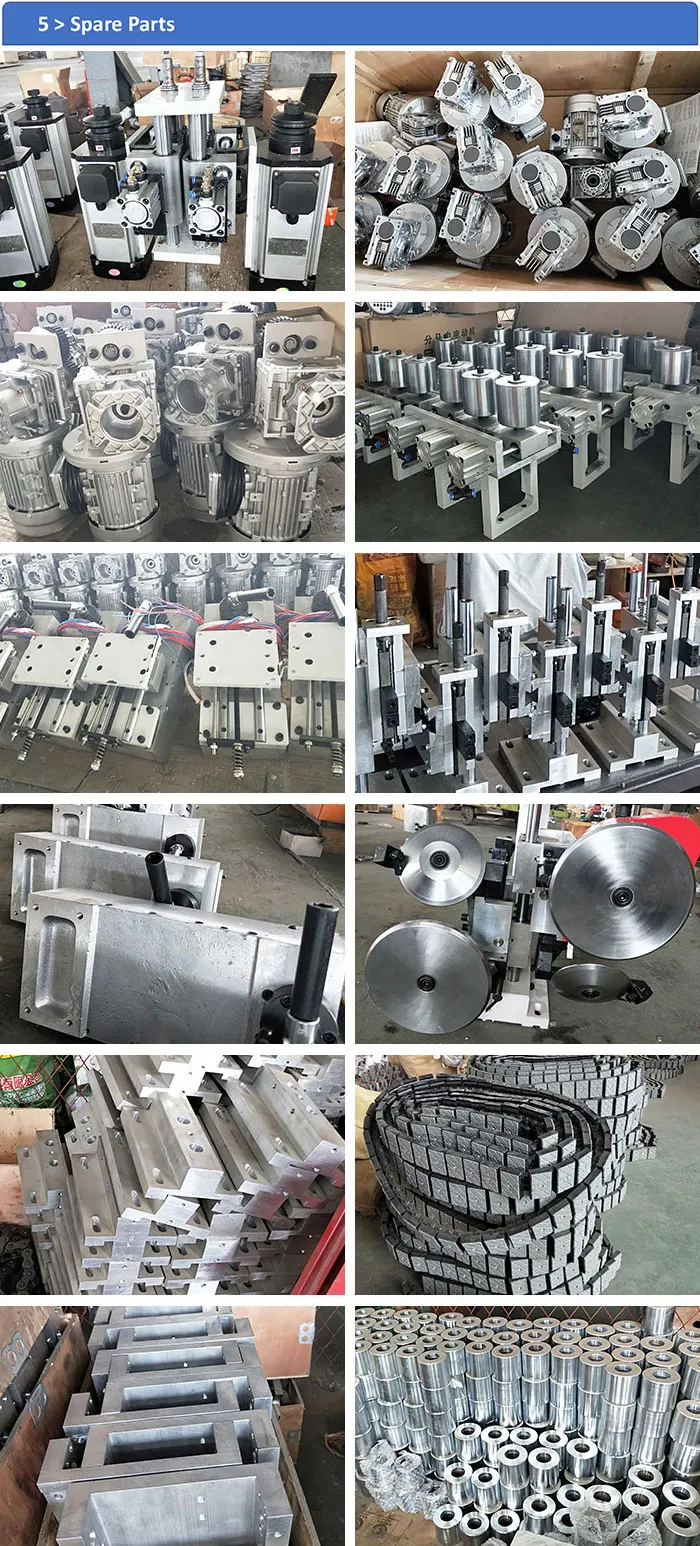

Product parts configuration
Inverter, touch screen, PLC	weikong (inverter voltage is all heavy 380V)
Cylinder, air pressure adjustment, solenoid valve, sensor switch	Taiwan Asia and Germany off
Thermostat, proximity switch	Korea AutoNice
air switch	South Korea LS production
Limit switch	Korea Kay Kun Co., Ltd.
High frequency motor (head and tail, refined edge)	Guangdong Tianyang
Low voltage electrical appliances, power supply	Schneider, Taiwan Mingwei
