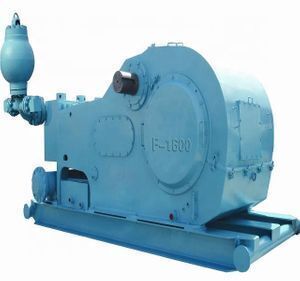

F1600 drilling mud pump in oilfield

Supplier: Dongying Star Concept Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms. Ellen Cui
Price: $30000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	1600;	Applicable Industries:	Energy & Mining;
Supply Ability:	100 Piece/Pieces per Month;	Type:	F;
Packaging Detail:	Export packing .;	Port:	Qingdao ,Tianjin,Shanghai;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Certification:	API;

Features
1,Power end features
Continuous tooth herringbone gear. One-piece alloy steel crank. Renewable crosshead guide. The frame is made of welded steel plate to provide the frame with high strength, good rigidity and lightweight. The extension rod packing is of duplex seal structure to provide the good seal result. The power end uses the combined lubrication system of forced lubrication and splash lubrication.
2,Crankshaft
The crankshaft is made of cast alloy steel and is furnished with big geared ring, connecting rod and bearing. The tooth form of the big-geared ring is herringbone gear. The gear bore and the crankshaft surface is interference fitted and they are both fastened with bolts and lock nuts. The big end of the connecting rod is mounted on three eccentric straps of the crankshaft through single row short cylindrical roller bearings and the small end on the crosshead pin through double row long cylindrical roller bearing. Double row radial spherical roller bearings are mounted at both ends of the crankshaft.
3,Cylinders
Cylinders are made of forged alloy steel. Three cylinders of each pump are interchangeable. Valve-over-valve (through type cylinder) design reduces the cylinder volume and promotes the volumetric efficiency. At customers’ request, the cylinder surface may be nickel plated to improve the abrasion resistance.

Parameters

Model	Type	Rated Stroke	Rated Power	Gear type	Gear Ratio	Suction Pipe Diameter
NF-1600	Triplex piston single role	120r/min	1192KW	Herringbone gear	4.205:1	305mm
Discharge Pipe Diameter	Small diameter gear	Bond	Valve	Weight	Lubrication
126.5mm5000psi	215.8mm	50.75×50.75mm	Valve valve on theAPI5	24780KG	Mandatory increases spatter

Stroke/min	Rated Power		Liner diameter(mm)& Pressure Mpa(psi)
			180		170		160		150		140		130
			23.6	3345	25.9	3750	29.2	4235	33.2	4820	35.1	5000	34.5	5000
	KW	HP	Displacement(L/S)(gal./s)
130	1293	1733	50.42	13.32	44.97	11.88	39.83	10.52	35.01	9.25	30.5	8.06	26.3	6.95
120	1193	1600	46.54	12.29	41.51	10.97	36.77	9.71	32.32	8.54	28.15	7.44	24.27	6.41
110	1094	1467	44.66	11.8	38.05	10.05	33.71	8.91	29.62	7.82	25.81	6.82	22.25	5.88
100	994	1333	38.78	10.24	34.59	9.14	30.64	8.1	26.93	7.11	23.46	6.2	20.23	5.34
90	895	1200	34.9	9.22	31.13	8.22	27.58	7.29	24.24	6.4	21.11	5.58	18.21	4.81
1			0.3878	0.102	0.3459	0.091	0.3064	0.081	0.2693	0.071	0.2346	0.062	0.2023	0.053

Note: 1, volumetric efficiency by 100% and 90% mechanical efficiency by 2, and the recommended number of continuous operation-the input power
