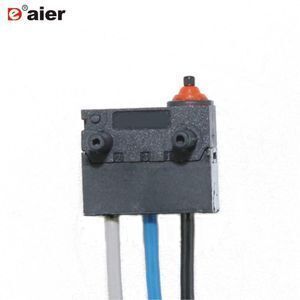

0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch

Supplier: Yueqing Daier Electron Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henry He
Price: $0.46 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Item number:	0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch;	Gross weight per batch:	1 KG;
Material:	Plastic;	Max. Voltage:	250VAC;
Terminal:	With Wire;	Model Number:	G303-E00-A8;
Operating Temperature:	T85;	Protection Level:	IP67;
Function:	SPST;	Package Type:	100pcs of 0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch;
Electric life:	10,0000 Cycles;	Selling Units:	Multiple of 100;
Operation Temperature:	-25°C~+85°C;	Place of Origin:	Zhejiang China;
Max. Current:	3A;	Brand Name:	Daier;
Package size per batch:	26X18X5 cm;	Free Sample:	Available;
Wire Length:	200mm;	Rating:	0.1A 250VAC / 3A 12VDC;
Contact Resistance:	30mΩ max;

Product Descriptio

Product Name	0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch
Rating	0.1A 250VAC / 3A 12VDC
Connect Forms	SPST I12V waterproof micro switch
Degree Protection	IP67 waterproof micro switch
Terminal Type	Wire Type
Contact Resistance	≤30mΩ
Insulation Resistance	≥100mΩ (500VDC)
Dielectric strength	1500VAC 1 minute
Mechanical Life	≥ 100,000 Cycles cherry waterproof micro switch

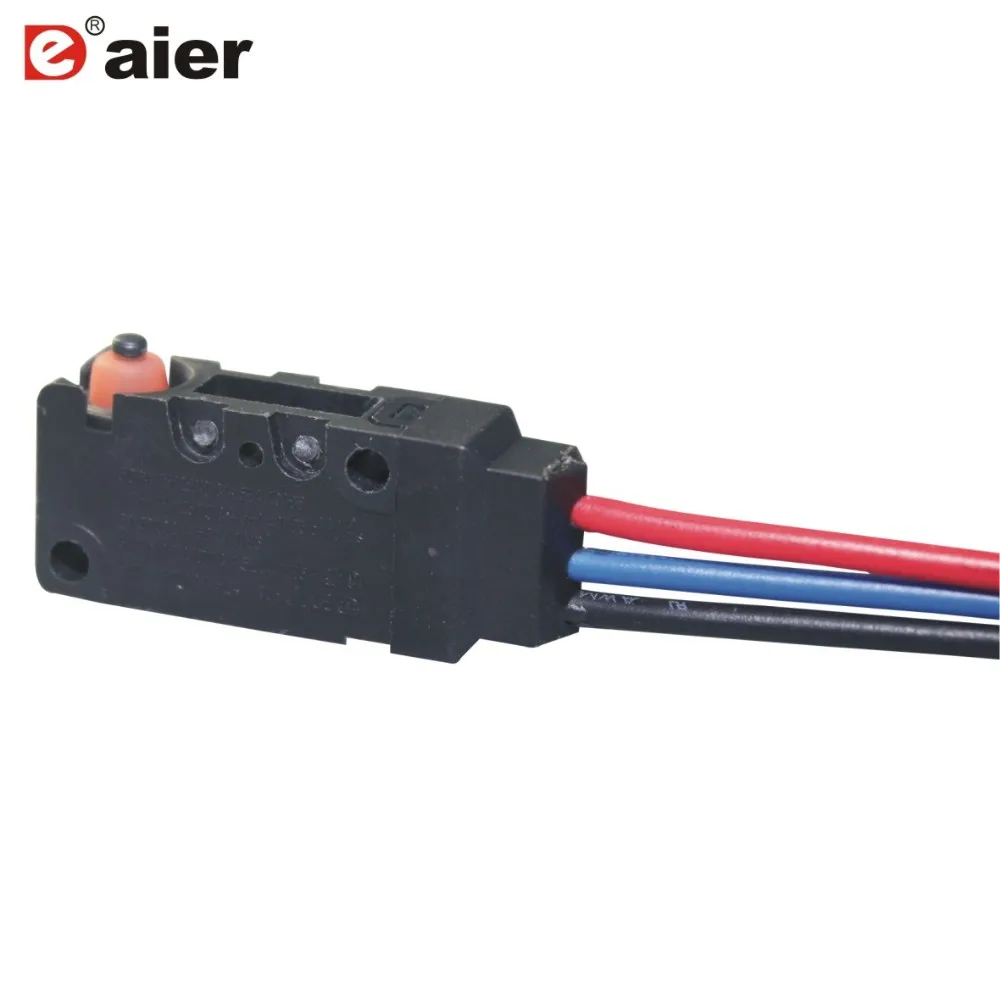

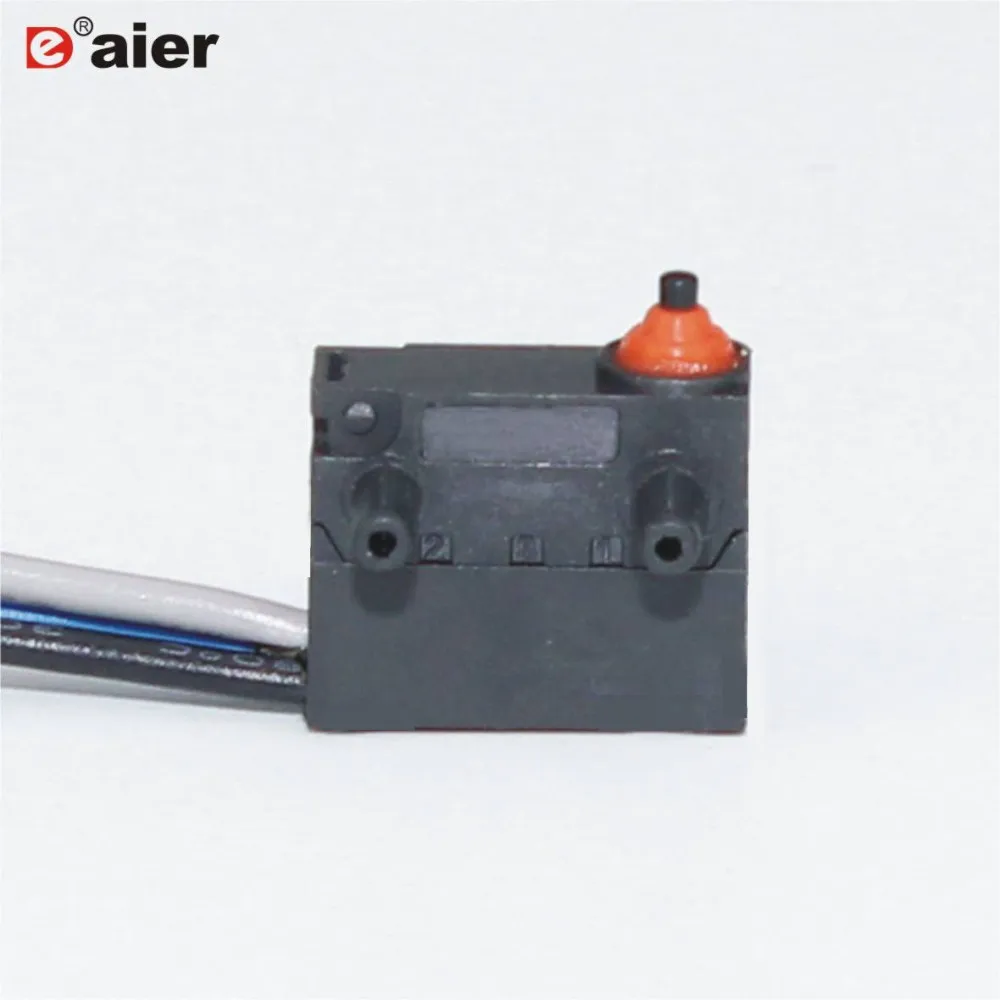

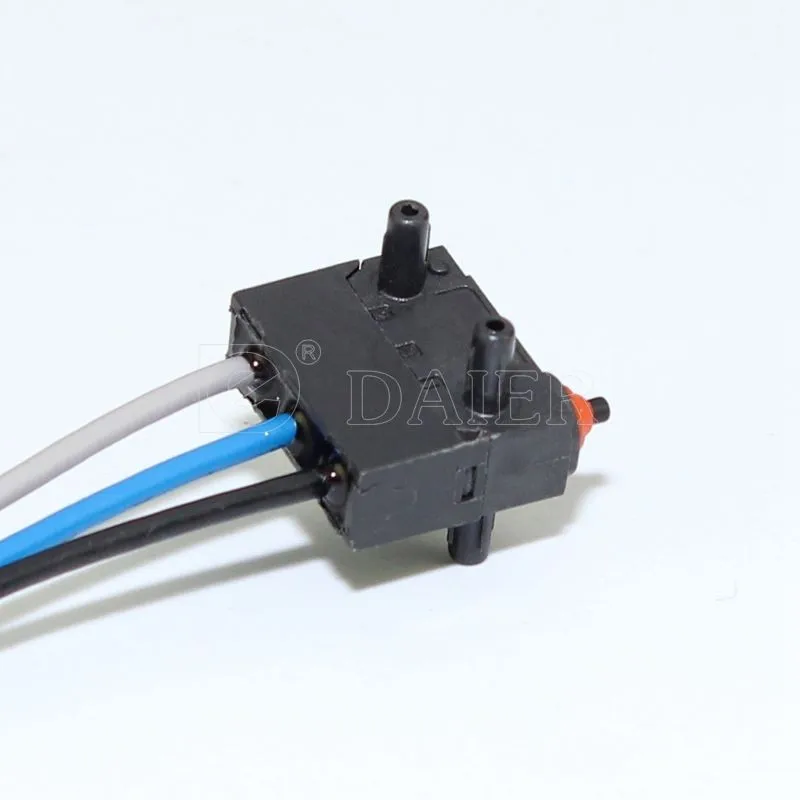

Products Show

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50gf to 400gf.

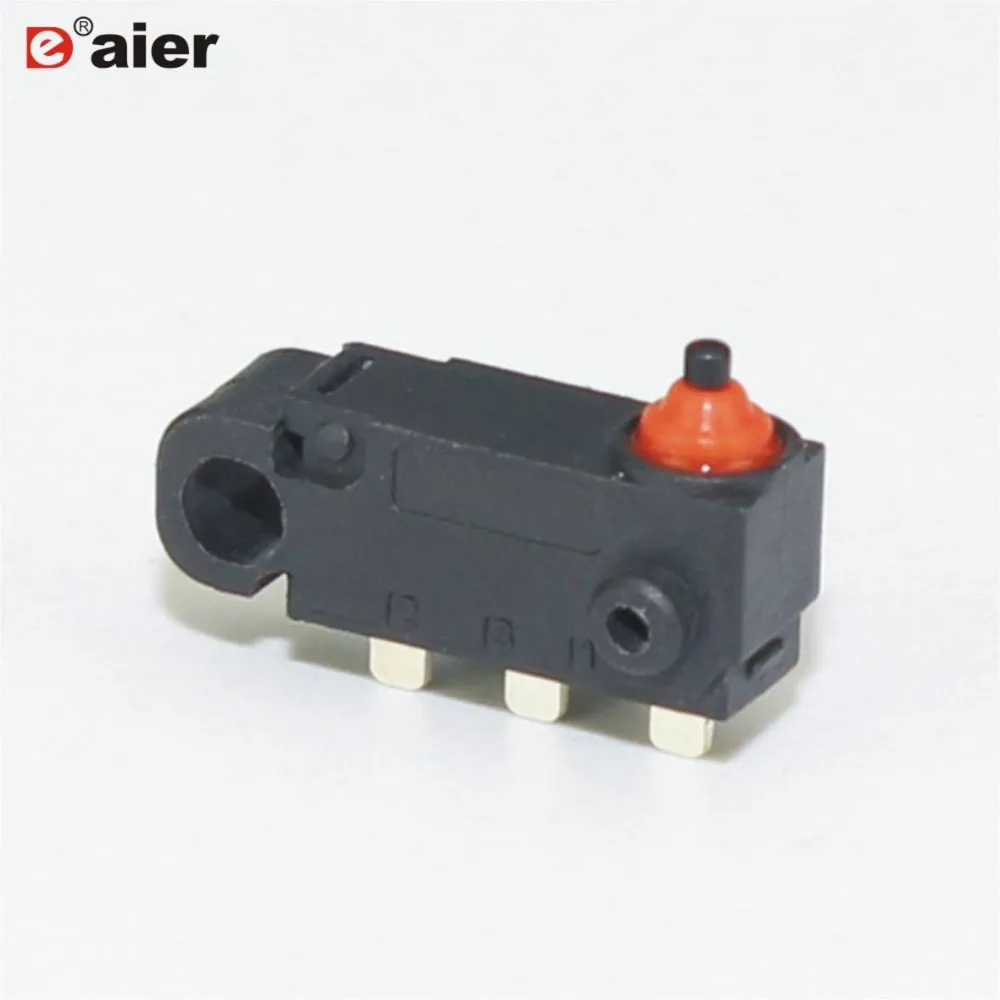

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
