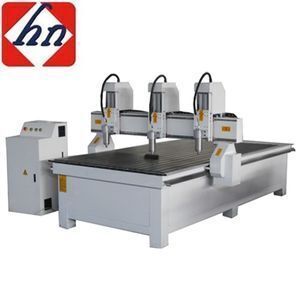

Jinan Huashinuo 3 axis cnc engraving and milling machine for wood furniture

Supplier: Jinan Huashinuo Cnc Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Simon Li
Price: $2900.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	Huanuo Machine;	Condition:	New;
Supply Ability:	200 Set/Sets per Month;	Place of Origin:	Shandong China;
After-sales Service Provided:	Field installation, commissioning and training;	Application:	Wood Process;
Warranty:	1 Year;	Name:	cnc engraving and milling machine;
Function:	Sawing;	Color:	Customer Requirement;
Weight:	1000kg;	Usage:	Make Fuel Briquettes;
Power:	15kw;	Type:	Automatic;
Product name:	Automatic Wood Pallet Block Making Machine;	Packaging Detail:	standard export wooden case packing;
Raw material:	Wood Waste;	Port:	Qingdao,Shanghai or other;
Applicable Industries:	Manufacturing Plant,Advertising Company;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product Description

Jinan Huashinuo 3 axis cnc engraving and milling machine for wood furniture

Technical Parameters:

X,Y working area	1500×3000mm cnc wood machine
Z working area	200mm
Table size	*200035001500mm*
Wlrk-holding	by suction
control system	dsp/mach3/nc studio
interface	USB2.0
Command	*Gcode.u00.mng.plt**
control system	DSP/MACH3/NCStudio
Power(not include the spindle)	4.5kw
Power	AC380V/50Hz
Main axle power rate	3.0kw,4.5kw,5.5kw,6kw,9kw
Main axle rotating speed	0-24000rpm/min
Word Mode	Stepper

Optional Parts:

1. different type spindle(Air colling spindle/Water cooling spindle)

2. Bigger or smaller power spindles (3.0kw,4.5kw,5.5kw,6kw,9kw)

3. High-grade cooling system (chiller, it has alarming system)

4. double-head or more heads

5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc)

6. servo motors (China brand or Japan brand)

8. Auto tool change system (this system need other systems accordingly, like LNC control system,

servo motors etc)

9. NCstudio control system/Mach 3

10. other customerized features

Note: Above are the main optionals, not all the machines can add above optionals

please contact us, we will give you suggestions, thanks.

woodworking machine carvingsamples:

CNC Woodworking Machine using Parts:

FAQ

Before you buy we have to know these information:

1.what material you want to carving or cutting?

2.The Max.size about your material.(width*length*thickness)

3.Your requirement about the machine.

Thanks for your corporation!

Shipping Terms

1.EXW

2.FOB Qingdao

3.CIF + Destination port

4.If you need us to book shipping cargo or not and etc,pls notice us,

we are more pleased to do so.

Payment terms

1.T/T 30T/T in advance against the order confirmed and pay the balance 70% against shipping.

2.Western Union

Packaging & Shipping

Packaging Details:1.outside package :standard export wooden cases
2.inner package:stretch film
Delivery Detail: about 7 workdays after payments

Payment Terms: TT, 30% deposit in advance, 70% Balance before delivery.

-----------------------------------------------------Learn more

Our Services

Aftersale Service

1.One year warranty time: we can repair and replace parts for free in one year.

2.Technical support in 24 hours online: TM, Skype, E-mail, solving the relative questions in time.

3.Life time free maintenance service.

4.Free training course at our factory with professional engineers.

5.We provide the consumable parts at agent price when you need replacement.

Our Advantage

♣Top quality and best price(we have strick quality control system,so the high quality and best price will make great profit for you)

♣Professional service(your design,your brand,your ideas will be made within our cooperation to satisfy your need)

♣Quick response (if we receive your any requests about our products or company,
we will give you reply with 10 hours)
♣Friendly relationship(we believe good relationship always relate great service,and
good suggestions will be appreciated)

-----------------------------------------------------Learn more

FAQ

1. When can we arrange shippment?

We usually arrange shippment within 10 days after getting deopsit,

but customized machines should be more than 25 days.

2.What you can do if my machines have problems?

1) We can send you free components to you if your machines are in guarantee time.

2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

4.What free accessories or discount can I get if order now?

A: Contact me for details!
