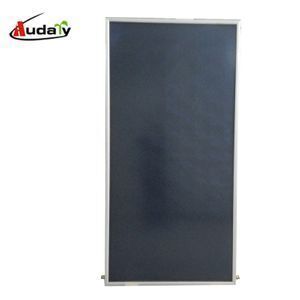

high efficiency flat plate solar thermal collector for project
- 90.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply Ability: | 6000 Piece/Pieces per Month; | Payment Terms: | T/T; |
| Model Number: | ADL-FP; | Packaging Detail: | Carton; |
| Application: | Solar Thermal; | Place of Origin: | Jiangsu China (Mainland); |
| Type: | Flat Panel; | Brand Name: | Audary; |
| Pipe Material: | Copper; | Port: | Shanghai port; |
| Specifiaction | ||||||||
| 1 | Dimention | 2000*1000*80 (mm) | ||||||
| 2 | The area of the absorber/effective area | 1.85 (m2) | ||||||
| 3 | Net weight | 32 kgs | ||||||
| 4 | The coating material | Tempered textured with low iron content | ||||||
| 5 | The thickness of the coating | 3.2mm | ||||||
| 6 | The throughput of the coating/transparency | 92% | ||||||
| 7 | The coating material of the absorber | Black chrome | ||||||
| 8 | The sheet absorber | Aluminium/0.4 mm | ||||||
| 9 | The type of tubes in the absorber | Manifold | ||||||
| 10 | Absorption/ absorption | ≥ 95 ±2% | ||||||
| 11 | Emissivity/emissivity | ≤ 5 ±2% | ||||||
| 12 | Material of connecting pipes | Copper ø22 mm ×0,7±0,1 | ||||||
| 13 | Tube material absorber | Copper ø8 mm×0.5 mm | ||||||
| 14 | Maximum working pressure/recommended | 0,6/0,25-0,3 (MPa) | ||||||
| 15 | The maximum operating temperature | 90-120 Degrees | ||||||
| 16 | Welding method | Laser welding the surface of the absorber with copper pipes | ||||||
| 17 | The volume of fluid | 1,3±0,1 L | ||||||
| 18 | The recommended relative flow rate | 60-120 L/h·m2 | ||||||
| 19 | Max power G=1000W/m2 per collector | 1.25kw | ||||||
| 20 | Thermal efficiency | 74% | ||||||
| 21 | Coefficient of heat loss a1/k1 | 4.05 W/m2·K | ||||||
| 22 | Coefficient of heat loss a2/k2 | 0.03 W/m2·K | ||||||
| 23 | Maximum brake temperature for ambient conditions of 1,000 W/m2 and 30°C | 160-195 °C | ||||||
| 24 | Insulation material | Fiberglass | ||||||
| 25 | The thickness of the bottom/side of insulation | 30/20 mm | ||||||
| 26 | Frame/thickness | Aluminum alloy/ 1.2mm | ||||||
| 27 | The bottom plate | Galvanized sheet | ||||||
| 28 | Frame colour | dark | ||||||
| 29 | Assembly | Vertical | ||||||
| 30 | Warranty | 5 years | ||||||
| 31 | Certificates of conformity | ISO9001; ISO14001; CE | ||||||
