Aluminum Alloy Copper Pipe Material Flat Panel Plate Solar Water heat Collectors

Click here to contact

Product details

Name:	Flat Panel Plate Solar Water heat Collectors;	Model Number:	CS-FP;
Warranty:	15 Years;	Product name:	Flat Panel Plate Solar Water heat Collectors;
Certificate:	tuv;	Collector type:	flat plate;
Payment Terms:	L/C,T/T,Western Union;	Port:	Shanghai;
Application:	Solar Thermal;	Type:	Flat Panel;
Coating:	Blue Titanium Absorber;	Brand Name:	OEM;
Usage:	solar water heating project;	Color:	blue black;
Keyword:	flat plate solar collector;	Pipe Material:	Copper;
Material:	Copper Pipe;	Supply Ability:	10000000 Piece/Pieces per Month;
Packaging Detail:	carton, wood carton;	Place of Origin:	Shanghai China (Mainland);

Aluminum Alloy Copper Pipe Material Flat Panel Plate Solar Water Collector with CE+Rohs

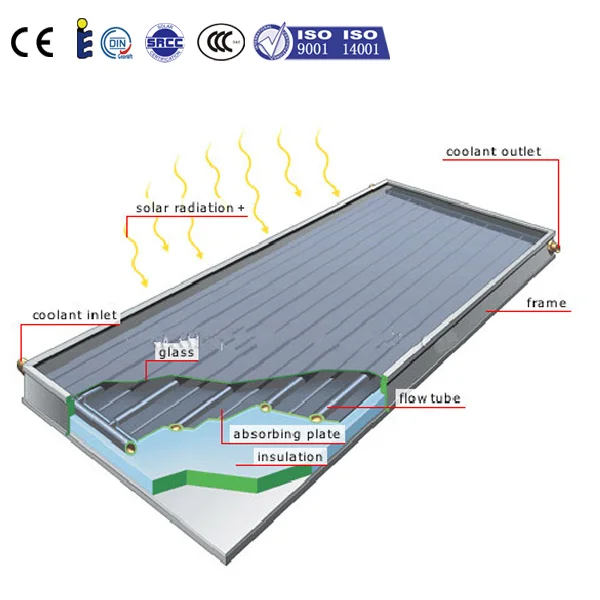

Components:

Tempered glass cover, absorbing plate, insulation and back plate, specific detail as bellow:

titanium coating advantages:

1. Titanium coating is evenly distributed and high quality

2. High Thermal efficiency, 95% absorption, 6% emission.

3. Excellent weather resistance, fastness for 25 years, efficiency declines less than 5%.

Model	CS-FP-III 2000/1000/80	CS-FP-IV 2000/1000/80	CS-FP-IV 2000/1000/80	CS-FP-II 2000/1000/80
Coating	Anodic Oxidation	Black chrome	Black chrome	Blue coating
Welding	Laser	Ultrasonic	Laser	Laser
Material of Absorber	Copper &Aluminum	Copper	Copper &Aluminum	Copper &Aluminum
Size & Quantity header pipe	22*08mm 2PCS
Size &Quantity branch pipe	10*0.6mm 7PCS
Absorption rate	0.90±0.03	0.93±0.03	0.92±0.03	0.94±0.02
Reflection rate	0.18±0.05	0.10±0.05	0.10±0.05	0.05±0.02
Collector size	2000 x 1000 x 80mm
Frame color	Silver/Black/Champagne
Gross area	2m2
Absorber area	1.85m2
Sealing	EPDM
cover material	Ultra white and low iron fabric surface tempered glass
Cover transmission	92%
Back plate material	0.30mm galvanized steel
Insulation	30mm glass wool
Max working pressure	0.6MPa
weight	37kg	37kg	38kg	38kg
