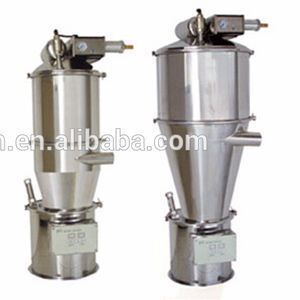

QVC Series Pneumatic Vacuum Conveyor
-
Supplier: Shanghai Pharmaceutical Machinery Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Ted Bian -
Price: $800.00 /set -
Min. Order: 1 set
| Hoisting Height: | 5 m; | Dimension(L*W*H): | Vacuum Conveyor; |
| Port: | Shanghai; | Payment Terms: | L/C,T/T,Western Union; |
| Packaging Detail: | Export standard packaging of vacuum Conveyor; | Brand Name: | SPM Vacuum Conveyor; |
| Model Number: | QVC Vacuum Conveyor; | Place of Origin: | Shanghai China (Mainland); |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Delivery Detail: | 30 days; |
| Condition: | New; | Max. load: | 350-9000Kg/h; |
| Certification: | ISO Vacuum Conveyor; | Supply Ability: | 10 Set/Sets per Month; |
| Type1: | Vacuum Conveyor; | Transmission Length: | 5 km; |
| Weight: | 50kg Vacuum Conveyor; | Type3: | grain vacuum Conveyor; |
| Type2: | capsule vacuum Conveyor; |
QVC Series Pneumatic Vacuum Conveyor
APPLICATION:

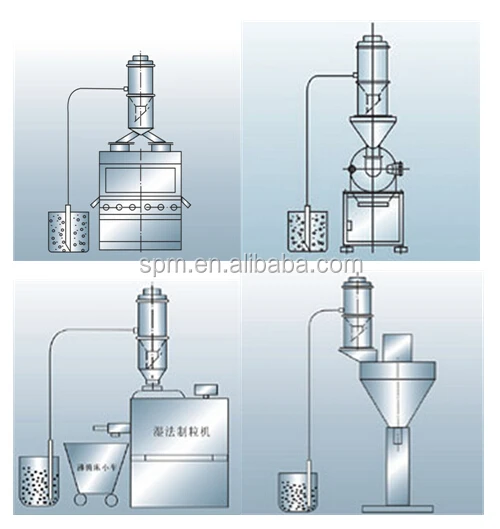

QVC Series Pneumatic Conveyor is used in automatic material for Tablet Press machine. Pulverizing machine, capsule filling machine, Screen machine .Packing machine, Pulverizing machine, Screen machine and Mixing machine etc. It need not any mechanical vacuum pump, so it is simple structure, small volume, without repairing, no noise and easy being controlled. It can be stopped separating layer for the feeding material because the machine has high vacuum. QVC Series Pneumatic Vacuum Conveyor was designed according to international standard. It is easy cleaned and beautiful. It is up to GMP requirement.
CHARACTERISTIC:
Solve the problem thoroughly about the separating layer of material.
The sintered-metal filter is Japanese original.
It can be removed the material static electricity.
It is airtight without crossed contamination.
It is made in good quality stainless steel(304 or 316).
It is made in non-toxic and corrosion resistant material.
Filter is easy cleaned.
It is controlled intelligently and automatically.
It is easy dismantled with building blocks structure.
It is easy set up and small volume, the weight is light
It is no noise and screening
It is economical and practical the cost is lower.

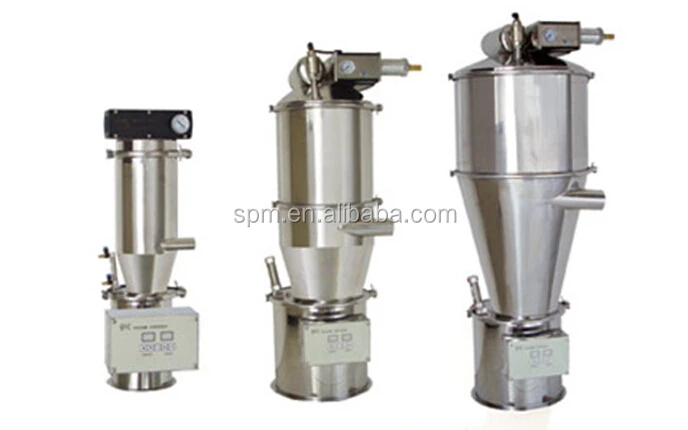

MAIN TECHNICAL DATA:
Model | Capacity(kg/h) | Compressed Air(L/min) | Mpa |
QVC-1 | 350 | 180 | 0.4-0.6 |
QVC-2 | 700 | 360 | 0.4-0.6 |
QVC-3 | 1500 | 720 | 0.4-0.6 |
QVC-4 | 3000 | 1440 | 0.4-0.6 |
QVC-5 | 6000 | 2880 | 0.4-0.6 |
QVC-6 | 9000 | 4320 | 0.4-0.6 |
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
Projects
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
-
