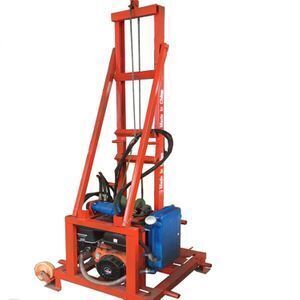

HY-240 Two Phase Folded Water Well Drilling Rig

Supplier: Luohe Orange Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jasmine Yuan
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Plywood case packages,portable water well drilling rigs;	Name:	portable water well drilling rigs;
Type:	Rotary Drilling Rig;	Brand Name:	orangemech;
Power Type:	Diesel;	Warranty:	1 Year;
Voltage:	220V/380V;	Drill rod diameter (mm):	51;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;	Condition:	New;
Pump power (KW):	2.2KW;	Usage:	Water Well;
Dimension(LWH):	8007002500;	Weight:	130kg;
After-sales Service Provided:	Free spare parts;	Hosting height(mm):	2000;
Place of Origin:	Henan China;	Certification:	ISO;
Supply Ability:	1000 Set/Sets per Month;	Drilling depth(m):	100;
Voltage:	380v,50/60HZ;	type:	fold well drill rig;
Drill rods(m):	It deponds on what Customer need;	Drilling hole diameter(mm):	Within 350mm;
Drill rod length(mm):	1500mm/pcs;	Port:	Shanghai Port,China;

Small portable water well drilling machines /well borer / well drill:

This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 100 meter.

The advantage of the water well drilling machine are as below:

1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.

7. Assure easily operation and long life service life, free maintainance.

Technical Parameters of hydraulic Water Well Drilling Rig (no need electricity)
Model of drilling machine	HY-240
Drilling machine overall dimension(mm)	8007002500
Weight of Drilling machine (kg)	200
Drill rod diameter (mm)	Ø51
Drill rod length(mm)	1500
Rod change method	manual screw thread
Drilling depth(m)	100
Drilling method	Percussive and rotating type
Pump power (KW)	2.2
Drilling hole diameter(mm)	Ø 220
Hosting height(mm)	2500
Hosting capacity (kg)	800
Completed unit of drilling machine include main machine, 40 meter drill rod, 1 pump, 2 units alloy drilling bit, 5 meter water pipe, English manual.

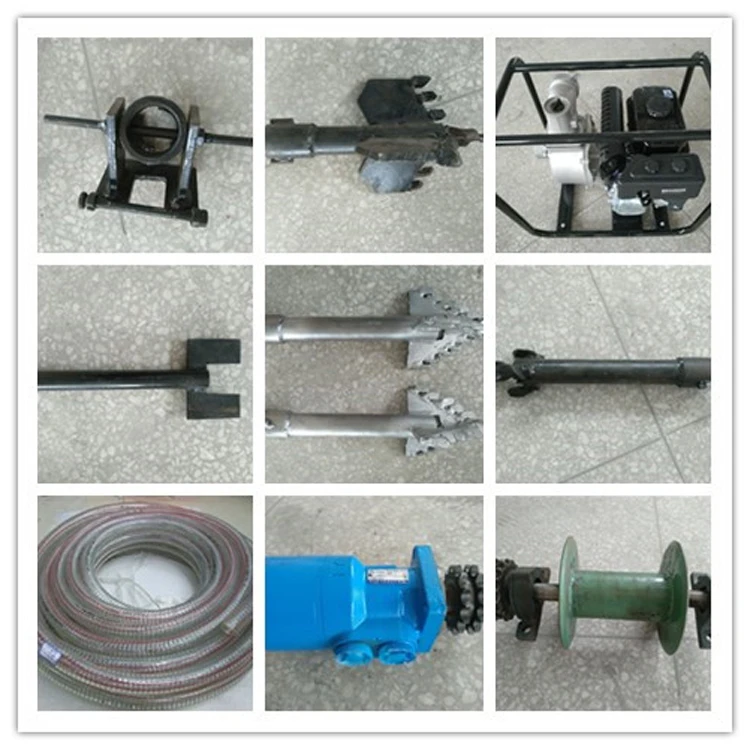

Spare parts with the machine

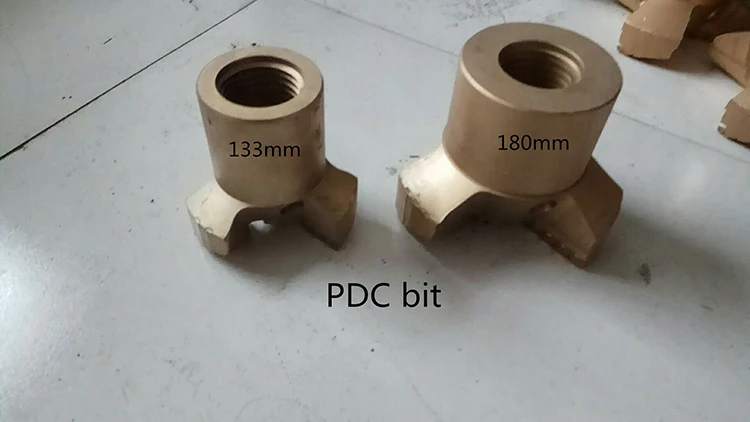

PDC bit

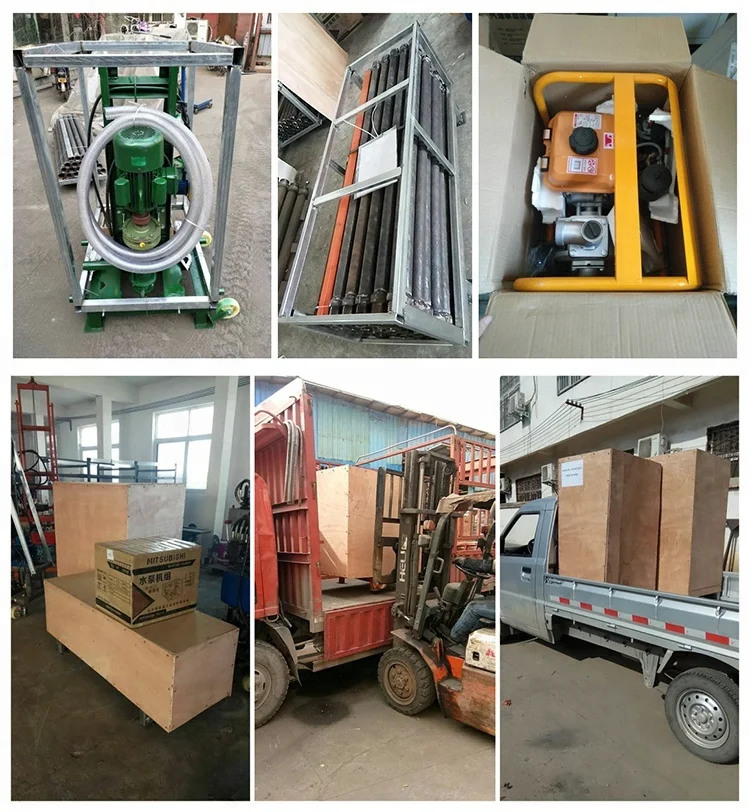

Packaging & Shipping

Shipping:

1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc.

2.Orange provide shipping method:Courier service,Air transport,Sea Transport

3.Can accept order:Full container cargo load,Less container load

4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.

We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
