API KHT9625 hydraulic casing power tong

Supplier: Dongying Qixiang Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Eve Liu
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	2000 Set/Sets per Month;	Material:	Carbon Steel;
Packaging Detail:	Standard export package or as your request;	Use:	Well Drilling;
Model Number:	DYQX;	Port:	Any Port in China;
Certification:	API;	Payment Terms:	L/C,T/T,Western Union;
Place of Origin:	China (Mainland);	Machine Type:	Drilling Tool;
Processing Type:	Forging;	Delivery Detail:	Shipped in 30 days after payment;
Brand Name:	DYQX;	Type:	Drill pipe;
Type:	Power Tong;

Company Information

Dongying Qixiang Import & Export Co.,LTD(DYQX Petro company) follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).

Our Service Objective: People-O riented, Quality firstly and Best service.

Welcome to Visit DYQX petro.

FAQ

Dongying Qixiang Import&Export Co.,Ltd

Address:North 2nd Road,Number 352,Dongying Zone, Dongying City, Shandong province, China.

Skype:eve.liu06211988

Mobile:0086-18554639639

whatsnap:0086-18554639639

Web: www.dyqx-petro.com & http://qixiangpetre.en.alibaba.com

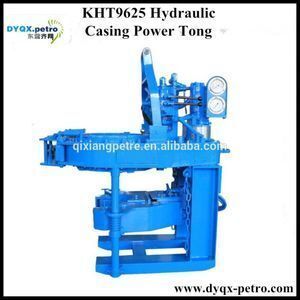

KHT9625 Hydraulic Casing Power Tong

Product Description

Description:

KHT9625 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation.

Features:

1,Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.

2,Master,backup tong are all use three-jaw clamp system, ensure the minimum damage to the tube pillar.

3,Four gear speed used,wide range of speed adjustment,rated torque high

4,Brake belt assembly, easy to operate and convenient to maintain and replace.

5,Open gear supporting structure, improving the strength and rigidity.

6,The jaws are cast with precise technology, artistic and strong.

7,With optional torque control system to display, record and control the make-up torque.

Parameters:

Model	KHT9625
Application range	2⁷/8"-9⁵/8"
High Gear Torque	3600N.m @ 14MPa/2700ft-lbs @2000psi
Low Gear Torque	34000N.m @ 14MPa/25000ft-lbs @2000psi
High Gear rpm	65r/min
Low Gear rpm	6.5r/min
Oil Flow	150 L/min/40 gpm
Dimension: L x W x H	1500x 790 x 1045 mm
Weight(including Backup Tong)	800kg/1760lbs
