1600 1800 Degree Heat Treatment Lab Muffle Furnace for Lab Research

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	muffle furnace 1800;	Supply Ability:	1000 Set/Sets per Month;
Source voltage:	AC110V-240V, Customized;	Item:	muffle furnace 1800;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Model Number:	TMAX-1800Muffle;
Control:	PID;	Classification:	Laboratory Heating Equipments;
Color:	Blue;	Warranty:	2 Year;
Brand Name:	TMAX;	Heating element type:	Silicon carbide (SiC);
Max heating / cooling rate:	< 15°C (59°F) / min;	Temperature precision:	+/- 1°C;
Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;	Port:	Xiamen Port;
Min. working temperature:	Ambient;	Place of Origin:	Fujian China;

Product information

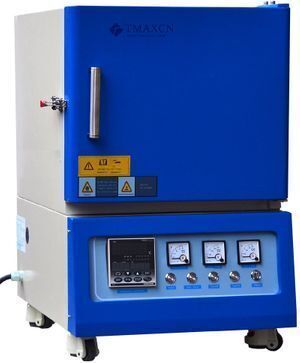

1600 1800 Degree Heat Treatment Lab Muffle Furnace for Lab Research

Features

1 Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

2 Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

3 Built-in computer interface.

4 Long life type B thermocouple.

5 CE compliant

Safety

1 Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2 Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Specifications of 1800 degree muffle furnace

Chamber vs usable size (DxWxH)	7 x 6 x 6" (0.15 cubic foot) / 5 x 5 x 5.5"
Max. working temperature	1800°C (3272°F) for less than 5 hours
Refractory lining	Mitsubishi (Japan) high quality grade 1900 fiber alumina
Heating element	Kanthal (Sweden) grade 1900 Molybdenum Silicide (MoSi₂), 6 installed
Thermocouple type	B or PtRh40-PtRh20 (optional)
Min. working temperature	300°C (572°F)
Max. constant working temperature	1700°C (3092°F) or 1750°C with PtRh40-PtRh20 (optional)
Temperature controller	Shimaden fp93 (Japan) with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) Eurotherm temperature controller (optional)
Max heating / cooling rate	1200°C and below: <30°C/min, 1200°C+: < 15°C/min
Temperature accuracy	+/- 1°C
Input	208-240v AC, 50/60Hz, single phase
Maximum output	4.5 kW
Unit/shipping dimensions (WxDxH)	24 x 22 x 34" / 30 x 29 x 42"
Shipping weight	300 Lb
CE compliance	Yes

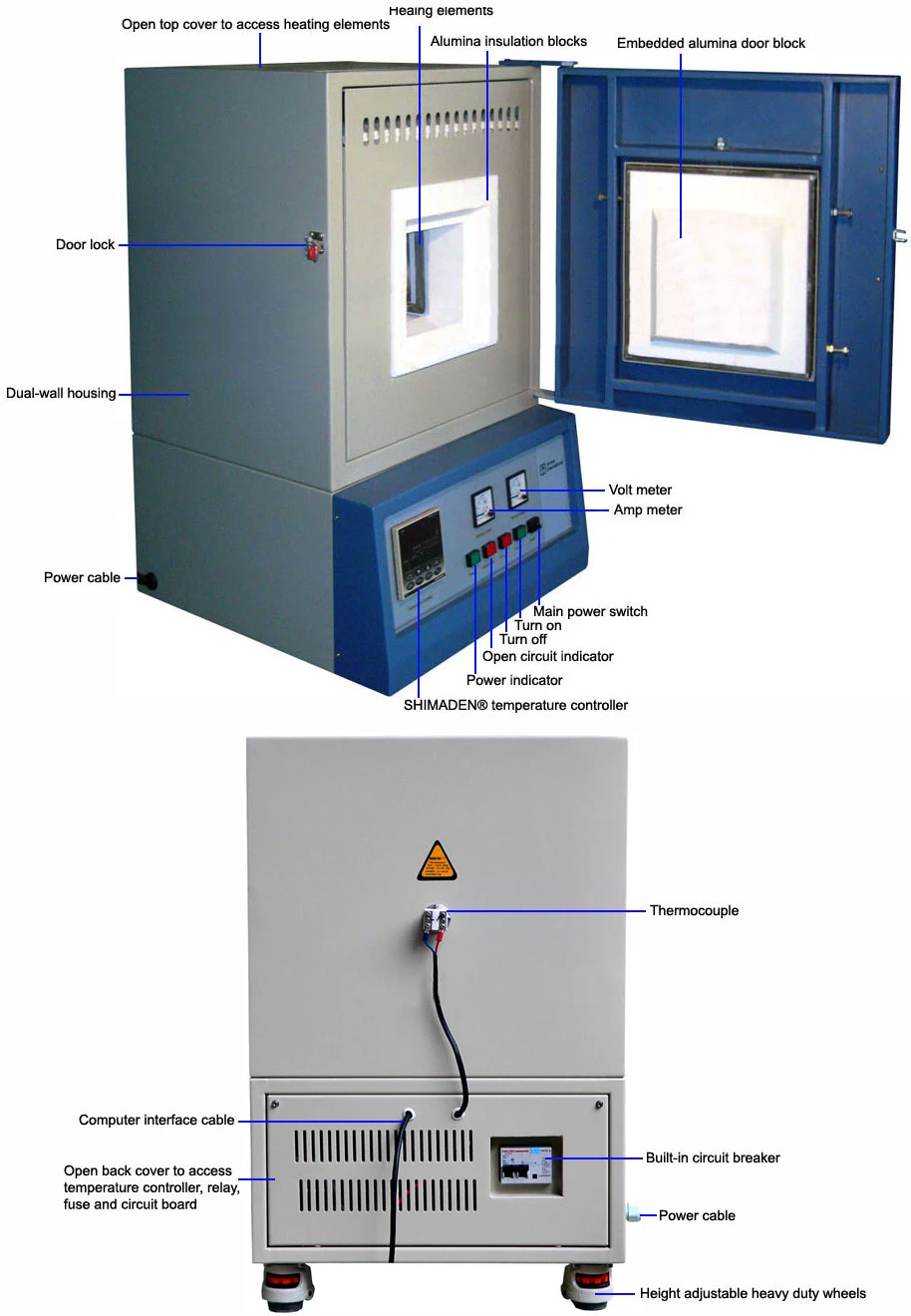

Product display

About us

FAQ

About Product

Q1:Which procedure to secure your Quality?

A1:Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.

Q2:How about your company product after-sales service system?

A2:Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.

Q3:Products standards?

A3:Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.

Q4:Our country's power supply and plug are different, how do you solve it?

A4:We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.

Q5:Payment methods?

A5:T/T, L/C, D/P and so on.

Q6:Packing method?

A6:Standard export wooden box packaging.

Q7:How about customers evaluation for your products?

A7:Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek,our high quality products and first-class after-sales service.Our services get the trust of the customer satisfaction and recognition for themselves.

Q8:Main export market?

A8:Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.

Q9:How to ensure the customer standard use the instrument?

A9:We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.

About Shipping

Q1:Order processing?

A1:Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or wee.
