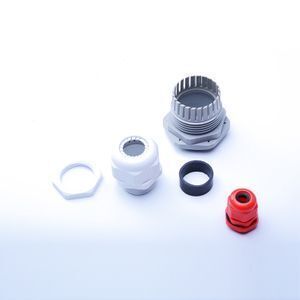

Factory Supply PG11Nylon Cable Gland

Thread:

PG,Metric,G,and NPT thread

Materials:

ULapproved Nylon PA66(Flammability UL 94V-2) for A.C.E parts,(Accept to make flammability UL 94V-0); EPDM rubber for B.D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).

Protection degree:

IP68

Working temperature:

-40℃ to 100℃

Features:

The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency.

Colours:

Black(RAL9005),Gray(RAL7035),other color available upon request

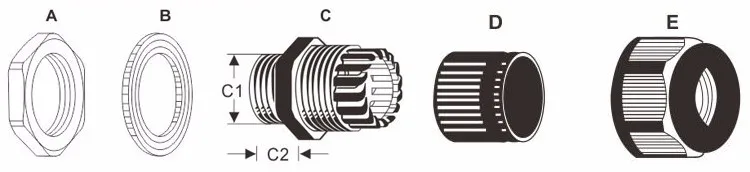

Product Model

Applicable to cable

Thread diameter

Thread length

Wrench diameter

PG7

3~6.5

12.5

15

16

PG9

4~8

15.2

15

19

PG11

5~10

18.6

15

22

PG13.5

6~12

20.4

15

24

PG16

10~14

22.5

15

27

PG19

12~16

24

15

27

PG21

13~18

28.3

15

33

PG25

16~21

30

18

35

PG29

18~25

37

18

42

PG36

22~32

47

18

52

Product

Model

Applicable

 to cable

Thread

 diameter

Thread

length

Wrench

diameter
