Good Quality Plastic Nylon Ip68 Pg Thread Cable Gland
- 0.02 >=1000 pieces
| Protection Level: | IP68; | Material: | Nylon; |
| Single package size: | 44X43X40 cm; | Certification: | CE IP68 SGS; |
| Packaging Detail: | plastic bag..; | Color: | Black,Gray,other color available upon request; |
| Size: | M16*1.5; | Working Temperature: | Static:-40℃~100℃; |
| Selling Units: | Single item; | Function: | resistant to the water ,dust,oil; |
| Thread length: | 8mm; | Feature: | Seal Part Hold Cable Firmly; |
| Model Number: | M16*1.5; | Place of Origin: | Zhejiang China; |
| Cable range: | 2~5; | Fire Proof Level: | 94V-2; |
| Usage: | Lock Cable Tight; | Brand Name: | Tolerance; |
| Thread O.D: | 12; | Single gross weight: | 26.0 KG; |
|
Thread: |
PG,Metric,G,and NPT thread |
|
Materials: |

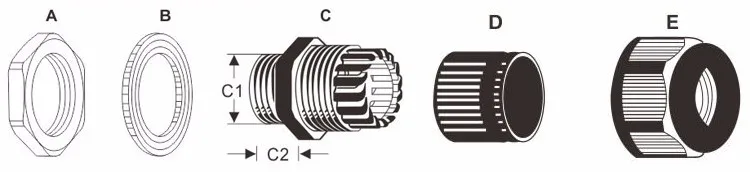

approved Nylon PA66(Flammability 94V-2) for A.C.E parts,(Accept to make flammability 94V-0); EPDM rubber for B.D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc). |
|
Protection degree: |
IP68 |
|
Working temperature: |
-40℃ to 100℃ |
|
Features: |
The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency. |
|
Colours: |
Black(RAL9005),Gray(RAL7035),other color available upon request |

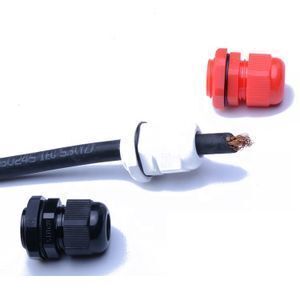

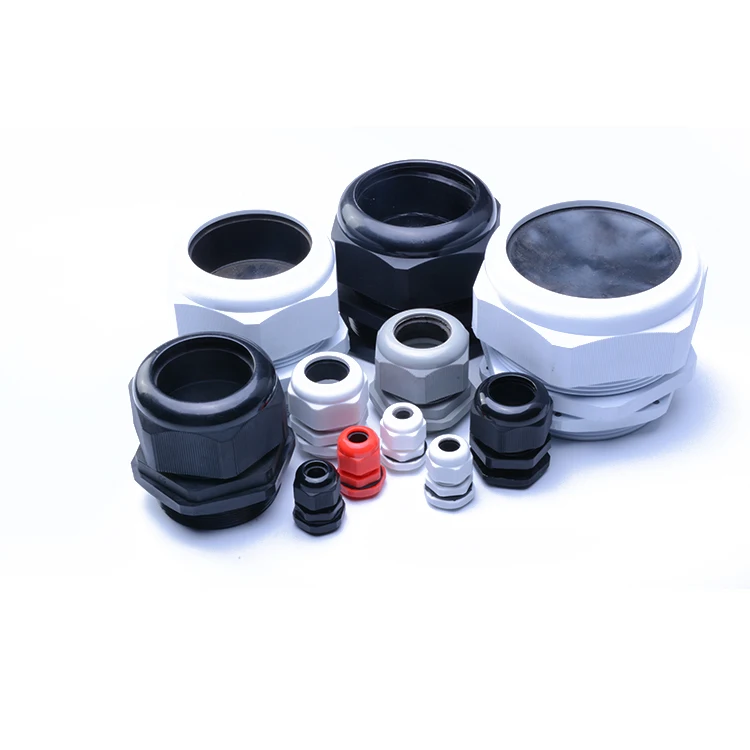

Product picture:
Specification:
| Product Model | Applicable to cable | Thread diameter | Thread length | Wrench diameter |
| (C1) | (C2) | |||
| M12*1.5 | 3~6.5 | 12 | 8 | 16 |
| M16*1.5 | 4~8 | 16 | 8 | 19 |
| M18*1.5 | 5~10 | 18 | 8 | 22 |
| M20*1.5 | 6~12 | 20 | 10 | 24 |
| M22*1.5 | 10~14 | 22 | 10 | 27 |
| M24*1.5 | 12~16 | 24 | 10 | 27 |
| M25*1.5 | 13~18 | 25 | 10 | 33 |
| M27*1.5 | 13~18 | 27 | 10 | 33 |
| M30*1.5 | 16~21 | 30 | 11 | 35 |
| M32*1.5 | 16~21 | 32 | 11 | 35 |
| M36*1.5 | 18~25 | 36 | 12 | 42 |
| M40*1.5 | 22~32 | 40 | 14 | 52 |
| M50*1.5 | 32~38 | 50 | 14 | 60 |
| M63*1.5 | 37~44 | 63 | 15 | 64 |
| M71*1.5 | 42~50 | 71 | 28 | 77 |
 |
Product Model | Applicable to cable | Thread diameter | Thread length | Wrench diameter |
| M12*1.5 | 2~5 | 12 | 8 | 16 | |
| M16*1.5 | 2~6 | 16 | 8 | 19 | |
| M18*1.5 | 3~7 | 18 | 8 | 22 | |
| M20*1.5 | 5~9 | 20 | 10 | 24 | |
| M22*1.5 | 7~12 | 22 | 10 | 27 | |
| M24*1.5 | 10~13 | 24 | 10 | 27 | |
| M25*1.5 | 9~16 | 25 | 10 | 33 | |
| M27*1.5 | 9~16 | 27 | 10 | 33 | |
| M30*1.5 | 13~18 | 30 | 11 | 35 | |
| M32*1.5 | 13~18 | 32 | 11 | 35 | |
| M36*1.5 | 13~20 | 36 | 12 | 42 | |
| M40*1.5 | 20~26 | 40 | 14 | 52 | |
| M50*1.5 | 25~31 | 50 | 14 | 60 | |
| M63*1.5 | 29~35 | 63 | 15 | 64 | |
| M71*1.5 | 32~40 | 71 | 28 | 77 |
Q1: Could I Put My Own Logo On It?
A1: Sure, of course, we are a professional manufacturer and have over 10 years OEM experience, customer;s logo can be made by laser, engraved, embossed, transfer printing etc.
Q2: What's the delivery time?
A2: Normally, 3-15days after order and payment confirmation. Actually, it will depend on your order quality.
Q3: What's your terms of payment?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4: How do you make our business long-term and good relationship?
A4: a. We keep good quality and competitice price to ensure our customers benefit;
b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5: If we bought your products, but found quality problem, how to solve?
A5: After confirmed, if the quality problem is caused by us not for outer sector, we will compensate each piece to customer.
