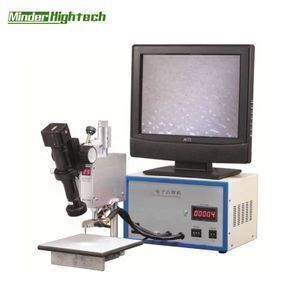

Electronic micro spot welder md-cw-450

Product details
Rated Capacity:200;Brand Name:MINDER;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:PLYWOOD;
Usage:Spot Welding;Voltage:110v/220v;
Port:GUANGZHOU/SHENZHEN;Dimensions:44*24*32cm;
Place of Origin:Guangdong China;Max. Welding Thickness:0.3mm;
Payment Terms:T/T;Weight:45KG;
Rated Duty Cycle:20%;Supply Ability:500 Set/Sets per Month;
Condition:New;Warranty:1 Year;
Certification:CE ISO;Power(W):100-1500w;

ELECTRONIC MICRO SPOT WELDER



Application:

Directly weld the enameled wires or metal wires from diameter 0.02mm to 0.4mm. huge widely applicate  to various kinds of electronic component which contain wire joints.



Feature:

Adjusted by three parameters(pulse amplitude,duration and force) and with the help of microscope, the electronic micro spot welder provides reliable and precisely welding joints.



1, directly welding enameled wires with out removing the enamel in advance,  with out adding tin.

2,Intelligently controls current that makes the welds reliable and stable.

3,Monitor and display welding current and welding force.

4,Pulse waveform adjusted by multi parameters.

5,Independent welding head.

6,Storage more groups of parameters.





Specifications:

Model

Input power

Max. output current

Frequency

Welding force

Welding ability for wire dia.

MD-

CW-300

220V,50Hz,180W

optional: 110V,60Hz

300A

120 shots/min

0.1-2.9N

0.02-0.2

MD-

CW-450

220V,50Hz,180W

optional: 110V,60Hz

450A

100 shots/min

1.0-7.0N

0.1-0.3

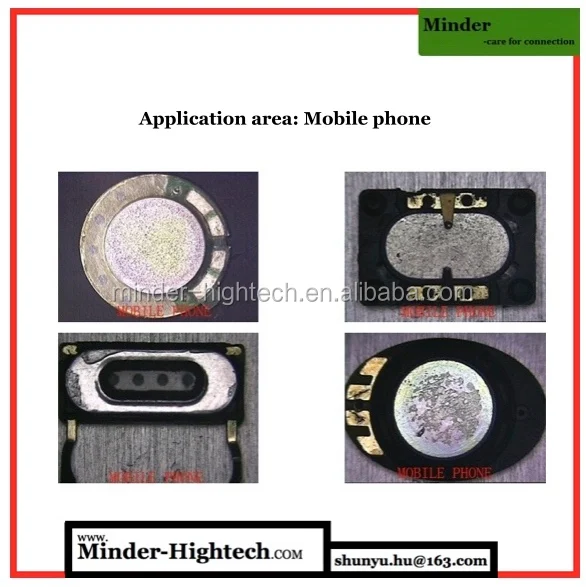

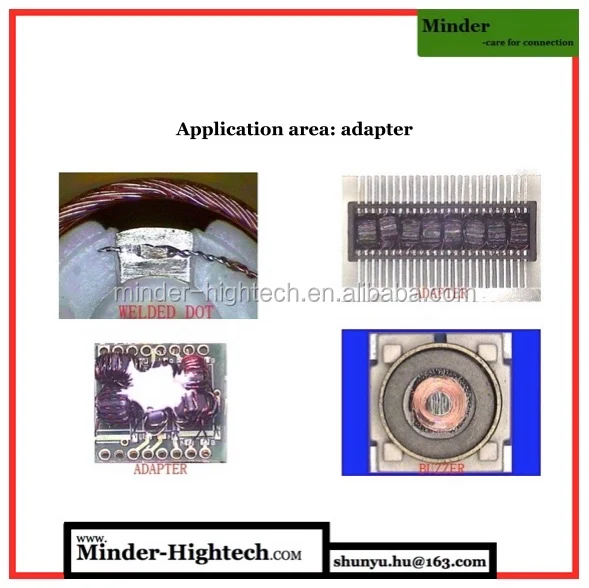

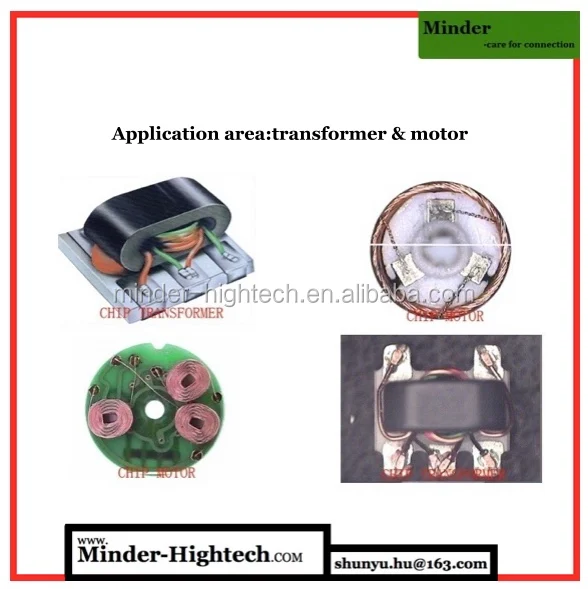

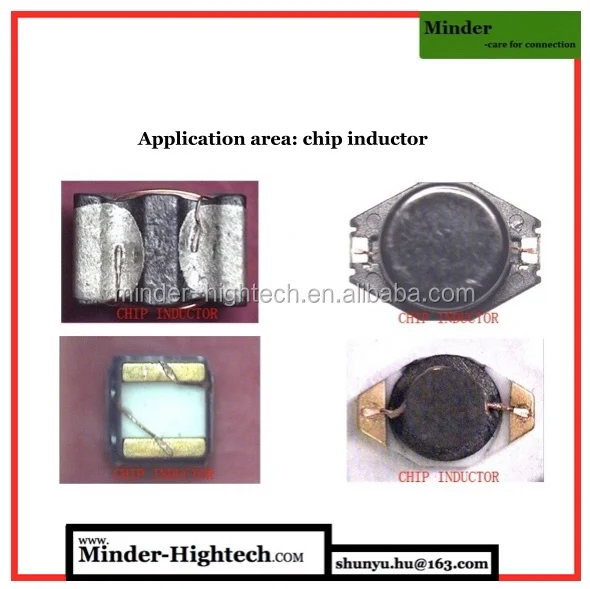

Welding sample:

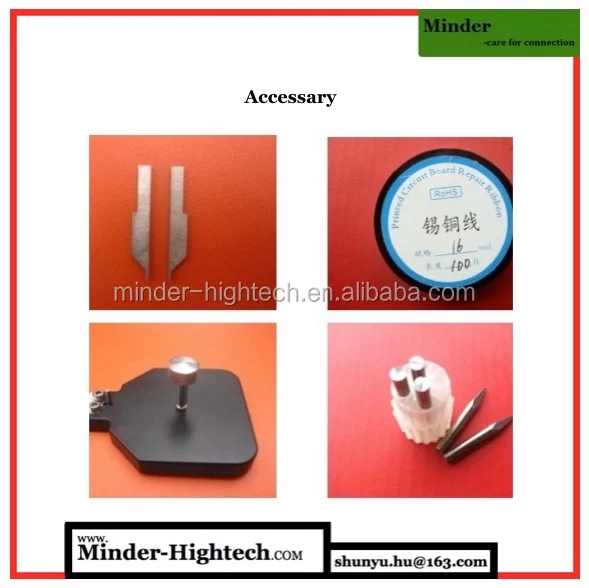

Consumable and accessary:



Other types of electronic micro spot welder



Contact us for more details.
