Max 85 inches Soldering COF Bonding Machine/Screen repair/LED LCD repair machine

Product details
Local Service Location:Turkey,India,Malaysia;Certification:CE ISO9001;
Supply Ability:10 Set/Sets per Week;Weight:300KG;
Packaging Detail:Wooden case;Condition:New;
Marketing Type:New Product 2020;Core Components:PLC;
Brand Name:Minder;Warranty:1 Year;
Power:1100W;Warranty of core components:1 Year;
Dimension(L*W*H):1800mm*1200mm*1520mm;Machinery Test Report:Provided;
After Warranty Service:Video technical support;Applicable Industries:Machinery Repair Shops;
Video outgoing-inspection:Provided;After-sales Service Provided:Engineers available to service machinery overseas;
Material:Metal;Function:LCD Screen Repairing;
Place of Origin:Guangdong China;Port:Guangzhou;
Payment Terms:L/C,D/P,D/A,T/T;Showroom Location:Turkey,India;
Voltage:AC220V/50Hz;Product name:LCD Screen Bonding Machine;
Product Description

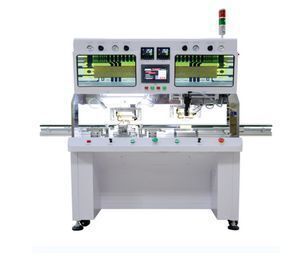

  Max 85 inches Soldering COF Bonding Machine MD-880HS

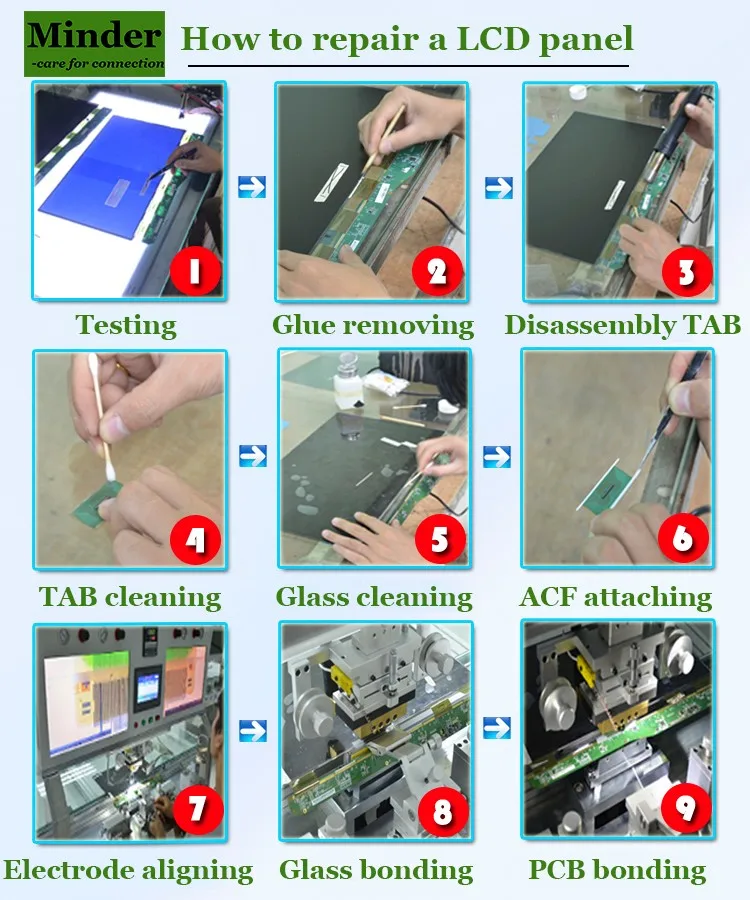

 According to maintenance staff tailored high-end products , machine not only in the accuracy of the temperature and the mechanical accuracy do the precision design , the procedures also increases the glass and circuit board parameters direct selected function , working pressure automatically switch , greatly facilitate the technical staff selected the parameters , increased the tool bit preheating function , to ensure that the machine at any temperature difference can ensure heating rate and temperature accuracy , the bonding effect reached factory-class level , high bonding excellent rate, low repair rate , this machine is the maintenance and after-sales staff preferred the classic model.



Features:

  • Design for 15" – 85" LCD/LED television repair.
  • Bonding ACF and FPC/COF/FOG/TAB to LCD (TFT, IPS).
  • Control by PLC, pulse heating method.
  • Touch screen operation, multiple bonding parameters can be set.
  • FPC/COF/FOG/TAB hot bar process.
  • Moveable platform.
  • CCD system helps to place work piece.



Specification:

Model

880SH

880DH

Head NO.

1

2

Name

Bonding machine

Application

FPC, COF, TAB and LCD Panel, PCB bonding

LCD size

15”-85”

Panel thickness

0.3mm-1.1mm(single layer glass)

IC No.

Multi/panel

Bonding direction

X or Y

Boning time

TFT, 1.8s/chip

Capacity

TAB, 380 pcs/H

Bonding accuracy

±1.5um

Positioning accuracy

±0.5um

Working environment

Clean, dust free

Air pressure

0.5-0.7Mpa

Automatic pressure

Multi pressure, max 10 segments

Input

AC220V/50Hz

Power

1200W

Pneumatic parts

Japan SMC MXS20-75/MXS20-100

Heating method

Pulse heating

PID temperature system

Brand: Japan AZBIL

Model: C36TV0UA1200

Hot head

Material: Japan titanium alloy

Size: 45*1.4*10

Plane precision: 0.001mm

Plane thickness: 0.5mm

Thermocouple

K type, origin USA OMEGA

Controller

Japan Panasonic PLC

Image system

Japan Panasonic image system

COF positioning: down positioning

PCB positioning: Yes

Camera quantity: 3

Microscope: 30-120 zoom

COF monitor: 19”*1 /9″*2

PCB positioning monitor: Yes

Up light: Yes

Down light: Yes

COF fine adjustment

Origin: Taiwan

Guide rail type: U type

Accuracy: 0.01mm

Adjust direction: X/Y/R

R range: Rough adjustment 360°;

             Fine adjustment ±5°

COF fixture

Mechanical fixed

Camera fine adjustment

Control: X/Y/Z micrometer

Focus adjust: manual

LCD platform

Moveable, slide by hand

Alarm

Air pressure fault;

Temperature fault;

Thermocouple fault;

Operation fault

Hot head positioning

Any positon

Parameter memory

Multi parameter group storage

Size

L1800*W1200*H1520mm

Weight

300kg



Our Services
  1. Help customer analyze product project and provide solution.
  2. Freely sample test.
  3. Skilled jig design services.
  4. Provide shipping/delivery information checking service.
  5. One year guarantee, all life maintain promise.
  6. 24 hours feedback speed by email of others.
