wharf shipyard container lifting cranes

Supplier: Henan Crane Co., Ltd.
Region: Henan, China
Contact: Mr Basheer Zhang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Vessel:	All kinds seaport vessel;
Portal crane lifting speed:	18m/min ~56m/min, as your request;	Span:	Asyour reference;
After-sales Service Provided:	Field maintenance and repair service;	Rated Lifting Moment:	Crane standard capacity;
Packaging Detail:	wharf shipyard container lifting cranes Packaging Standard: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.;	Main electrical parts:	Siemens, Schneider and CHINT;
After-sales Service Provided:	Engineers available to service machinery overseas;	Feature:	Portal Crane;
Payment Terms:	L/C,T/T,Western Union;	Applicable Industries:	Manufacturing Plant,Construction works ;
Rated Loading Capacity:	Crane standard;	Place of Origin:	Henan China;
Single jib portal crane luffing speed:	15m/min ~48m/min, as your request;	Certification:	CE, ISO, SGS, CCC;
Application:	Seaport,dockyard ,port;	Single jib portal crane slewing speed:	1.3m/min~1.6m/min, as your request;
Supply Ability:	1000 Set/Sets per Year;	Warranty:	1 Year;
Brand Name:	Yuefei;	Max wheel load:	About 275KN;
Item:	Single jib portal crane;	Single jib portal crane span and base:	10.5m*10.5m, can be as your request;
Working radius:	37m;	Port:	Tianjin, Qingdao;
Max. Lifting Height:	Above rail 25m+Under rail18m;

wharf shipyard container lifting cranes

Product Introduction

CE Certificated four link type shipyard wharf shipyard container lifting cranes has various applications, such as loading and unloading at port, materual handing at dockyard, ship building and repairing yard, metalluygy industry. The four link type shipyard wharf shipyard container lifting cranes is composed of frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader, hook), electrical equipment and other aiding devices for safety

Four link type shipyard wharf shipyard container lifting cranes design and manufacturing standards: Specification for the harbor wharf shipyard container lifting cranes (GB/T17495-1998), Safety rules for lifting appliances (GB/T14406-1993); ISO standards, FEMstandards and JIS standards

Portal crane devides into two types :

One is single-link wharf shipyard container lifting cranes, and the other is four-link wharf shipyard container lifting cranes.

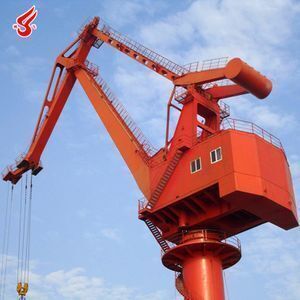

Four-link portal crane

Four-link wharf shipyard container lifting cranes has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, the mainstructures are composedof steel frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism,spreader device (grab, container spreader, and hook and electric dist), electrical equipment
and other accessory equipments for safety.

Single-link portal crane

Single-link wharf shipyard container lifting cranes is a kind of hoisting machine especially used inport,harbour, dock, shipyard with small investment for loading and unloading front apron container, sundries and bulk cargo.It mainly includes the following units: crane strong steel frame, lifting mechanism,luffing mechanism, slewing mechanism, traveling mechanism .

Product Details

Technical parameters and structure chart

Four-bar linkage Type
Load Capacity	16t	25t	40t
Working Range	30m, 33m, 35m, 37m	28m, 30m, 35m, 36m	30m, 35m, 39m, 40m, 43m
Wheel Dis.	10.5m, 12m, 16m	10.5m, 12m, 16m	10.5m, 12m, 16m
Lifting Speed	60m/min	55m/min	50m/min
Luffing speed	50m/min	50m/min	45m/min
Rotating Speed	1.0~1.5r/min	1.0~1.3r/min	1.0~1.2r/min
Traveling Speed	26m/min	26m/min	26m/min

Single Mast Type
Load Capacity	40t	45t
Working Range	11~30m, 12~35m	12~35m, 13~28m
Wheel Dis.	10.5m, 16m	10.5m, 16m
Lifting Speed	25m/min	25m/min
Luffing speed	25m/min	25m/min
Rotating Speed	0.8~1.0r/min	0.8~1.0r/min
Traveling Speed	26m/min	26m/min

Single-link portal crane

Features

1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request.

Application

Four link type shipyard wharf shipyard container lifting cranes is a kind of hoisting machine especially used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo, also used in materual handing dockyard, ship building and repairing yard, metalluygy industry.

Safety Device

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows :

♦ Overload Limit Switch
♦ Rubber Buffers
♦ Electric Protective Devices
♦ Emergency Stop System
♦ Voltage Lower Protection Function
♦ Current Overload Protection System
♦ Rail Anchoring
♦ Lifting Height Limit Device

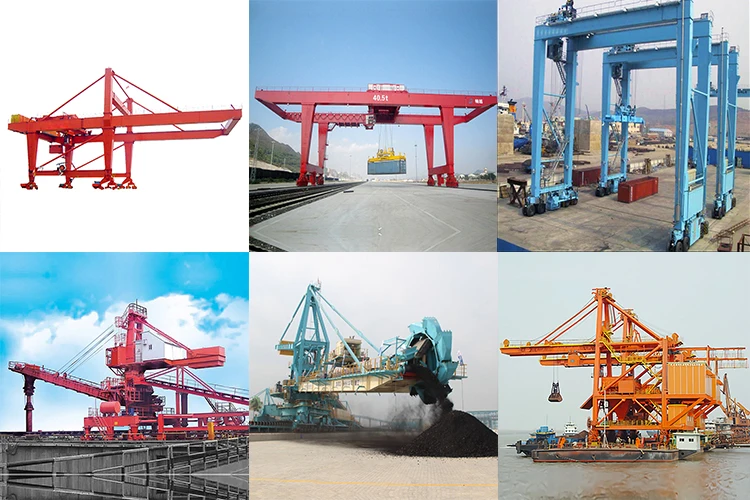

Related products and pictures

Main Products

YUFEI cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on. The crane series includes Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
