Warehouse Container Handling Mobile Container Crane Price

Supplier: Henan Nybon Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Kevin An
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Manufacturing plants, food stores	Packaging Details:	Container loading and unloading Mobile container crane Warehouse price standard Export packaging The main engine is packed in bubble film, and the accessories are packed in wooden boxes
Marketing Type:	Hot Products of 2022	application:	Wharf, port, workshop
minute. Ground clearance:	80mm	maximum. Lifting speed:	0.04 m/s
Rated load capacity:	40T, customized	maximum. Lifting height:	4700mm
maximum. Lifting height:	4.7m, customized	Core components:	Engine, gearbox, motor
Health status:	new	Weight:	8.7T
Origin:	Henan, China	Showroom location:	not any
Mechanical test report:	if	Generator set model:	KM385QB KM485QB
Weight (kg):	5000 kg	Supply capacity:	The monthly price of 100 sets of mobile container cranes for container handling is
Lifting hydraulic cylinder diameter:	203mm	Core component warranty:	1 year
Drive wheel diameter:	450 mm	payment terms:	L/C, T/T
maximum. Running speed:	4km/h	span:	2.5m or customized
Warranty:	2 years	specified load:	40 tons
Video outbound inspection:	if	port:	Tianjin/Shanghai/Qingdao
Name:	Warehouse Mobile Container Crane Price	brand:	Nippon
feature:	Gantry crane

Product Description

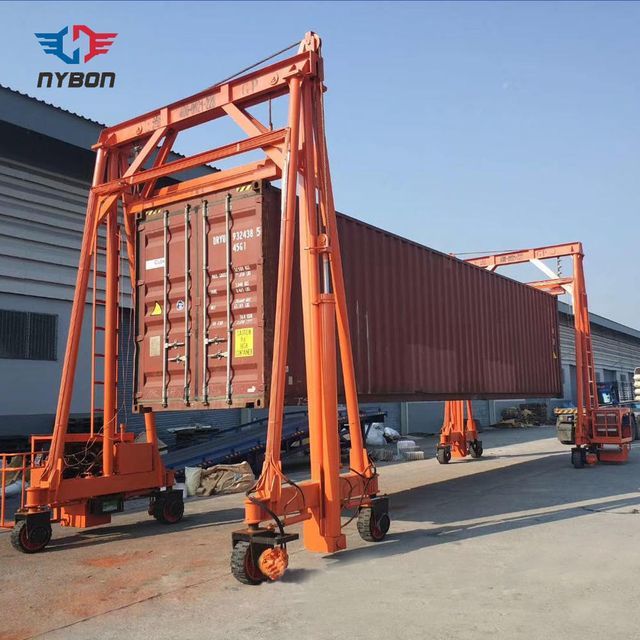

Warehouse Container Handling Mobile Container Crane Price

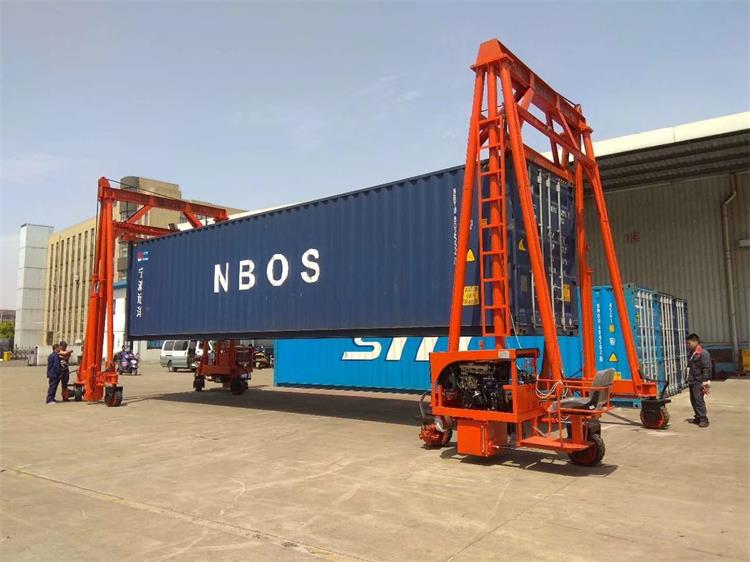

The mobile container crane is a special container crane specially produced for small and medium-sized container yards and enterprise container shipments, with low operating costs. The main functions are: loading and unloading containers from trucks at the job site, operators can load containers continuously. At the same time, using containers as a transit will greatly shorten the waiting time for container trucks to load, and can increase the efficiency of container trucks by 12 to 15 times.

The container crane is powered by 490BPG diesel engine, which has the characteristics of low running noise and small vehicle vibration. The main body is composed of steel frame, steel wire rope, hydraulic motor of hydraulic transmission system, gear pump, steering cylinder, lifting cylinder, double-acting balance valve and walking solid tires. The lifting mechanism adopts four oil cylinders with a diameter of 180 mm, which has large lifting capacity, low system pressure, stable and safe lifting, and high loading and unloading efficiency. It adopts two-wheel drive and four-wheel steering, and the rotation angle is large, up to 110 degrees. Steering and translation at any angle can be realized, and the turning radius is small. The control system consists of a complete set of valve body and operating rod, which is simple, convenient and flexible to operate.

Container cranes are required to be used on flat, hardened, pit-free sites. It is suitable for loading and unloading containers in logistics companies, warehouses, terminals, container yards, freight yards, etc.
It is a high-quality, low-cost, convenient and practical container lifting equipment.

thing		Technical Parameters
specified load		40 tons
maximum. lift height		4700mm
maximum. Lifting speed		0.04 m/s
Self-respect		8.7T
Genset model		KM385QB KM485QB
Generator power/rated speed		26/3300 kW/rev/min 35/3300 kW/rev/min
maximum. Torque/speed		85/2110~2310[Nm/r·min] 115/2110~2310[Nm/r·min]
maximum. running speed		4km/h
Lifting hydraulic cylinder diameter		203mm
Increase system pressure		10 MPa
Steering hydraulic cylinder diameter		75 mm
steering system pressure		15 MPa
Hydraulic motor torque		949 Nm
Hydraulic motor speed range		6~400 rpm
Drive wheel diameter		450mm
minute. Ground clearance		80mm
Dimensions	length	4900mm
	width	2500mm
	high	6600mm
