40 foot container lifting mobile handle crane per station

Supplier: Henan Nybon Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Kevin An
Price: $8888.00 / 1 - 4 sets
$7777.00 / 5 - 9 sets
$5555.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

feature:	Gantry crane	Showroom location:	not any
specified load:	40 tons	Applicable industries:	Mechanical Repair Shops, Manufacturing Plants, Energy & Mining
port:	Qingdao Port	span:	5.8m
Generator set model:	KM385QB KM485QB	Warranty:	2 years
place of origin; place of origin:	Henan, China	Supply capacity:	100 40ft container lifting mobile gantry cranes per month for station
Marketing Type:	New Products 2021	brand:	Nibon
Rated load capacity:	40T	Weight (kg):	2000 kg
maximum. Lifting height:	2.36m	payment terms:	letter of credit, wire transfer
Lifting hydraulic cylinder diameter:	180mm	minute. Ground clearance:	80mm
Name:	40ft container lifting mobile gantry crane for station	Mechanical test report:	if
Self-weight:	9.5T	maximum. Running speed:	4 km/h
application:	wharf, port, workshop	maximum. Lifting speed:	0.04m/s
Health status:	new	Drive wheel diameter:	450mm
Video external inspection:	if	maximum. Lifting height:	2360mm
Packaging Details:	40ft Container Lifting Platform Mobile Gantry Crane Standard Export Packaging Mainframe is packed in bubble wrap, parts are packed in wooden case	Core components:	programmable logic controller
Core Components Warranty:	1 year

Product Description

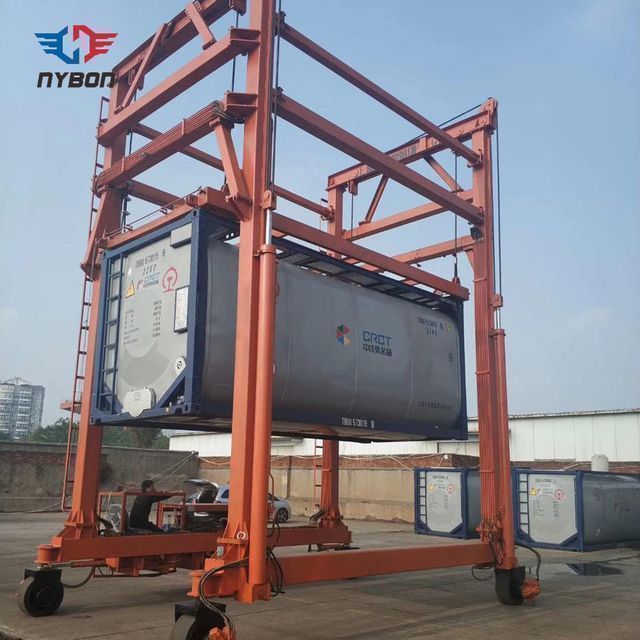

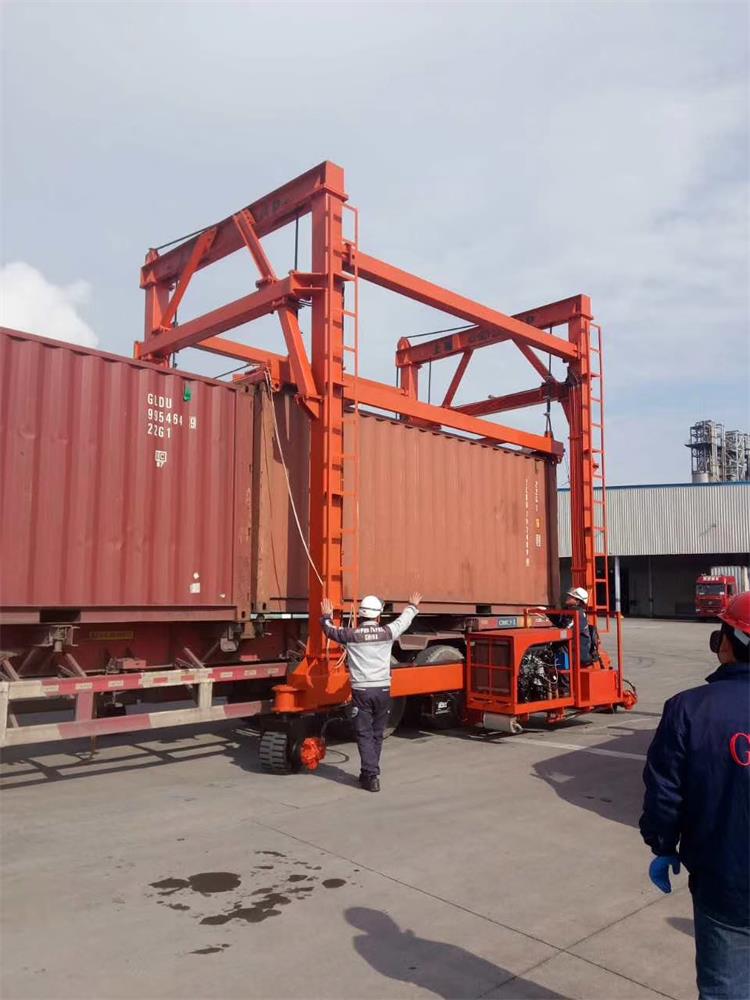

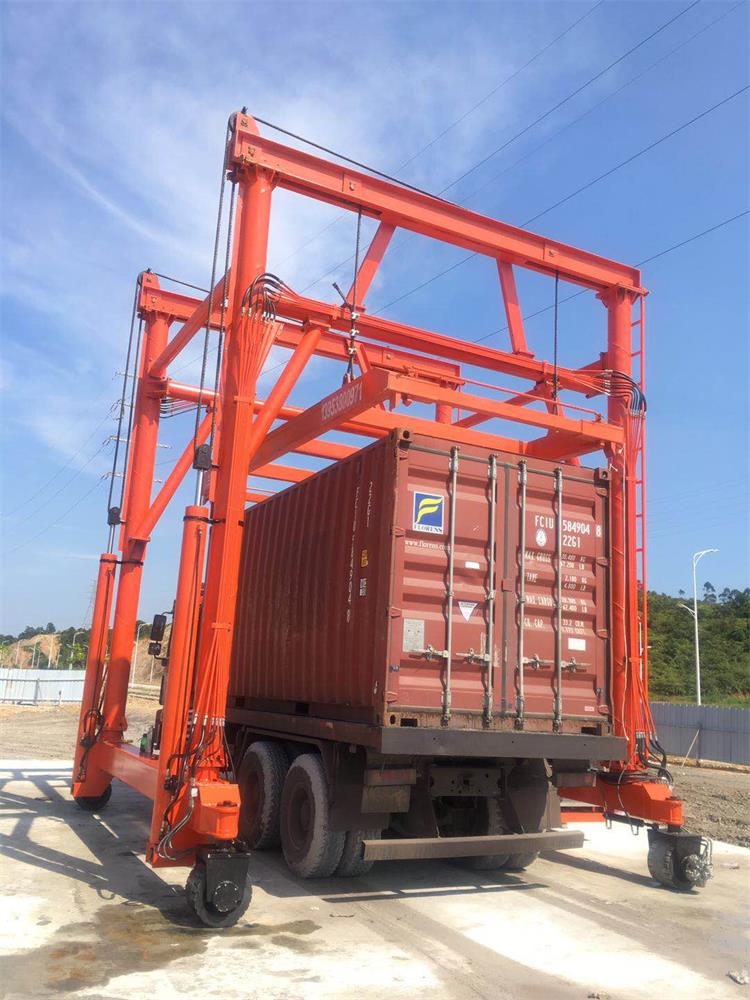

40ft container lifting mobile gantry crane for station

The mobile container crane is a container-specific crane specially produced for small and medium-sized enterprises.
Container yard and corporate container shipping with low operating costs. The main functions are: loading
And unload the container from the truck on the job site, the operator can continuously load the container.
At the same time, the use of containers as a transit will greatly shorten the waiting time of container trucks.
loading, which can increase the efficiency of container trucks by 12 to 15 times.

The container crane is powered by a 490BPG diesel engine with low operating noise and low vehicle
vibration. The main body is composed of steel frame, wire rope, hydraulic transmission hydraulic motor
System, gear pump, steering cylinders, lift cylinders, double acting counterbalance valve and running solid tires. This
The lifting mechanism adopts four oil cylinders with a diameter of 180mm, which has a large lifting capacity.
The system pressure is small, the lifting is stable and safe, and the loading and unloading efficiency is high. it
With two-wheel drive, four-wheel steering, the maximum rotation angle can reach 110 degrees. it can achieve
Steering and panning at any angle, with a small turning radius. The control system consists of a
The valve body and the operating rod are complete sets, the operation is simple, convenient and flexible.

Container cranes need to be used on flat, hardened, pit-free sites. it is suitable for loading
And container unloading in logistics companies, warehouses, docks, container yards, freight yards, etc.
It is a high-quality, low-cost, convenient and practical container lifting equipment.

thing		technical parameter
specified load		40T
maximum. Lifting height		2360mm
maximum. Lifting speed		0.04m/s
dead weight		9.5T
Generator set model		KM385QB KM485QB
Generator power/rated speed		26/3300kw/r/min 35/3300kw/r/min
maximum. Torque/Speed		85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
maximum. running speed		4 km/h
Lifting hydraulic cylinder diameter		180mm
Raise system pressure		16Mpa
Steering cylinder diameter		75mm
steering system pressure		15Mpa
Hydraulic motor torque		949 Nm
Hydraulic motor speed range		6~400r/min
Drive wheel diameter		450mm
minute. Ground clearance		80mm
Dimensions	length	6000mm
	width	5800mm
	high	7500mm
