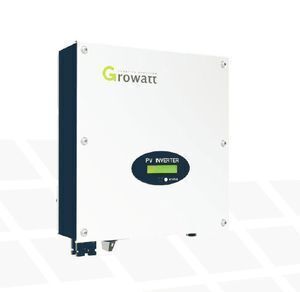

1KW-80KW Growatt On Grid Inverter 40KW multiple input mppt solar inverter with wifi monitor system

Supplier: Soeasy (Xiamen) Photovoltaic Technology Co.,Ltd.
Region: Fujian, China
Contact: Ms Soeasy Robot
Price: $251.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	multiple input inverter;	MPPT efficiency:	99.5%;
Output Current:	Customized;	Selling Units:	Single item;
Weight:	25;	Output Frequency:	50/60hz;
Warranty:	5 Years;	Input Voltage:	220/380v;
Max. DC power:	1000W-90000W;	Product name:	Growatt On Grid Inverter 40KW;
Size:	505050cm;	Type:	DC/AC Inverters;
Place of Origin:	China;	Key Word:	mppt solar inverter with wifi monitor system;
Max.efficiency:	97.4%;	PV voltage range:	70V-550V;
Single gross weight:	27 KG;	Output Type:	Single,TRIPLE;
Package Preview:	https://sc01.alicdn.com/kf/HTB1gmsIVlLoK1RjSZFu760n0XXaf.png_640x640.png;	Start voltage:	160V;
Model Number:	mppt solar inverter with wifi monitor system;	Operating temperature:	-25 °C ... +60 °C;
Package Type:	Standard Carton Package for mppt solar inverter with wifi monitor system;	Single package size:	55X55X30 cm;

Product Introduction

Product Parameters

Datasheet	Growatt 7000TL3-S	Growatt 8000TL3-S	Growatt 9000TL3-S	Growatt 10000TL3-S	Growatt 11000TL3-S
Input data
Max. recommended PV power (for module STC	8400W	9600W	10800W	12000W	13200W
Max. DC voltage	1000V	1000V	1000V	1000V	1000V
Start Voltage	160V	160V	160V	160V	160V
PV voltage range	160V-1000V	160V-1000V	160V-1000V	160V-1000V	160V-1000V
Nominal voltage	600V	600V	600V	600V	600V
MPP voltage range at Full Power	320V-850V	320V-850V	320V-850V	320V-850V	320V-850V
Max. input current	11.5A/11.5A	11.5A/11.5A	11.5A/11.5A	13A/13A	13A/13A
Number of independent MPP trackers/ strings per MPP tracker	2/1	2/1	2/1	2/1	2/1
Output (AC)
Max AC apparent power	7kW	8kW	9kW	10kW	11kW
Max AC apparent power	7.7kVA	8.8kVA	9.9kVA	11kVA	12.1kVA
Max. output current	11.7A	13.3A	15A	16.7A	18.3A
AC nominal voltage;range	230V/400V ; 320-478V	230V/400V ; 320-478V	230V/400V ; 320-478V	230V/400V ; 320-478V	230V/400V ; 320-478V
AC grid frequency	50 /60Hz ±5Hz	50 /60Hz ±5Hz	50 /60Hz ±5Hz	50 /60Hz ±5Hz	50 /60Hz ±5Hz
Adjustable power factor	0.8leading - 0.8laging	0.8leading - 0.8laging	0.8leading - 0.8laging	0.8leading - 0.8laging	0.8leading - 0.8laging
THDi
AC grid connection type	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE
Efficiency
Max.efficiency	98.30%	98.30%	98.40%	98.40%	98.40%
Euro - eta	97.50%	97.80%	98%	98%	98%
MPPT efficiency	99.50%	99.50%	99.50%	99.50%	99.50%
Protection Devices
DC reverse polarity protection	yes	yes	yes	yes	yes
DC switch	yes	yes	yes	yes	yes
Output over current protection	yes	yes	yes	yes	yes
Output AC overvoltage Protection -Varistor	yes	yes	yes	yes	yes
Ground fault monitoring	yes	yes	yes	yes	yes
Grid monitoring	yes	yes	yes	yes	yes
Integrated all-pole sensitive leakage current monitoring unit	yes	yes	yes	yes	yes
General Data
Dimensions(W/H/D)	480/448/200 mm	480/448/200 mm	480/448/200 mm	480/448/200 mm	480/448/200 mm
Weight	21.6kg	21.6kg	21.6kg	21.6kg	21.6kg
Operating temperature range	-25 °C ... +60 °C	-25 °C ... +60 °C	-25 °C ... +60 °C	-25 °C ... +60 °C	-25 °C ... +60 °C
Noise emission (typical)	≤35 dB(A)	≤35 dB(A)	≤35 dB(A)	≤35 dB(A)	≤35 dB(A)
Altitude	3000m	3000m	3000m	3000m	3000m
Self-consumption night	< 0.5W	< 0.5W	< 0.5W	< 0.5W	< 0.5W
Topology	Transformerless	Transformerless	Transformerless	Transformerless	Transformerless
Cooling concept	Natural	Natural	Natural	Natural	Natural
Environmental Protection Rating	IP65	IP65	IP65	IP65	IP65
Relative humidity	0~100%	0~100%	0~100%	0~100%	0~100%

Product Details

mppt solar inverter with wifi monitor system

Product Application

Our company

Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1 kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
