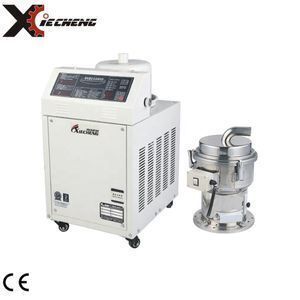

pellets vacuum autoloader filter machinery plastic material hopper loader

Click here to contact

Product details

Dimension(LWH):	450380670mm;	Packaging Detail:	Standard wooden case as usual;
Weight:	54KG;	Dimension:	main unit: 420380640mm;
Certification:	CE;	Application:	plastic industry;
Conveying capacity:	450kg/h;	Motor:	induction type;
Condition:	New;	Place of Origin:	Guangdong China;
After-sales Service Provided:	Online support,Video technical support;	Controller:	microcomputer;
Lifetime:	more than 5 years;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:	Jiangmen/Guangzhou/Shenzhen;	Loading distance:	4 m;
Reservoir Volume:	7.5L;	Warranty:	1 year;
Brand Name:	XIECHENG;	Voltage:	380V/50Hz/3Phase as usual;
Applicable Industries:	Manufacturing Plant;	Motor Power:	1.1KW/1.5HP;
Supply Ability:	500 Set/Sets per Month;	Power(W):	1100;
Security setting:	overload protection;	Usage:	industry plastic;

pellets vacuum autoloader filter machinery plastic material hopper loader

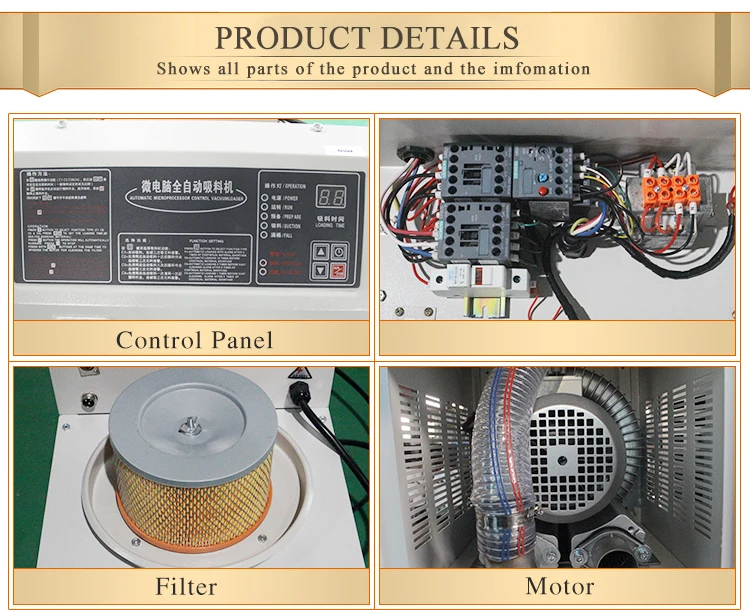

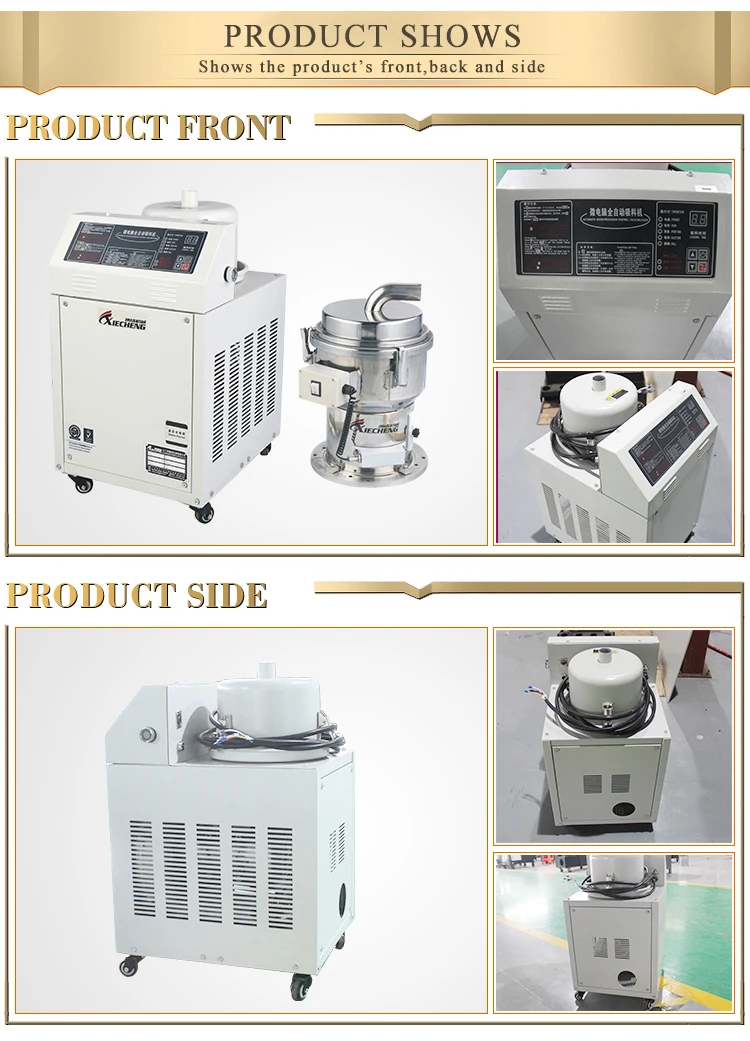

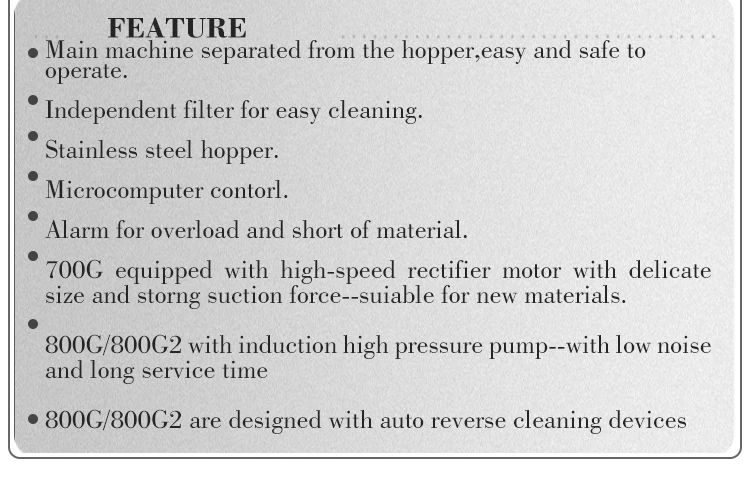

DETACHABLE AUTO LOADERS

Main machine separated from the hopper, easy and safe to operate.

Independent filter for easy cleaning.

Stainless steel hopper.

Microcomputer control.

Alarm for overload and short of material.

700G equipped with high – speed rectifier motor with delicate size and strong suction force – suitable for new materials.

800G/800g2 with induction high pressure pump – with low noise and long service time.

800G and 800G2 are designed with auto reverse cleaning devices.

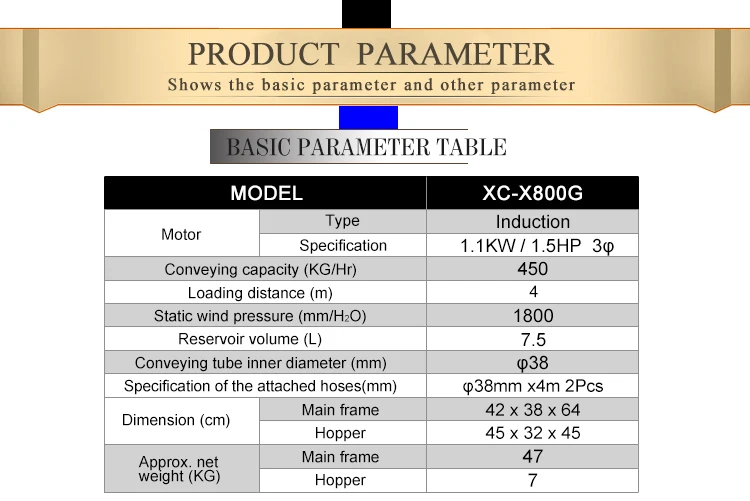

Model		XC-X700G	XC-X800G	XC-XF800G2
Motor	Type	Carbon brush	Induction	Induction
Motor	Specification	1kw/1.3hp 1φ	1.1kw/1.5hp 3φ	1.5kw/2hp 3φ
Conveying capacity(kg/hr)		310	450	590
Loading distance(m)		4	4	5
Static wind pressure(mm/H₂O)		1550	1800	2400
Reservoir volume(L)		7.5	7.5	7.5
Conveying tube inner dim		φ38	φ38	φ38
Specification of the attached hoses		φ38mm×4m 2pcs	φ38mm×4m 2pcs	φ38mm×5m 2pcs
Dimensions (cm)	Main fram	37×30×56	42×38×64	50×40×72
Dimensions (cm)	Hopper	28×34×43	45×32×45	45×32×45
Net weight(kg)	Main fram	14	47	66
Net weight(kg)	Hopper	6	7	27
