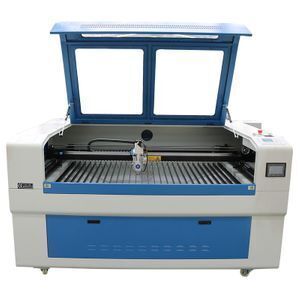

1390 100W 130W 150W 280W 300W CNC metal laser cutting engraving machine price for stainless steel Acrylic wood and MDF

Supplier: Jinan Lxshow Laser Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms Belle Liu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Advertising Company;	Transmission:	Taiwan dongfeng belt transmission;
Key Selling Points:	Cutting both metal and non-metal;	Cutting thickness:	0-2.5mm stainless steel, 0-3mm carbon steel;
Packaging Detail:	Packaging Details: PLYWOOD CASES Delivery Detail: 7-10 working days;	Name:	LXJ1390 laser engraving and cutting machine;
Cutting Area:	1300*900mm;	Laser Type:	CO2;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Warranty:	2 Years;
Laser-type:	Co2;	Positioning accuracy:	0.01mm;
Laser Source Brand:	RECI;	Condition:	New;
Working table:	Blade table/Honeycomb table;	Applicable Material:	Acrylic,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood;
Cooling mode:	Industrial water chiller;	Power:	90w/100w/130w/150w/180w/280w;
Application:	Laser Cutting;	Place of Origin:	Shandong China;
Supply Ability:	300 Set/Sets per Week;	Guide:	Taiwan square guide rails;
Control Software:	Ruida 6332M;	Certification:	CE,ISO;
Graphic Format Supported:	AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;	CNC or Not:	Yes;
Cutting Speed:	500mm/s;	Port:	Qingdao port;
Brand Name:	JNLINK;	Cutting Thickness:	Depends;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Cooling Mode:	Water Cooling;
Driving system:	Yako stepper motor and driver;

1390 130W 150W 280W 300W CNC metal laser cutting engraving machine price for stainless steel Acrylic wood and MDF

Product Description

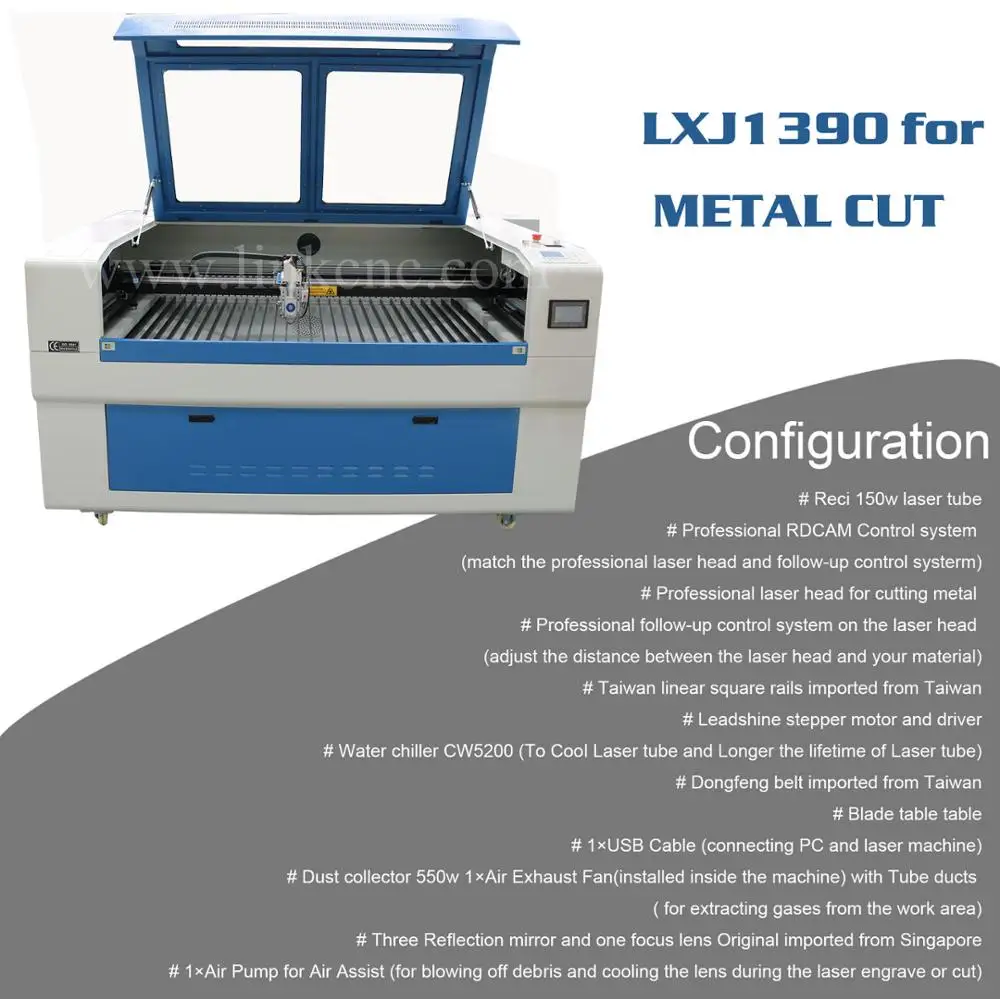

Machine features

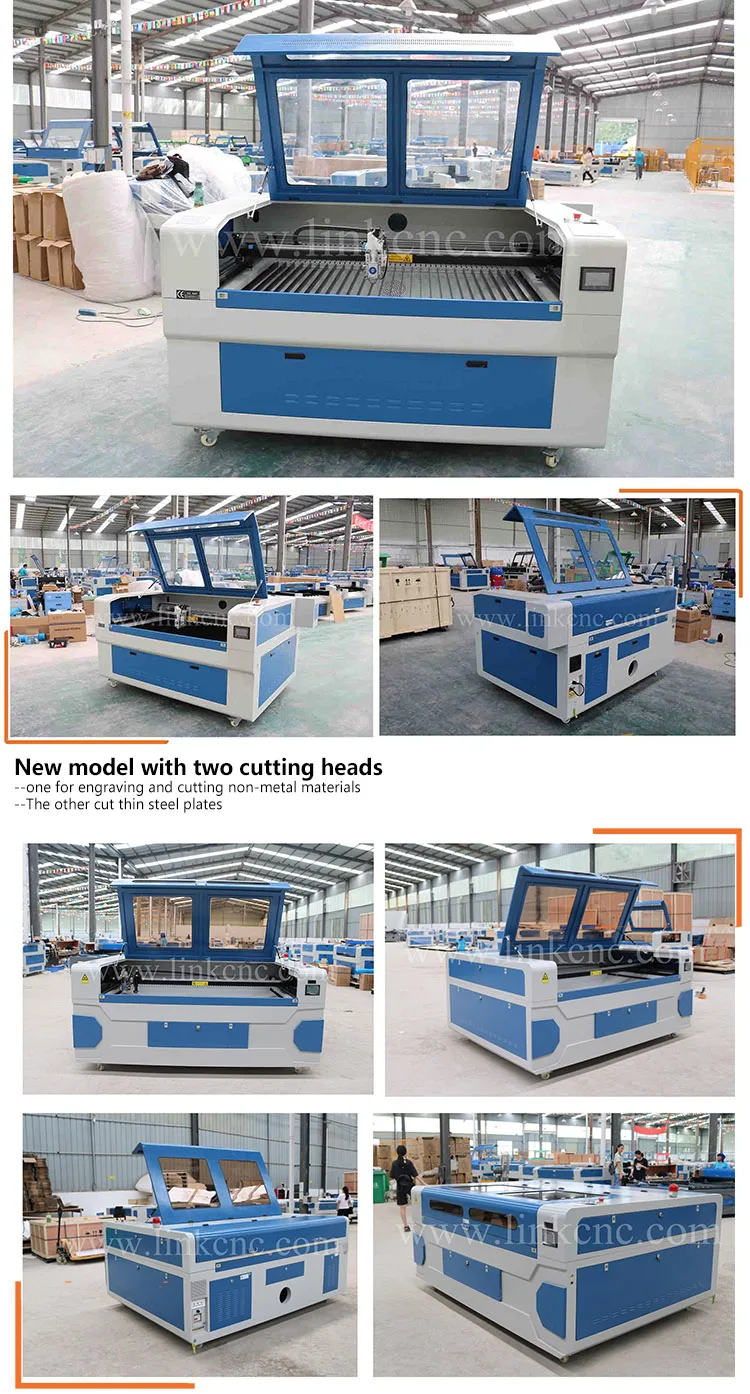

Machine photos

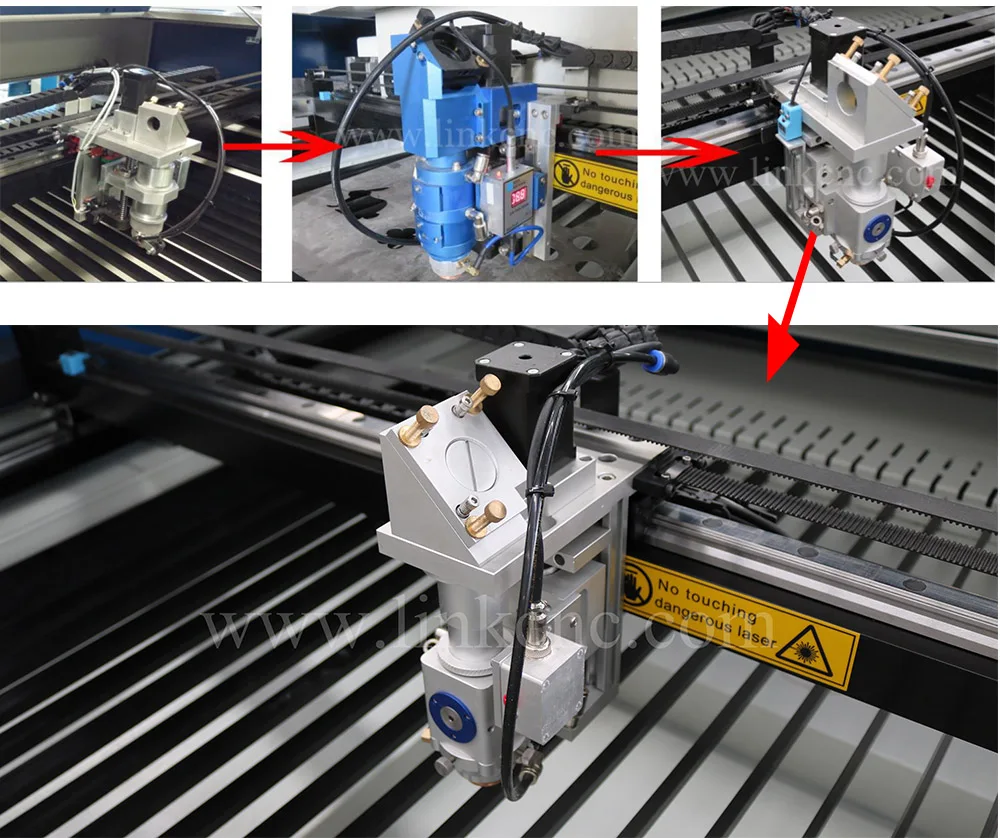

1. Cutting head

We have developed the cutting head constantly to improve the cutting precision.

Now we are adopting our third generation, which such as higher precision, better stability, more convenient

to adjust.

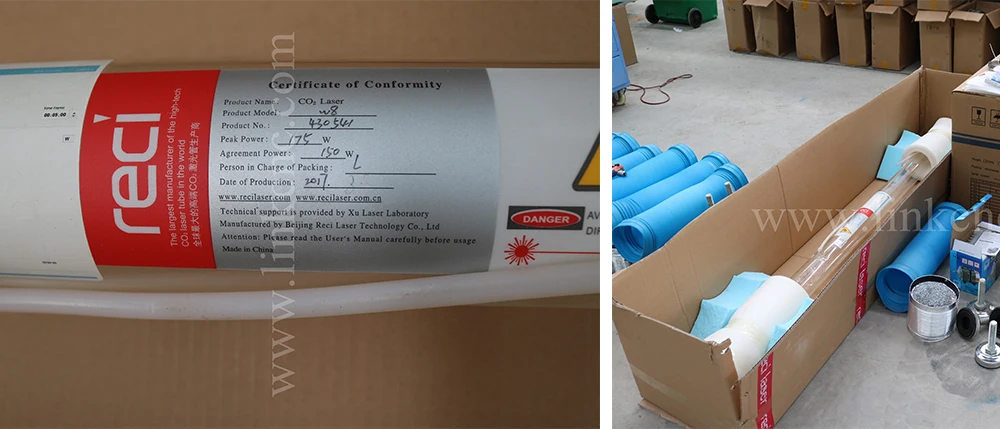

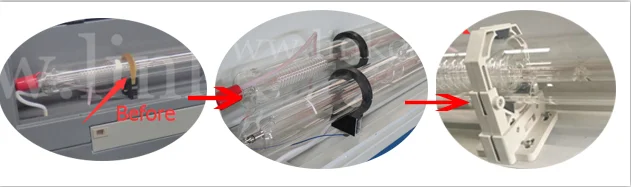

2. Laser Tube ( Original Reci laser tube , Best band in china )

Using life: 8000-10000 hours

Global Warranty 10 months

We not only use the best brand laser tube, in order to make the laser tube to play the best results, for the

auxiliary components, we have also made constantly improvements, such as laser tube bracket, lens bracket,

etc.

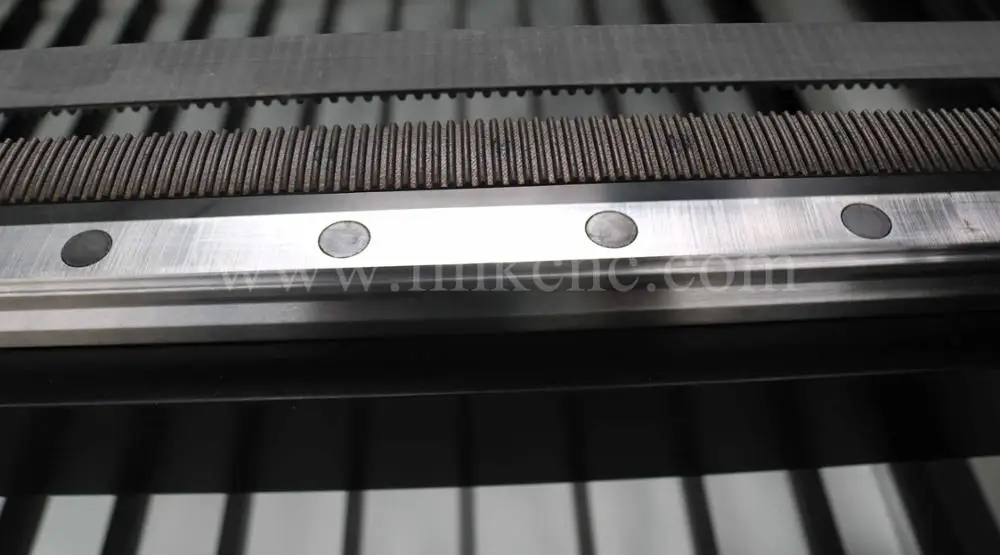

3. Square guide rails

The machine all adopts Taiwan square guide rails with high precision and speed.

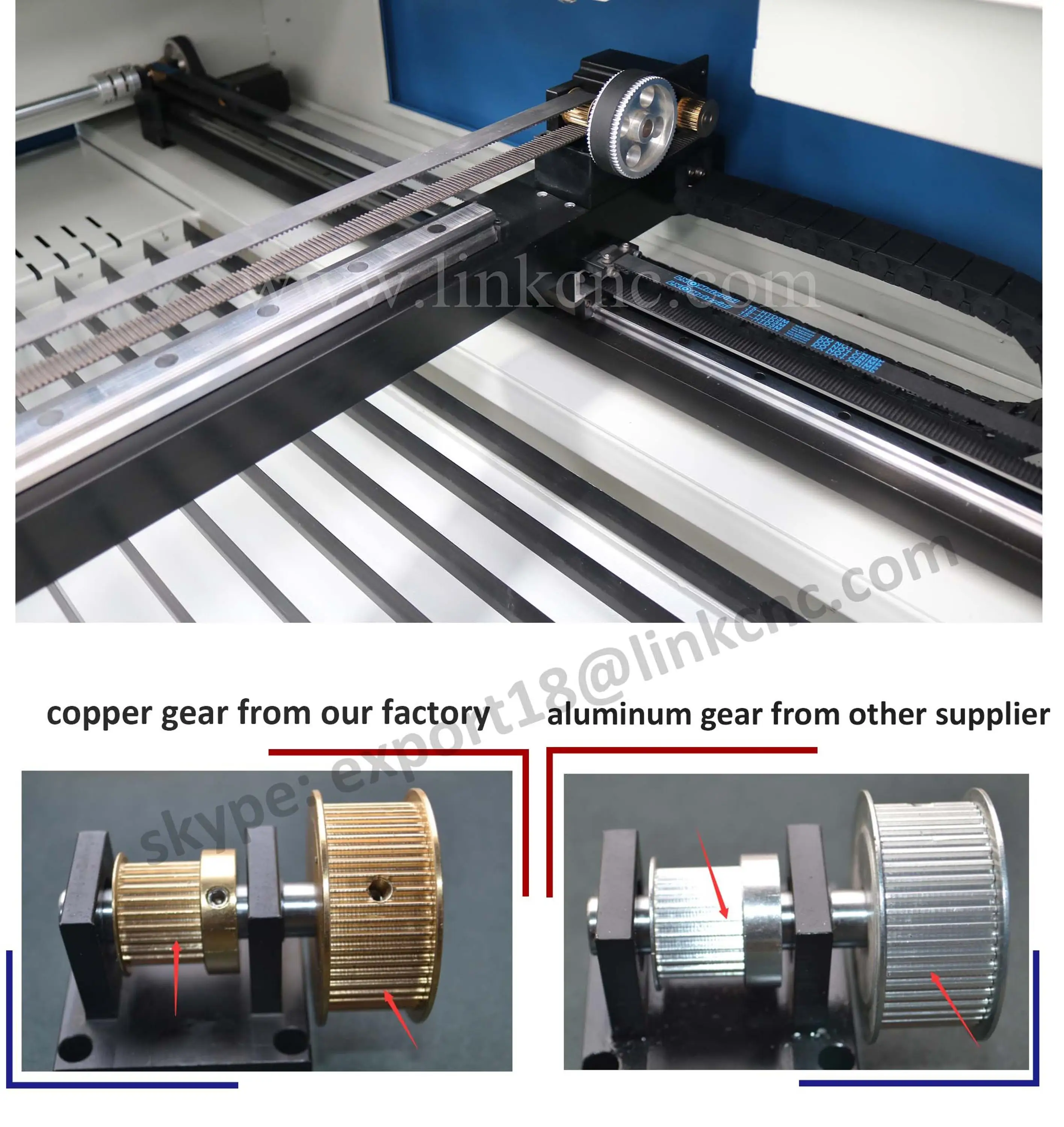

4. Belt transmission and copper gear

The belt we use is from Taiwan dongfeng brand.

The gear we use is copper gear instead of aluminum gear. Copper is wear-resistance and has a longer lifespan, which contributes to a higher cutting or engraving precision.

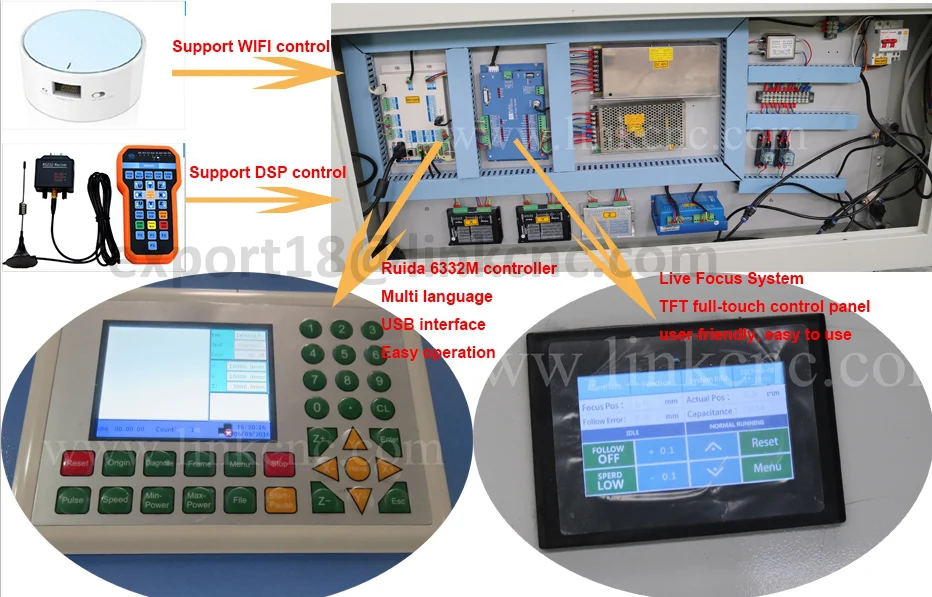

5. Ruida 6332M control system Controller and LFS-PM-T43 controller

1)Original new version Ruida 6332M control system, support phone (using WIFI) or DSP control

2) LFS-PM-T43 live focus system use for metal and non-metal mixing cutting system developed by Ruida

Company. 4.3 inch TFT Colorful, touch screen, Real time Status and date display, humanistic operational interface.

3) High speed USB data transmission interface, download speed is up to 500kb/s

4) The control panel has 12 language for optional,such as Chinese,English,French, Portuguese, Spanish,

Russian, German, Korean, Japanese and so on.

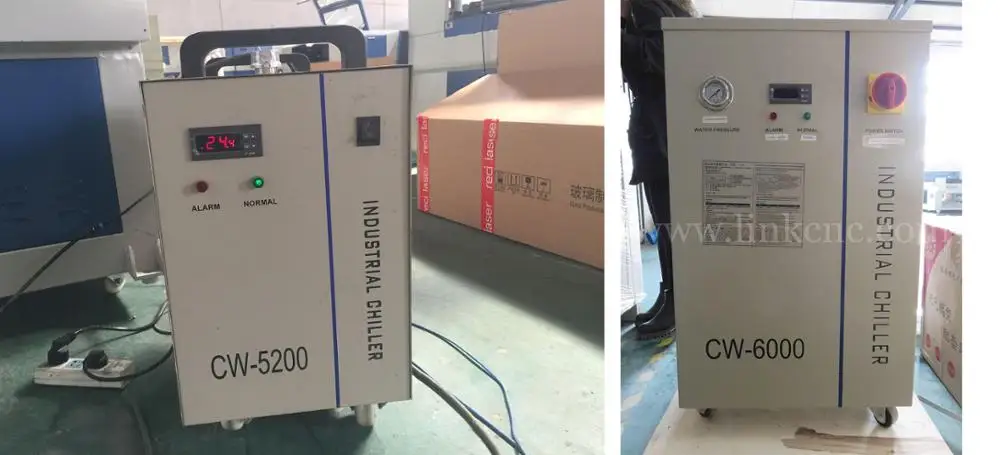

6. Water chiller CW5200

To Cool Laser tube and Longer the lifetime of Laser tube.

Supporting upgradation to CW6000 with extra payment.

7. Optioanal part

Technical parameters

Model	LXJ1390-H	LXJ1325-H	Option
Working Area	1300*900mm	1300*2500mm	According to Demands
Laser Power	Beijing RECI W2(90-100W) W4(100-130W)W6 (130-160w) W8(150-180w) Yongli 280W 300W
Laser Type	CO2 Sealed Laser Tube
Cooling Type	Water Cooling
Engraving Speed	0-60000mm/min
Cutting Speed	0-36000mm/min
Laser Output Control	0-100% Set by Software
Min. Engraving Size	Chinese: 2.0mm2.0mm, English Letter:1.0mm1.0mm
Locating Accuracy	≤+0.01mm
Controlling Software	Ruida Control System 6332M, Metal cut software, USB interface
Graphic Format Supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible Software	CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Red point	Yes
Drive System	Yako stepper motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
Power Supply	AC110V/220V+10%, 50HZ/60HZ
Working Environment	Temperature:0-45C, Humidity 5-95%(No Condensate Water)

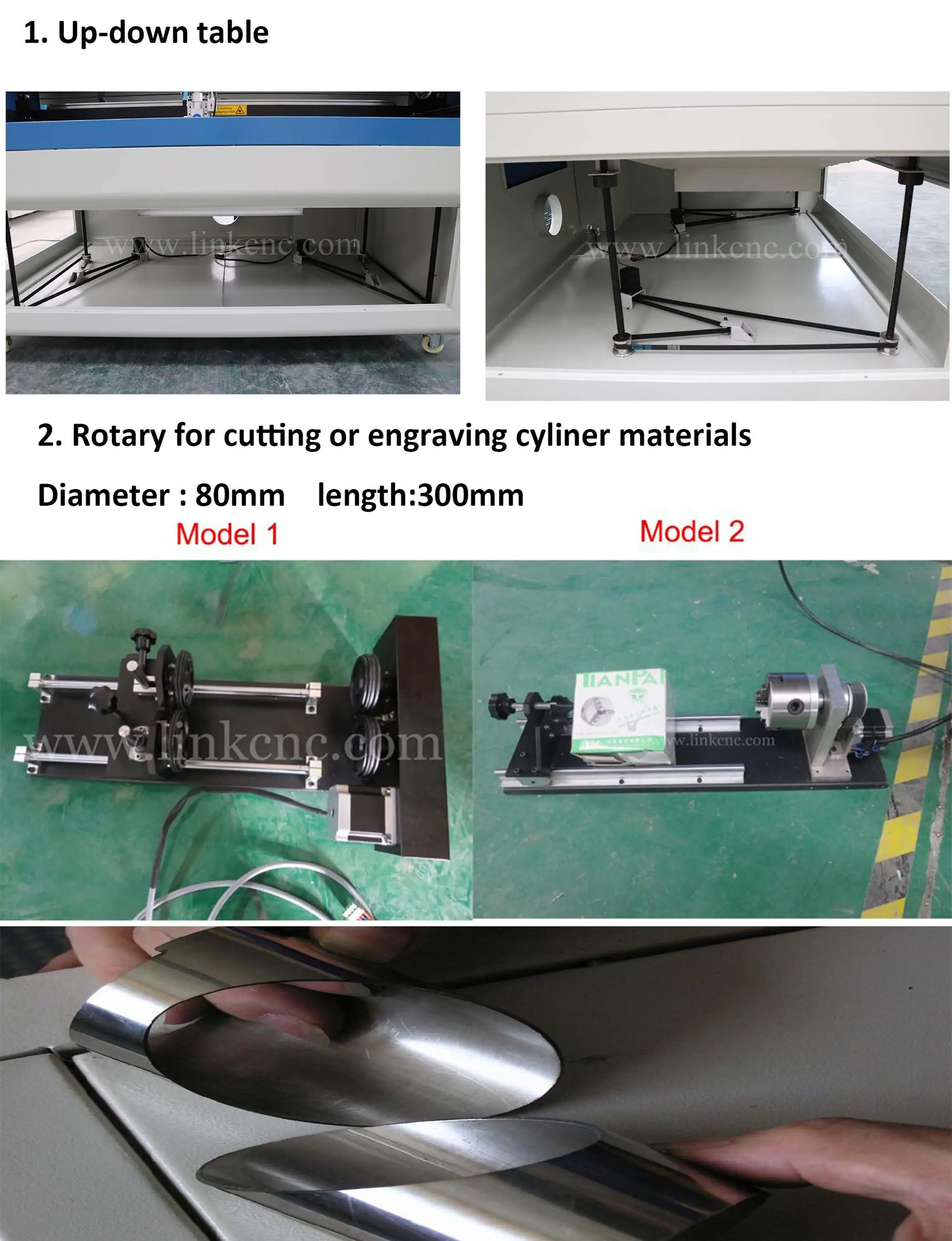

Optional parts	Rotary Up-down table

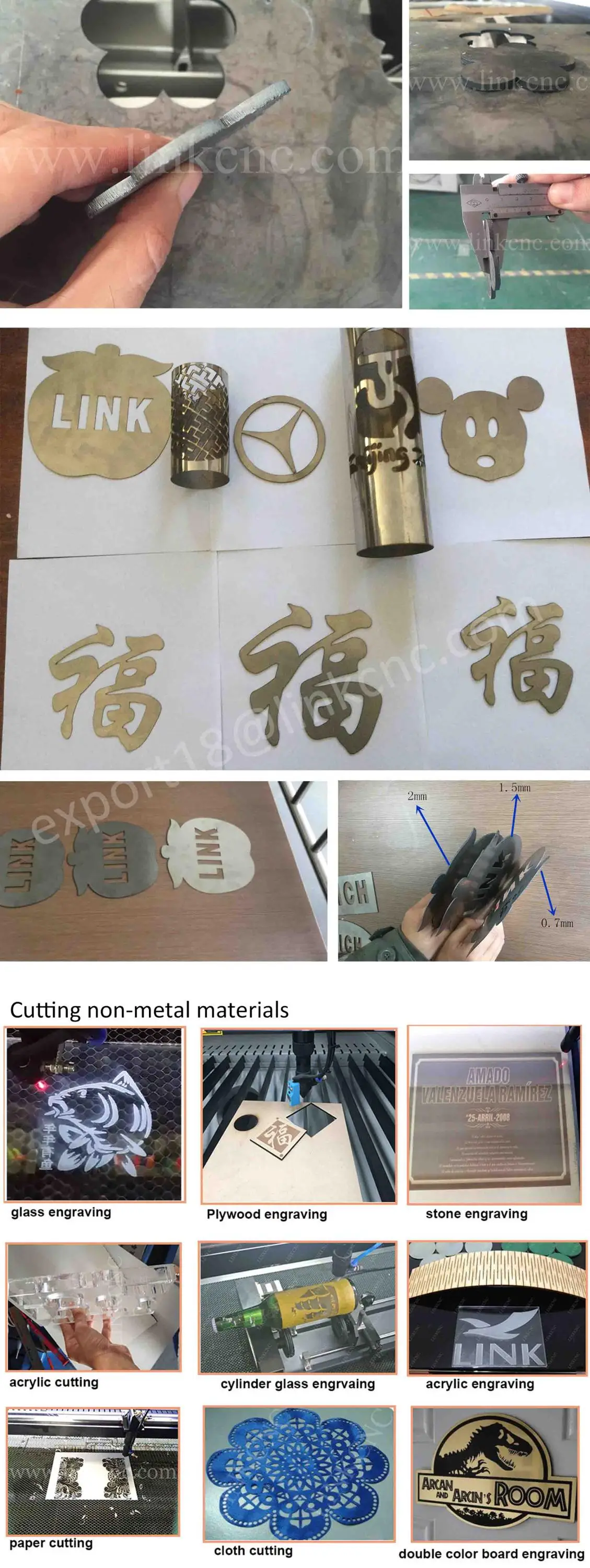

Applications

1. Applicable materials

LINK Co2 laser cutting hybrid machine proffessional for thin metal and non metal materials cutting, such as stainless steel, carbon steel, acrylic ,wood, MDF, etc.

2. Application fileds
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.

Our Services

Pre-sale

1) Professional sales team and engineer team provide professional technical Support

2 )18 hours on line service each day,you can contact us by Alibaba Trade manager,Email,Whatsapp,skype,Wechat ,Phone number,and so on.

3) Test video and Sample support

4) OEM support

5) Free consulting provided if you are not sure about the laser power.

Just please tell us what is your materials and the max cutting thickness. We will recommend you with the most suitable one.

After-sale

1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 18 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery , operation disk and manual was included. If there is also any questions, pls kindly tell me

Packing and shipping

Leadtime: 7-10 working days

Package: 209*169*130cm

The machine will be packed in standard plywood case, wrapper in soft and waterproof plastic.

Delivery time: Please tell us your city and we will help check about the time to your nearest seaport.

Terms of Payment

• TT. 30% advance payment and we can begin to proudce the machine and 70% balance payment are required before delivery.

• Alibaba trade assurance. As the thrid escrow, you payment will be protected by alibaba website.

• Other methods, such as west union, letter of credit.

Ms.Belle---Sales Director

Tel/WhatsApp/Wechat:+86-13361006651

E-mail:export06 @ linkcnc.com

Skype:lingxiangcnc6

Website:www.linkcnc.com

Website:www.lxfiberlaser.com

Ali Website:www.linknc.en.alibaba.com
